|Product Type:||Egg Tray Machine||Processing Type:||Pulp Molding Machine|
|Raw Material:||Waste Paper||Finished Products:||Egg Tray /wine Tray/yogurt Tray /fruit Tray/egg Box Ect.|
|Product Name:||Full Automatic Recycled Paper Pulp Molding Egg Tray Machine||Type:||Full Automatic Rotary Type|
pulp molding machine,
injection molding machines
Roller Type Pulp Molding Machine , Egg Tray Making Machine 3000pcs/h
1. Description for Egg tray machine
Egg tray machine equipment mainly uses waste paper,waste carton as raw materials. By smash pulp, vibrating pulp, grinding pulp and forming pulp, the forming machine adsorbs the pulp by vacuum type with some necessary chemicals. The equipment also can produce the followings: package for glass and ceramics, crafts, small machinery, electric products, toys and so on. The paper carton can replace the plastic bag and corrugated paper. And they not only have the protection, cushion performance, make less damage, improve the package figure, but also can saving cost, protect environment and can be recycled use. They are the typical product in the green package storm.
Raw material: waste old book, waste newspaper, waste carton, etc.
Drying fuel: coal, wood, diesel, natural gas, lp-gas
2. The parameters Advantage of egg tray machine production line
1 High automation, low labor cost.
2.Low production cost
3.Energy saving(by 30%-50% compared with other manufacture)
4.Water saving(complete water treatment system equipped)
5.Efficient Multilayer dryer, saving space(by 33% compared with traditional dryer)
6.Stable final product quality(same weight, same dimension,strong and good look)
3. Finished products of Egg tray machine
4. Knowledge Note of Egg tray machine
Pulping system: Pulper, Grinding Machine, Mixer, Stuff Pump, Water Pump, Control Cabinet, etc.

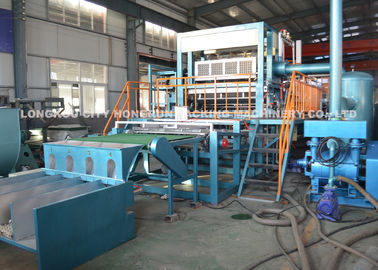

Forming System: This equipment consists of 8 forming pattern plates and 1 transfer plate. The size of each plate is 1470mm×470mm and each plate can carry 4 sets of 30pcs egg tray mould, totally 32 sets. The molding efficiency is 13-15 plates/minutes. It is equipped with automatic vacuum drainage system, automatic plate washing system, pre-drying system and automatic control cabinet.

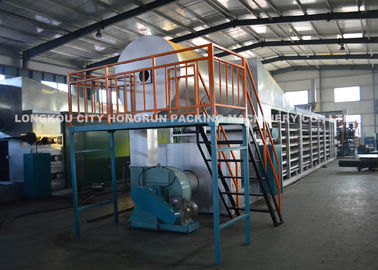

Drying System: There are 2 kinds of drying system. One is metal, the other is civil engineering. The conveyor plate can be one layer and multi-layer, direct combustion hot air circulation. Using the imported or joint venture brand burner (domestic uses the stove bar), equipped with an automatic control cabinet.
5. Other Model of Egg Tray Machine
|For 30-cell egg tray as example:|
|Model||Throughput||Drying System||Workshop Space||Rated Power|
|HRZ-2000M||2000pcs/h||Multi Layers Mental||30m*10m*6m||160KW|
|HRZ-3000M||3000pcs/h||Multi Layers Mental||30m*10m*6m||187KW|
|HRZ-4000M||4000pcs/h||Product photosMulti Layers Mental||35m*10m*6m||206KW|
|HRZ-5000M||5000pcs/h||Multi Layers Mental||36m*15m*6m||292kw|
|HRZ-6000M||6000pcs/h||Multi Layers Mental||38m*15m*6m||327KW|
|HRP-8000M||8000pcs/h||Multi Layers Mental||35m*20m*6m||470KW|
|HRD-12000M||12000pcs/h||Multi Layers Mental||45m*20m*8m||477KW|
