Product Details:
Payment & Shipping Terms:
|
Space Requirements: | 30*20m | Electric Components: | European Brand |
---|---|---|---|
Condition: | New | Weight: | 16T |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Product Type: | Fast Food Box |
Type: | Thermoforming Machine | Voltage: | 380V 50HZ 3Phase |
Material: | PS | Processing Type: | Plastic Thermoforming Machine |
Max Forming Depth: | 80mm | Production Efficiency: | 3 - 5 Seconds/mould |
Forming Pressure: | 35T | ||
High Light: | plastic food container making machine,take away food box making machine |

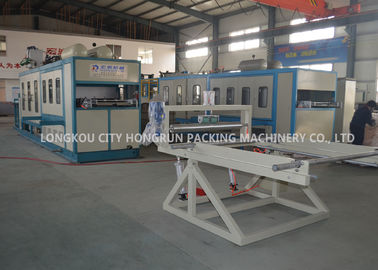

75 / 90 Type Fully Automatic PS Foam Machine / Plastic Food Container Making Machine
Brief introduction:
Full Automatic PS Fast Food Container Line developed by our company is a kind of universal functional thermoplastic forming production line combined with forming and cutting functions, vacuum forming is the main way, also can be mold press forming or comprehensive forming method, this equipment can processing diverse thermoplastic sheet materials. The whole line adapt
Full computerized PLC system,with features of advanced structure, stable character, easy operation, high capacity, large forming area, high automatic degree etc. It is mainly used for PSP forming to produce food containers, trays, bowls and cups and so on. The biggest advantage of this device is an integrated type forming, cutting, stacking in one. It is with not only energy saving but also space saving, time saving and labor saving.
The fully automatic production line includes :
1. PS foam sheet extrusion machine
2. Fully automatic forming & cutting machine
3. Crusher and recycling machine
1. PS foam sheet extrusion machine
Product introduction:
This production line adopts double-screw foam sheet extrusion technology. PS foam sheet is a kind of new-type packing material with the features of heat preservation, safety, sanitation and good plasticity. It’s mainly used to make various types of food containers, such as lunch box, dinner trays, bowls etc. by thermoforming. It’s also can be used to make advertisement board, industrial products packing and so on. It has stable performance, big capacity, high automation and yields quality products.
Machine Specifications
Item | Unit | Parameter |
Model | 75/90 | |
Applicable materials | GPPS granule(123P/525) | |
Thickness of sheet | mm | 1-3.0 |
Width of sheet | mm | 640~1080 |
Foaming rate | 12-20 | |
Weight of product | kg/m³ | 50~83 |
Output | kg/h | 80~100 |
Rated power(approximately) | KW | 120 |
Power supply | Three phase 380V/50Hz | |
External dimension | mm | 24000×4100×2800 |
Complete weight | Ton | About12 |

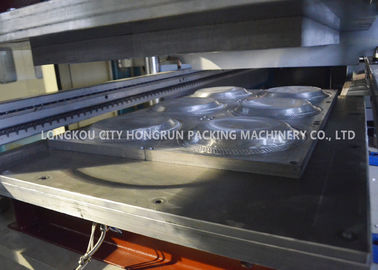

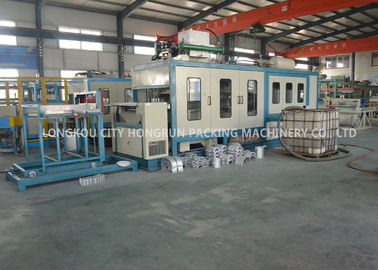

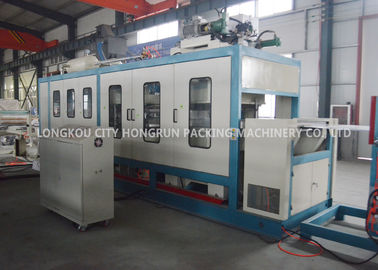

2. Fully automatic forming & cutting machine
This machine developed by combining the domestic and foreign equipment and advantages, is a set of hydraulic pneumatic servo drive for an automatic forming cutting stacking machine. The main electrical components, such as vacuum pump,PLC,made in Japan and Germany, ensure the reliability of the equipment operation, and can be used for hot forming process PS material which is used to produce different food container, such as lunch box, hamburger box, pizza box, bowl, plate, dish, etc. Forming, cutting, stacking is done in the same machine, saving labor, improving efficient, lowing labor intensity and reducing production cost.
Main technical parameters
Item | Unit | Parameter |
Model | HR-75/100 | |
Power supply | Three phase 380V/50Hz | |
Production efficiency | s/mold | 3-5 |
Installed power (approximately) | KW | 120 |
Total weight (approximately) | Ton | 12 |
Mounting size | m | 12×3×2.6 |
Compressed air capacity | m3/min | 0.4~0.7 |
Compressed air pressure | Mpa | 0.7 |
Cooling water | T/h | 1 |
3.Crusher and recycling machine
This machine is special for polystyrene. It adopts single screw, double stage plasticification, increasing compress ratio. The whole machine consists of crusher, main machine, cooling tank and granulator. It can recycle many foamed products, such as PS, XPS, EPS etc.
Main parameters
Model | 105/300 |
Screw Diameter | Φ105/300mm |
Total power | 30kw |
Power supply | three phase 380V/50Hz |
Number of heating zones | 4 |
Throughput | 120kg/h |
Applicable materials | PS foam scrap |
Fully automatic production line need 6 persons totally,
That is : 3 persons for sheet machine, 2 persons for forming machine, 1 person for recycling machine
Power consumption: actual power is 65+65+15=145KW
Water needs: you can buy a cooling tower then it is recycling water, no need to waste much water, it just can evaporate 10 KG per day in 24 hours.
Electricity: three-phase 380V 50Hz or three-phase 220V 60Hz
