Product Details:
Payment & Shipping Terms:
|
| Product Type: | Egg Tray Machine | Voltage: | 220V50HZ/380V50HZ |
|---|---|---|---|
| Condition: | New | Warranty: | 12 Months |
| Processing Type: | Pulp Molding Machine | After-sales Service Provided: | Field Installation,commissioning And Training |
| Color: | Customized Color | Finished Products: | Egg Tray /wine Tray/yogurt Tray /fruit Tray/egg Box Ect. |
| Type: | Full Automatic Rotary Type | Drying Type: | Metal Multi-layer Dryer |
| Fuel Type: | Gas Or Oil, Coal, Biomass, Electricity Etc. | ||
| High Light: | pulp egg tray making machine,pulp molding equipment |
||

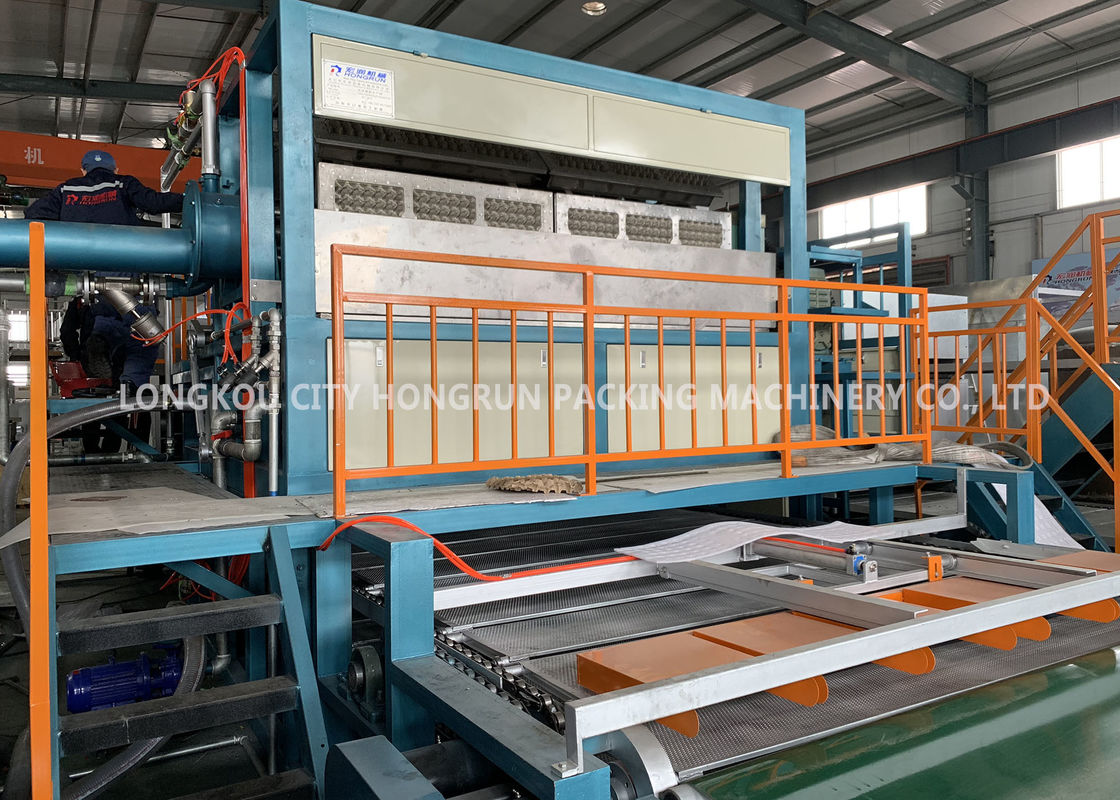

Large Capacity Automatic Paper Pulp Egg Tray Manufacturing Machine
Egg tray forming machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. After such a working procedure as transferring moulds, releasing moulds to complete paper tray production. Our forming machines selecting high quality electronic devices and pneumatic components, high performance, and long service life
Working Systems
1.Pulp Making System
Hydraulic, Pulp Pump, Pulp Screen Machine, Pulp Breaking Machine, Stirrer and so on.
2.Moulding System

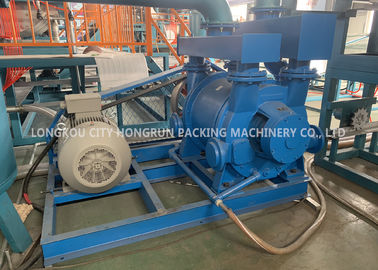

Rotary Type Molding Machine, Vacuum Pump, Air Compressor, Vacuum Tank, Water Pump and so on..

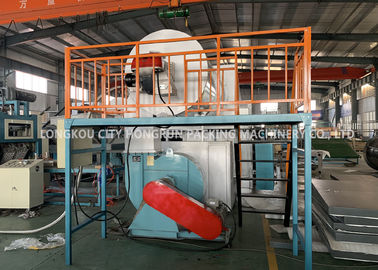

3.Drying System
Bellows, Air Blower, Mesh Belt Conveyor, Multi-layer Drying System
Parameter of Egg Tray Machine(2000 pcs/h)
Technical data
| Item | Information | Notes |
| Output Range | 6000pcs/h | 30 packed egg tray(60~80g) |
| Workshop recommendation | ≥600m2 |
Length≥40m;Width≥15m;Height≥6m; (It could be adjusted according to the user's existing workshop) |
| Type of Material | Waste paper |
Newspaper/Carton /Paper box/Books/ Corrugated paper/Kraft paper etc. |
| Material consumption | 360~480kg/h | 30 packed egg tray(60~80g) |
| Water consumption | 800-1050kg/h | 30 packed egg tray(60~80g) |
| Electricity consumption | 140-175kw/h | Full throttle operation |
|
Fuel consumption (approximately) |
LPG 55~70 kg/h |
30 packed egg tray(60~80g) Choose one from these types of fuel |
| Natural gas 85~100 m3/h | ||
| Diesel 65~80kg/h | ||
| Operator Required | 5~8 person/shift | 24hours, 3shift |
| Container requirement for Transport | 5 of 40 HQ container + 1 of 20’GP container | Whole production line |
Production flow chart
Specifications&Advantages
1.High production
2.Easy to install and operate
3.Rugged construction
4.Heat resistance
5.Competitive price
6.Green:No waste paper emission
7.Stable final product quality(Good&strong look, same weight and size)
8.Space saving & low investment
9.Best pre-sale, in-sale and after-sale service.
We produce and supply all kinds of paper pulp molding machine ( also known as egg tray machine, or paper tray machine ) , turning templates mini egg tray making machine,traditional reciprocating small egg tray forming machine , automatic rotary drum egg tray making machine, etc; For our rotary egg tray making machine, it is developed as Germany technology, and we improved the motors, driving system to get higher production capacity but more energy saving; Depending on the heat drying system can be divided into : fuel drying , gas drying , steam drying , oil drying, electric stove heating and drying and drying , which can meet the needs of different investors.
For more choice
| For 30-cell egg tray as the example: | ||||
| Model | Throughput | Drying System | Workshop Space | Rated Power |
| HR-1000S | 1000pcs/h | Single-Layer Metal | 40m*10m*6m | 88KW |
| HR-1500S | 1500pcs/h | Single-Layer Metal | 42m*10m*6m | 122KW |
| HRZ-2000M | 2000pcs/h | Multi Layers Mental | 30m*10m*6m | 160KW |
| HRZ-3000M | 3000pcs/h | Multi Layers Mental | 30m*10m*6m | 187KW |
| HRZ-4000M | 4000pcs/h | Multi Layers Mental | 35m*10m*6m | 206KW |
| HRZ-6000M | 6000pcs/h | Multi Layers Mental | 38m*15m*6m | 327KW |
| HRP-8000M | 8000pcs/h | Multi Layers Mental | 35m*20m*6m | 470KW |
| HRD-12000M | 12000pcs/h | Multi Layers Mental | 45m*20m*8m | 477KW |
| ž Exact data are subject to final contract. | ||||
