Product Details:
Payment & Shipping Terms:
|
Raw Material: | Waste Paper | Mould: | 4 Side & 4 Mould |
---|---|---|---|
Drying: | Single Mental Drying Line | Machine's Material Quality: | Best Steel |
Mould's Material: | Polyamide | Automaticity: | Full Automatic |
Colour: | Blue&white&red | Workers Needed: | 4~6 Persons |
Maintaining Method: | Simple Maintaining Per Month | Dimension(L*W*H): | 40*4*4m |
High Light: | paper egg tray making machine,egg tray manufacturing machine |

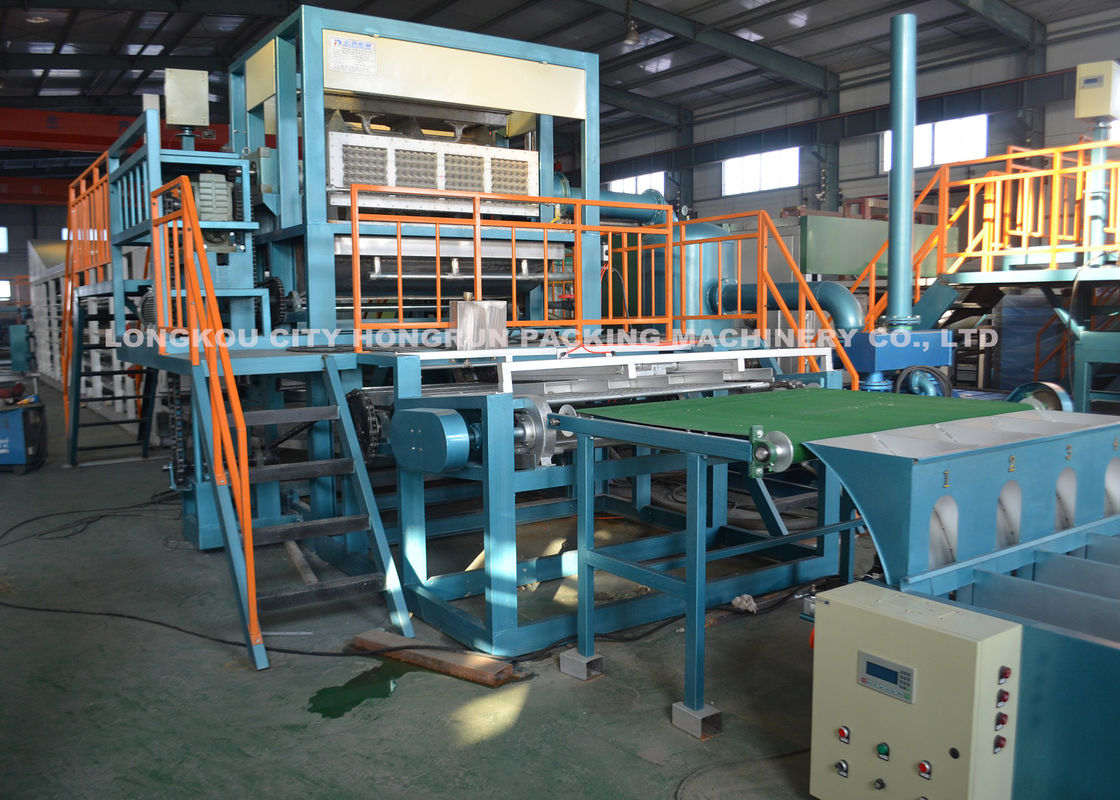

3000pcs/Hr Automatic Recycled Paper Egg Tray Making Machine
1. Description for Egg tray machine
Egg tray machine equipment mainly uses waste paper,waste carton as raw materials. By smash pulp, vibrating pulp, grinding pulp and forming pulp, the forming machine adsorbs the pulp by vacuum type with some necessary chemicals. The equipment also can produce the followings: package for glass and ceramics, crafts, small machinery, electric products, toys and so on. The paper carton can replace the plastic bag and corrugated paper. And they not only have the protection, cushion performance, make less damage, improve the package figure, but also can saving cost, protect environment and can be recycled use. They are the typical product in the green package storm.
Raw material:
Raw material: waste old book, waste newspaper, waste carton, etc.
Drying fuel: coal, wood, diesel, natural gas, lp-gas
2. The parameters Advantage of egg tray machine production line
1 High automation, low labor cost.
2.Low production cost
3.Energy saving(by 30%-50% compared with other manufacture)
4.Water saving(complete water treatment system equipped)
5.Efficient Multilayer dryer, saving space(by 33% compared with traditional dryer)
6.Stable final product quality(same weight, same dimension,strong and good look)
3. Finished products of Egg tray machine
4. Knowledge Note of Egg tray machine
1. pulp molding system:
hydraulic pulper, Pulp pump, Strengthening of self-priming pump, Agitator, Control cabinet for pulping system

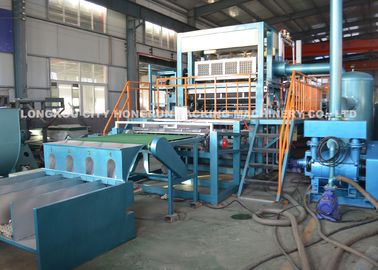

2. forming system:
Rotary forming machine, Molds, Roots vacuum pump, Screw Air Compressor, Vacuum buffer tank, Air compressor storage tank, White Water pump, High-pressure water pump, Refiner machine
3. drying system:
Conveyor, Blower, induced fan, Burner, Bellows
1.egg tray machine use waste paper as raw material, Can produce the inner tray packaging of eggs, fruit, beverage bottles mounted, glass ceramics, handicrafts, small machinery, spare parts, electronic products, toys and other products through changing the different mold.
2.this kind of machine is 4 faces rotary structure, could mass produce paper tray.
3.egg tray machine could be made fully automatice, come out saving time and labour
4.it also could make waste paper recycled.
water also could be recycled when machine working
Egg tray machine productin line usually has 4 steps
ONE: pulping systems
it is be used crushing waste paper to become paper pulp
Two:forming system
egg tray machine make paper pulp to become paper tray according to your requirment
at the same time the water is recycled into sewage pool

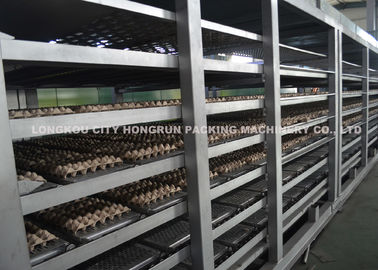

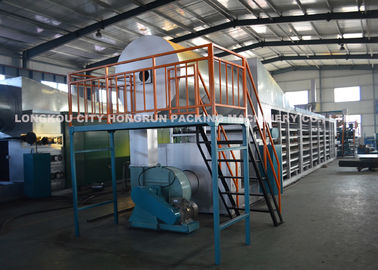

Three:Drying line
it could dryer paper tray quickly,so the paper tray could meet market demand.
so the cost of egg tray machine could be recovered quickly
it has brickkilln drying line and metal drying line
metal drying line has beautiful apparence
Energy consumption
Number |
Name |
The energy consumption |
Remark |
1 |
Waste Paper |
220-230kg |
/ |
2 |
Electricity |
160-180kw |
/ |
3 |
Water |
1.5-2.5T |
/ |
4 |
0#Diesel |
45-55kg |
Either |
Natural Gas |
55-70m³ |
||
LPG |
45-55kg |
||
5 |
HEA |
2.0-2.5kg |
Soiled Content |
The quantity of heat energy |
1000 kilocalorie Diesel |
calculate energy consumption using this data |
|
8000kilocalorie Natural Gas |
|||
20000kilocalorie LPG |
1.What materials can be used?
Office waste paper, magazines, waste cartons, all kinds of waste paper and the tail rotor
2.What kings of fuel in the drying process?
Diesel, gas, liquefied petroleum gas, coal, electricity and rice husk
3.What is the site requirement?
Different working line need different site,and the higher the yield, the bigger the area.
4.What the products can the machine produce?
The egg tray machine can produce egg tray,egg carton,fruit tray,glass tray and so on. We can also design factory packing product mould according to your need.
Pre-sales services
* any concerns of our machine by email/phone will be replied ASAP within 24 hours
* according to the customers’ requirements and circumstance to make the best egg tray production line design
* cost/benefit analysis
* to support factory layout
* desigh and make egg tray sample (charge, but if you ordering can offset the purchase price)
In the sale of services
* we are in charge of installing,debugging and training
* technical guidance of frequently asked questions
After-sales service
* one year guarantee for whole machine except of quick-wear part
* 24 hours technical support by email/phone
* calling, network or door-to-door service
* use friendly English software, user manual and detailed Videos/CD
Other Model of Egg Tray Machine
For 30-cell egg tray as example: | ||||
Model | Throughput | Drying System | Workshop Space | Rated Power |
HR-1000S | 1000pcs/h | Nature drying | 20m*10m*4m | 47KW |
HR-1500S | 1500pcs/h | Nature drying | 20m*10m*4m | 59KW |
HRZ-2000M | 2000pcs/h | Multi Layers Mental | 30m*10m*6m | 160KW |
HRZ-3000M | 3000pcs/h | Multi Layers Mental | 30m*10m*6m | 187KW |
HRZ-4000M | 4000pcs/h | Product photosMulti Layers Mental | 35m*10m*6m | 206KW |
HRZ-5000M | 5000pcs/h | Multi Layers Mental | 36m*15m*6m | 292kw |
HRZ-6000M | 6000pcs/h | Multi Layers Mental | 38m*15m*6m | 327KW |
HRP-8000M | 8000pcs/h | Multi Layers Mental | 35m*20m*6m | 470KW |
HRD-12000M | 12000pcs/h | Multi Layers Mental | 45m*20m*8m | 477KW |
|
