30 ,18 ,12 , 6 Egg Tray Production Line / Paper Pulp Molding Machinery

30 ,18 ,12 , 6 Egg Tray Production Line / Paper Pulp Molding Machinery
30 ,18 ,12 , 6 Egg Tray Production Line / Paper Pulp Molding Machinery 30 ,18 ,12 , 6 Egg Tray Production Line / Paper Pulp Molding Machinery 30 ,18 ,12 , 6 Egg Tray Production Line / Paper Pulp Molding Machinery

Large Image :  30 ,18 ,12 , 6 Egg Tray Production Line / Paper Pulp Molding Machinery

Product Details:

Place of Origin: CHINA
Brand Name: HONGRUN
Certification: ISO9001, CE, SGS, BV, TUV
Shaping machine type: Rotary type
Raw material: recycled paper
Fuel type: natural gas/diesel oil/coal
Warranty: ONE YEAR

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Standard Export Packaging
Delivery Time: 90days
Payment Terms: T/T, L/C
Supply Ability: 100SETS PER YEAR
 Quality Guarantee: one year
Detailed Product Description
Condition: New Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine Warranty: One Year
Weight: 30t After-sales Service Provided: Engineers Available To Service Machinery Overseas
Raw Material: Waste Paper,Carton And Newspaper,kind Of Waste Paper/carton Name: Pulp Egg Tray Machine
Product Name: Egg Tray Production Line Finished Products: Egg Tray Egg Carton,Cup Tray,wine Tray,Fruit Tray
Type: Rotary Drum Color: Customized Color
High Light:

egg tray forming machine

,

egg tray equipment





Egg Tray Production , Paper Pulp Molding Machinery 30,18,12,6 eggs





Quick Details


Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong China (Mainland)
Voltage: 380V
Power(W): 104KW
Dimension(L*W*H): 30*4*4M
Weight: 30T
Warranty: ONE YEAR
Shaping machine type: Roller type
Raw material: Recycled paper
Fuel type: Natural gas/Diesel oil/Coal





Product Description:



Pulp Moulding Machine is known as egg tray line for using massively in produce egg tray.

     Pulp Moulding Machine, which uses waste paper, cardboard, leftover material of paper mill, by hydraulic pulper, mix making a certain dense pulp, and pulp is absorbed by vacuum of special metal moulding to become wet products, through drying , and shaping to become finished products.

    Pulp Moulding Line processing makes use of recycled water and does not lead to water or air pollution. Finished packaging products can be recycled after being used in storage, transport, and sales. After shredding, they are easy to be decomposed as paper, even if discarded into the natural environment.

    Automatic pulp molding production lines can be mass production of various food container, egg tray, lunch boxes and so on.

    The major equipment of the machine are three parts include: Pulp Making System, Molding System, Drying system and packing system.





Pulp Making System



    Hydraulic, Pulp Pump, Pulp Screen Machine, Pulp Breaking Machine, Stirrer and so on.





Moulding System



   Rotary Type Molding Machine, Vacuum Pump, Air Compressor, Vacuum Tank, Water Pump and so on..





Drying System



  Bellows, Air Blower, Conveyer





Packaging Machine



  High quality of pulp molding machine for paper trays could design according to the customer’ requirement.




Flow Chart



30 ,18 ,12 , 6 Egg Tray Production Line / Paper Pulp Molding Machinery 0



For pulp molded 30-cell egg trays : first the worker will weight the raw material and put them into the conveyor. Then the pulping ,forming, drying and stacking will be finished automatically. After drying, the finished products will be packed by workers.A hot pressing section should be added in the production of pulp molded egg box/carton(6-cell,10-cell,12-cell,6+6-cell,15-cell),fruit tray and cup carrier after drying because of shrinking.

The egg box/carton can be labelled or printed   after hot pressing. These processes could be finsihed manually or automatically.



Technology Parameters

Model

3000-6000

Forming width

410-710MM(460-760MM materials)

Forming length

600-1220MM

Forming height

200MM

Thickiness of materials

0.2-1.5MM

Production power

220-500times/hour(according to products)

power

380Vs/220Vs/50Hzs(Three mutually four lines)

Furnace power

18-35KW

Required to install air pump

20HP

Mechanistic Dimensions

L6800*W1600*H2650MM

Net weigh

3000KG

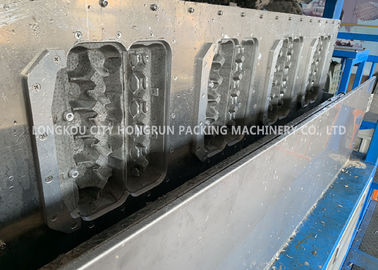

30 ,18 ,12 , 6 Egg Tray Production Line / Paper Pulp Molding Machinery 1

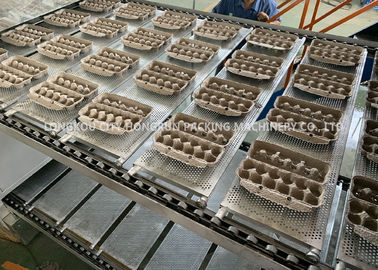

30 ,18 ,12 , 6 Egg Tray Production Line / Paper Pulp Molding Machinery 2

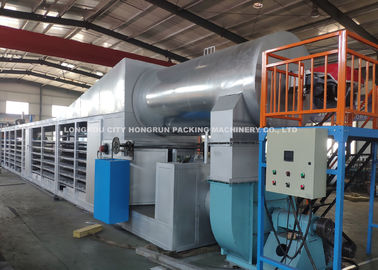

30 ,18 ,12 , 6 Egg Tray Production Line / Paper Pulp Molding Machinery 3
