|Raw Material:||Waste Paper||Additives:||Waster-proof Agent, Strength Agent|
|Dryer:||Automatic Gas Or Diesel Oven||Automation:||Full Automatic|
paper pulp molding machine,
egg tray manufacturing machine

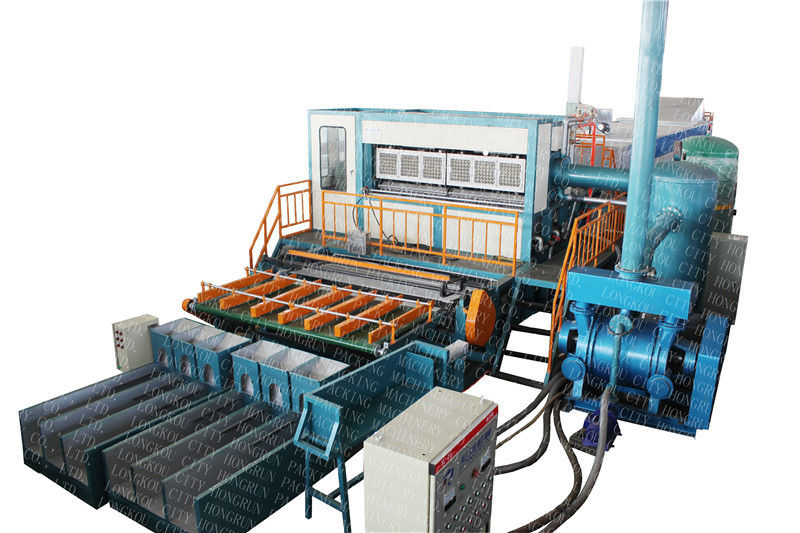

8 Faces Rotary Paper Egg Tray Making Machine 6*8 Big Capacity
The egg tray plant is used for producing different kinds of paper egg trays, egg cartons, apple trays etc.
The machine configured with pulp making equipment, egg tray forming equipment and drying equipment etc. The whole production process is automatically.
The egg tray plant models are as following:
Reciprocating type: small capacity
Rotary type: medium capacity
Double-roller type: big capacity
Different egg tray plant model has different function.
Egg tray plant overview:
A Pulping system
B Forming system
C Drying system
D Stacking & Packaging system
E Vacuum system
F Air compressor system
G High pressure water system
|For 30-cell egg tray as example:|
|Model||Throughput||Drying System||Workshop Space||Rated Power|
|HRZ-2000M||2000pcs/h||Multi Layers Mental||30m*10m*6m||160KW|
|HRZ-3000M||3000pcs/h||Multi Layers Mental||30m*10m*6m||187KW|
|HRZ-4000M||4000pcs/h||Multi Layers Mental||35m*10m*6m||206KW|
|HRZ-6000M||6000pcs/h||Multi Layers Mental||38m*15m*6m||327KW|
|HRP-8000M||8000pcs/h||Multi Layers Mental||35m*20m*6m||470KW|
|HRD-12000M||12000pcs/h||Multi Layers Mental||45m*20m*8m||477KW|
| Exact data are subject to final contract.|
Paper pulp molding product is a kind of packaging which is made from waste paper and pulp cardboard by appropriative equipment and unique technics.
Firstly, paper pulp molding products are only applied to the transport packaging of farm produce such as egg ,fruit and so on. But gradually, the range of application and research is enlarged to the safeguard packaging of industrial product, such like electronic product, household appliances, apparatus, glassware, crockery, mini type machine etc..
Paper pulp molding mostly use cheap waste paper as raw material to make not only valuable but also environmentally friendly products. It can greatly cut down the use of plastic, and reduce environmental pollution. What's more, it also discovered a new way to recycle waste paper at the same time.
1. It can make all kinds of products of various specifications and complicated shapes. In this case, it can meet the demand of any kind of packaging. It also convenient for seclusion and orientation.
2. The pulp is gentle and soft, but the holistic structure has enough intension, which makes it have good protecting and amortization performance
3. Perfect ventilated and humidity absorbing performance is good for keeping food fresh. What’s more, if you require that the products should be waterproof, we can put some certain waterproof additive into the pulp material.
4. If necessary, the product can also be made have the performance of flame retardancy and static retardancy.
5. We can use the waste as the raw material, and the product can also be recycled, which is good for environmental protection.
6. There are many advantages comparing to EPS, EPE, EPP package:
A. The raw materials of our product are waste paper and all kinds of fiber materials, which are easy to be collected, good for environment and recycle, and administer to the export of product.
B. The product can be widely used, so now, the foam which is widely used for the packaging material is replaced by paper molded pulp products. Moreover, it can be piled up, which can save more space, therefore, the expanses for transport and stock can be reduced.
C. The static retardancy of the product are good for protect electronic products and household appliance.
D. The product has good ventilation so that the food can be avoided from decay.
E. At present, the cost of the paper pulp molding products is much cheaper than that of foam.

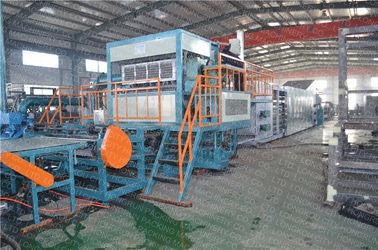

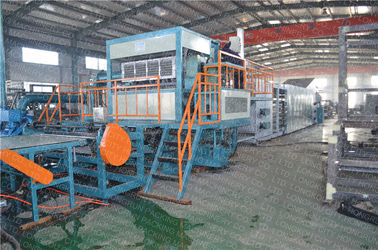

HRZ-6000M egg tray machine is 45°rotary intermittent motion of 8 faces rotary machine, this type of machine is the leading technology product in China.
The pulp suction pipe and blow pipe of 8 working faces are connected with molding frame& mold, and then connect the total pipeline by gas distribution device. The forming and transfer mould frame are drive by adjustable-speed motor and reducer through slot wheel intermittent mechanism driving part, the transfer mould drive robot arm to do 45°reciprocating motion by reducer.
This egg tray machine can produce 6000pcs/hour egg trays, this machine can produce egg tray & fruit tray& cup tray & industrial products packaging etc, the capacity according to the size of finished product.
1. The Forming Machine Frame:
The frame of forming machine is made by high specification stainless steel; it has high strength, corrosion resistance, and resist to mechanical fatigue.
2. Parts Design:
The main parts are all processed by lathe elaborately, it can improve the fineness of equipment part effectively and each part of cooperate gap. All the equipments are the best quality in the market at present, superior performance and wear well.
3 Drying Line:
HR - 5000 drying line adopts single layer or six layers metal drying line.
Customers can inspect and learn production process in our factory, learn about the structure, running and operation of production line, we can send overseas engineers for installing and debugging according to customers’ request. And we have professional ESQ for customers to solve.
1.What materials can be used?
Office waste paper, magazines, waste cartons, all kinds of waste paper and the tail rotor
2.What kings of fuel in the drying process?
Diesel, gas, liquefied petroleum gas, coal, electricity and rice husk
3.What is the site requirement?
Different working line need different site,and the higher the yield, the bigger the area.
4.What the products can the machine produce?

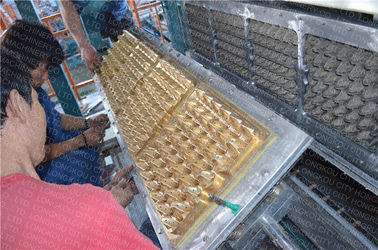

The egg tray machine can produce egg tray,egg carton,fruit tray,glass tray and so on. We can also design factory packing product mould according to your need.
* any concerns of our machine by email/phone will be replied ASAP within 24 hours
* according to the customers’ requirements and circumstance to make the best egg tray production line design
* cost/benefit analysis
* to support factory layout
* desigh and make egg tray sample (charge, but if you ordering can offset the purchase price)
In the sale of services
* we are in charge of installing,debugging and training
* technical guidance of frequently asked questions
* one year guarantee for whole machine except of quick-wear part
* 24 hours technical support by email/phone
* calling, network or door-to-door service
* use friendly English software, user manual and detailed Videos/CD
