|Product Type:||Egg Tray Machine||Processing Type:||Pulp Molding Machine|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas||Production Capacity:||5000pcs/hour|
|Color:||As Per Demand||Finished Products:||Egg Tray /wine Tray/yogurt Tray /fruit Tray/egg Box Ect.|
|Type:||Full Automatic Rotary Type||Raw Material:||Recycled Paper|
pulp egg tray making machine,
pulp molding machine

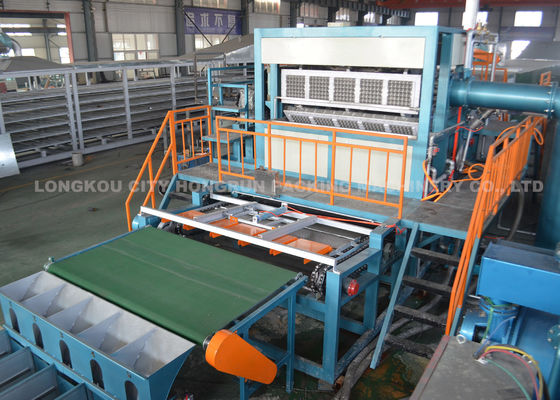

Apple Tray Making Machine Paper Pulp Egg Tray Molding Machine 5000 Pieces / H
Egg tray machine now is widely used in pulp molding products manufacturing, the raw material is waste paper like Newspaper, Carton, Paper box, Books, Corrugated paper etc.
The raw material goes into the pulping system, mixing with water, become the paper pulp.
And then the paper pulp will be sent into the egg tray forming machine by a pump, the egg tray forming machine will produce the
egg trays using vacuum forming principle.
The egg tray that coming out from the forming machine is wet, so the forming system needs to be equipped with the drying system. This egg tray drying system using different fuel to dry the egg trays automatically, as for the fuel choices, there is like Natural gas/LNG/LPG, diesel, heavy oil, wood, coal, electric.
After drying, the egg trays can be piled up by automatic stacker, and then the workers can package the egg trays by plastic bags.
|Output Range||5000pcs/h||30 packed egg tray(60~80g)|
(It could be adjusted according to the user's existing workshop)
|Type of Material||Waste paper||
Newspaper/Carton /Paper box/Books/
Corrugated paper/Kraft paper etc.
|Material consumption||300~400kg/h||30 packed egg tray(60~80g)|
|Water consumption||660-880kg/h||30 packed egg tray(60~80g)|
|Electricity consumption||120-150 kw/h||Full throttle operation|
|LPG 50~70 kg/h||
30 packed egg tray(60~80g)
Choose one from these types of fuel
|Natural gas 80~95 m3/h|
|Operator Required||4~8 person/shift||24hours, 3shift|
|Container requirement for Transport||5 of 40 HQ container||Whole production line|
Production flow chart
1. with automatic computer software
2. With a water pool and a pulp pool;
3. All installation work will be finished before shippment
4. Some parts are Germany- made or from other famous suppliers
5.our machine can produce different trays at same time bu using different moulds
6. Beside the egg tray, our machine can make industrial package.
7. top quality. Until now, we have never received any complaint for quality problem
A:We are able to send two engineers to the buyer's factory, they are responsible for the instruction of installing machine and training the operator until the machine working normally. All the expenses out of china (including the round-trip air tickets, foods and hotel, salary 70usd/day/enginner) should be borne by the buyer. The buyer should prepare one translator for our engineers to communication.
B: Forming machine warranty time: 12 month.(not including the mould and quick-wear parts) The seller will provide below quick-wear parts for free to buyer:
Proximity switch --10 units.
Solenoid valve –1 unit (10 leather packing
Mold core –10 boxe
C: Within 3 months, if Vacuum pump, motors or Air compressor was broken because of the quality of machine itself, the buyer should send the problem part back to seller , the seller will provide the new one immediately. But as for the wrong operation of the workers, the seller will not be responsible for them.
D: After guarantee period the Seller will send engineer on the Buyer's request. All the expenses of this engineer will be borne by the Buyer's company, and service charge will be negotiated by the Buyer and the Seller.
