|Product Type:||Egg Tray Machine||Voltage:||220V/380V|
|Processing Type:||Pulp Molding Machine||Production Capacity:||2000 Pcs/h|
|Raw Material:||Waste Paper,old Carton,Carton And Newspaper||After-sales Service Provided:||Engineers Available To Service Machinery Overseas|
|Labor Force:||4-6 People||Type:||Full Automatic Rotary Type|
|Application:||Egg Tray,bottle Tray,fruit Tray,Packing Industry||Color:||As You Required|
|Product Name:||Waste Carton Paper Pulp Recycled Moulding Egg Tray Making Machine|
paper egg tray making machine,
paper pulp molding machine

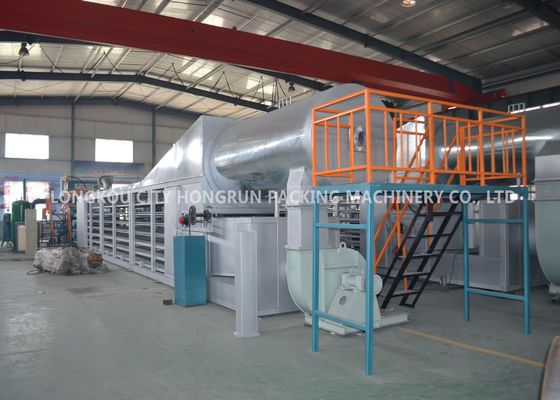

Automatic Egg Tray Machine , Paper Recycling Egg Tray Making Machine
Pulp Moulding Machine is known as egg tray line for using massively in produce egg tray.
Pulp Moulding Machine, which uses waste paper, cardboard, leftover material of paper mill, by hydraulic pulper, mix making a certain dense pulp, and pulp is absorbed by vacuum of special metal moulding to become wet products, through drying , and shaping to become finished products.
Pulp Moulding Line processing makes use of recycled water and does not lead to water or air pollution. Finished packaging products can be recycled after being used in storage, transport, and sales. After shredding, they are easy to be decomposed as paper, even if discarded into the natural environment.
Automatic pulp molding production lines can be mass production of various food container, egg tray, lunch boxes and so on.
The major equipment of the machine are three parts include: Pulp Making System, Molding System, Drying system and packing system.
Pulp Making System
Hydraulic, Pulp Pump, Pulp Screen Machine, Pulp Breaking Machine, Stirrer and so on.
Rotary Type Molding Machine, Vacuum Pump, Air Compressor, Vacuum Tank, Water Pump and so on..
Bellows, Air Blower, Conveyer
High quality of pulp molding machine for paper trays could design according to the customer’ requirement.
For pulp molded 30-cell egg trays : first the worker will weight the raw material and put them into the conveyor. Then the pulping ,forming, drying and stacking will be finished automatically. After drying, the finished products will be packed by workers.A hot pressing section should be added in the production of pulp molded egg box/carton(6-cell,10-cell,12-cell,6+6-cell,15-cell),fruit tray and cup carrier after drying because of shrinking.
The egg box/carton can be labelled or printed after hot pressing. These processes could be finsihed manually or automatically.
|Output Range||2000pcs/h||30 packed egg tray(60~80g)|
(It could be adjusted according to the user's existing workshop)
|Type of Material||Waste paper||
Newspaper/Carton /Paper box/Books/
Corrugated paper etc.
|Material consumption||120~160kg/h||30 packed egg tray(60~80g)|
|Water consumption||265-350kg/h||30 packed egg tray(60~80g)|
|Electricity consumption||70-90kw||Full throttle operation|
|LPG 30~40 kg/h||Choose one from the three types of fuel|
|Natural gas 35~50 m3/h|
|Diesel 30~40 kg/h|
|Operator Required||4~6 people/shift||24hours, 3shift|
|Container requirement for Transport||
2 of 40’HQ container +
1 of 20’GP container
|Whole production line|
