Automatic Electronic Products Paper Pulp Egg Tray Machine With Drying Line
Paper pulp molding/moulding product has good intensity and elasticity ,and also is ventilated,anti static,which can reduce the transport cost .What is more ,it can be recycled ,which is good for environmental protection .So that ,foam packaging is replaced by the paper pulp molding/moulding product at present .And the application range has spreaded to many fields such as :egg tray ,egg carton ,fruit tray and industrial packaging of glassware , apparatus ,tool , electrical appliances , accessory , vegetable portion trays, fruit portion trays, strawberry punnets , kidney trays, wine packs, can trays, seed cubes,coffee tray,bottle tray,seeds tray,paper shoe tree or paper shoe filler and so on . The paper pulp molding/moulding product factory belongs to our company can produce all kinds of packaging product according to the demand of the customer.
1.Introduction of egg tray dryer machine

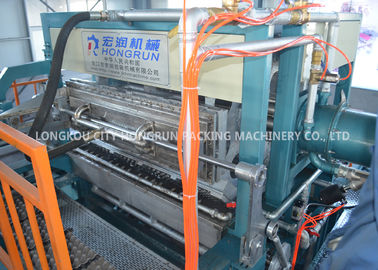

* The zt4*8 Egg tray machine is 8-sided automatic rotary molding machine, has 32 chunks molds.
* The equipment production capacities are 3000-4000 pieces/hour.
* The equipment needs 5-7 workers.
* It's paper consumption is 260-360kg per hour.
* The 4*8 egg tray machine can produce egg tray,egg box, fruit tray,coffee tray, and customized.
* The moulds material can use plastic or aluminum depend on your requirements

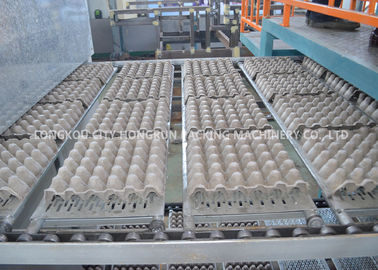

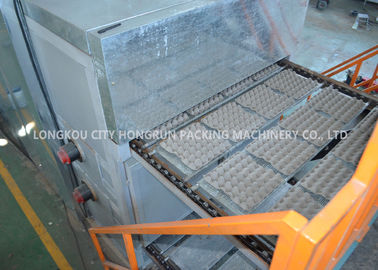

* The drying equipment use natural drying & brick bulding conveyor dryer.
|Model||HRZ-4000M Egg tray making machine|
|Type||8-sidesrotary forming machine, 4 molds per side|

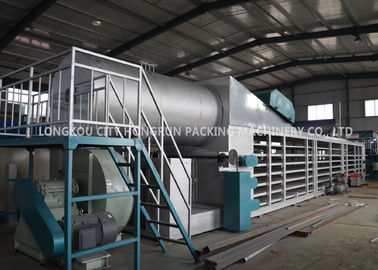

|Dryer||Metal multi-layer dryer|
|Voltage||220v/380v/440v, Or as required|
|Fuel consumption||Coal 187kg/h, Gas 80-90l/h, Diesel 66-76kg/h|
|Production line workplant||40m(l)*15m(w)|
|Delivery time||75 days|
2.Production line of egg tray dryer machine
The whole production line include pulp making system , egg tray molding system , egg tray drying system , egg tray packing system
Pulp molding system:
Hydraulic pulper, High-frequency vibration sieve frame, Pulp pump, Strengthening of self priming pump, Agitator.
Tiltering forming machine, Molds, Vacuum pump, Screw Air Compressor, Vacuum buffer tank, Air compressor storage tank, White Water pump, High pressure water pump, Refiner machine, Power cabinet of forming system.
Conveyor, Blower, Induced fan, Burner, Bellows, etc.
Note: The country with very high-temperature can choose the natural drying method, no need for the drying system. This way can reduce the cost.
Packing system: baling machine.
Production flow chart
