|Condition:||New||Processing Type:||Pulp Molding Machine|
|Product Type:||Egg Tray Machine||Warranty:||12 Months|
|Voltage:||220V/380V||After-sales Service Provided:||Engineers Available To Service Machinery Overseas|
|Color:||Customized Color||Raw Material:||Waste Paper,Newspaper,Books Etc.,Carton|
|Finished Products:||Egg Tray Egg Carton,fruit Tray,coffee Cup Tray,wine Tray|
egg carton making machine,
egg box making machine

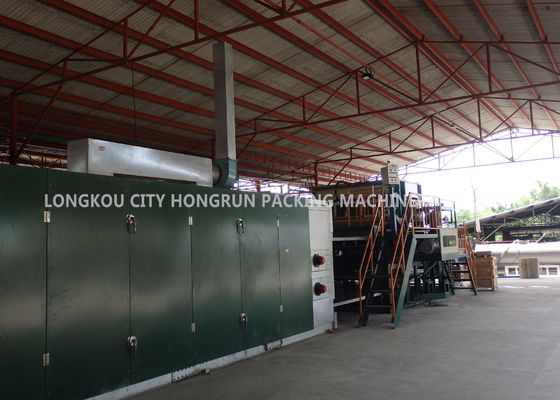

High Speed Automatic Paper Egg Tray Caron Molding Machine With Drying System
Pulp Moulding Machine is known as egg tray line for using massively in produce egg tray.
Pulp Moulding Machine, which uses waste paper, cardboard, leftover material of paper mill, by hydraulic pulper, mix making a certain dense pulp, and pulp is absorbed by vacuum of special metal moulding to become wet products, through drying , and shaping to become finished products.
Pulp Moulding Line processing makes use of recycled water and does not lead to water or air pollution. Finished packaging products can be recycled after being used in storage, transport, and sales. After shredding, they are easy to be decomposed as paper, even if discarded into the natural environment.
Working principle of egg tray machine:
Water paper and water added into the pulper, then delivered to the slurry storage tank, using blender to stirring pulp uniform and delivered to the slurry tank, stirring the pulp to a certain concentration delivered to the molding machine, producing the egg tray, then transport to the drying hole by conveyor belt, after the egg tray drying, finally closed care and package it.
The major equipment of the machine are three parts include: Pulp Making System, Molding System, Drying system and packing system.
1. Pulp molding system: Hydraulic pulper, High-frequency vibration sieve frame, Pulp pump, Strengthening of self-priming pump, Agitator, Control cabinet of pulping system
2. Forming system: Rotary forming machine, Molds, Vacuum pump, Screw Air Compressor, Vacuum buffer tank, Air compressor storage tank, White Water pump, High-pressure water pump, Refiner machine, Power cabinet of forming system
3. Drying system: Conveyor, Blower, Induced fan, Burner, Bellows, etc
4. Packing system: Packing machine
|Output Range||5000pcs/h||30 packed egg tray(60~80g)|
(It could be adjusted according to the user's existing workshop)
|Type of Material||Waste paper||
Newspaper/Carton /Paper box/Books/
Corrugated paper/Kraft paper etc.
|Material consumption||300~400kg/h||30 packed egg tray(60~80g)|
|Water consumption||660-880kg/h||30 packed egg tray(60~80g)|
|Electricity consumption||120-150 kw/h||Full throttle operation|
|LPG 50~70 kg/h||
30 packed egg tray(60~80g)
Choose one from these types of fuel
|Natural gas 80~95 m3/h|
|Operator Required||4~8 person/shift||24hours, 3shift|
|Container requirement for Transport||5 of 40 HQ container||Whole production line|
