Product Details:
Payment & Shipping Terms:
|
Power Supply: | Three Phase 380v/50Hz | Warranty: | One Year |
---|---|---|---|
Condition: | New | Type: | Full Automatic Rotary Type |
Processing Type: | Pulp Molding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Raw Material: | Waste Paper | Product Name: | Waste Carton Paper Pulp Recycled Moulding Egg Tray Making Machine |
Product Type: | Egg Tray Machine | ||
High Light: | pulp molding machine,pulp molding equipment |
Egg Tray Machine (pulp moulding machine) consume used waste paper as raw material and produce different kinds of paper tray according to your requirement, such as egg tray/dishes ,egg carton/box,fruit tray,industrial package tray,seeding tray ,win tray ,shoe support and small products packages ,etc. The different final products are decided by your market choice.
Main equipment
1. Pulp molding system: Hydraulic pulper, High-frequency vibration sieve frame, Pulp pump, Strengthening of self-priming pump, Agitator, Control cabinet of pulping system

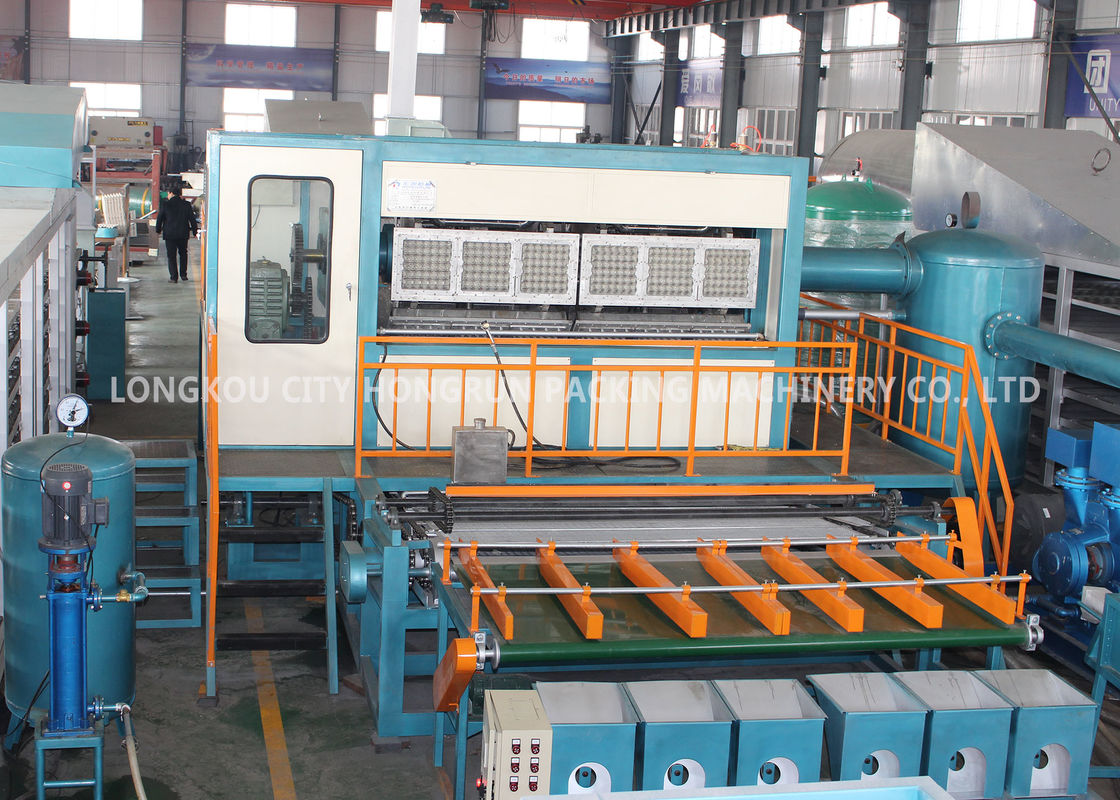

2. Forming system: Rotary forming machine, Molds, Vacuum pump, Screw Air Compressor, Vacuum buffer tank, Air compressor storage tank, White Water pump, High-pressure water pump, Refiner machine, Power cabinet of forming system

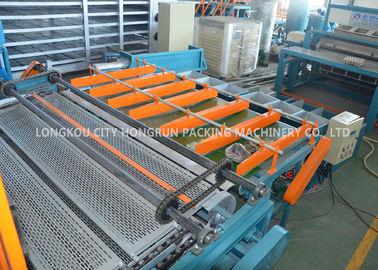

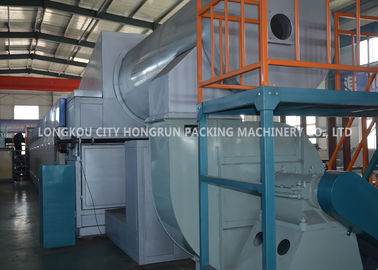

3. Drying system: Conveyor, Blower, Induced fan, Burner, Bellows, etc
4. Packing system: Packing machine
Technical parameter
Item | Information | Notes |
Output Range | 6000pcs/h | 30 packed egg tray(60~80g) |
Workshop recommendation | ≥600m2 |
Length≥40m;Width≥15m;Height≥6m; (It could be adjusted according to the user's existing workshop) |
Type of Material | Waste paper |
Newspaper/Carton /Paper box/Books/ Corrugated paper/Kraft paper etc. |
Material consumption | 360~480kg/h | 30 packed egg tray(60~80g) |
Water consumption | 800-1050kg/h | 30 packed egg tray(60~80g) |
Electricity consumption | 140-175kw/h | Full throttle operation |
Fuel consumption (approximately) |
LPG 55~70 kg/h |
30 packed egg tray(60~80g) Choose one from these types of fuel |
Natural gas 85~100 m3/h | ||
Diesel 65~80kg/h | ||
Operator Required | 5~8 person/shift | 24hours, 3shift |
Container requirement for Transport | 5 of 40 HQ container + 1 of 20’GP container | Whole production line |
Work flow chart
1. High automation, low labor required
2.Low production cost
3.Energy saving (by 20%-30% compared with other factories)
4.Water saving (complete water treatment system equipped)
5.Efficient Multilayer dryer, saving space (by 30% compared with traditional dryer)
6.Stable final product quality (same Model, same dimension, strong & good looking)
Application
The tray of eggs, paper pulp egg holder, quail egg boxes, eggs in a box, egg crate, egg tray, egg container, egg cartons for
sale, chicken egg holder etc.
Egg tray | 20, 30, 40 packed egg tray… quail egg tray |
Egg carton | 4, 6, 9, 10, 12, 15, 18, 24 packed egg carton… |
Agricultural products | Fruit tray, seeding cup |
Cup salver | 2, 4 cup salver |
Disposable Medical Care Products | Bedpan, sick pad, female urinal… |
Packages | Shoe tree, industrial package… |
