Product Details:
Payment & Shipping Terms:
|
| Product Type: | Egg Tray Machine | Processing Type: | Pulp Molding Machine |
|---|---|---|---|
| Condition: | New | Warranty: | One Year |
| Voltage: | 220V/380V | Color: | Customized Color |
| Application: | Paper Egg Tray | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Type: | Automtic | Finished Products: | Egg Tray Egg Carton,fruit Tray,coffee Cup Tray,wine Tray |
| Drying Type: | Metal Multi-layer Dryer | Fuel Type: | Natural Gas, Diesel Oil, LPG, Coal, Wood, Biomass Etc. |
| High Light: | egg box making machine,egg tray making machine |
||
Waste Paper Pulp Molding Machine Automatic Egg Tray Production Machine
Product Introduction:
This machine is named paper egg tray machine, or Pulp molding machine.
They can produce the different paper trays, for example paper egg tray, paper egg box, paper bottle tray,paper fruit tray, paper coffee tray,and so on.,only the pulp products, and you can offer the smaple,our machine can produce them.Now let me introduce our machine as below:
| Item | Information | Notes |
| Output Range | 5000pcs/h | 30 packed egg tray(60~80g) |
| Workshop recommendation | ≥760m2 |
Length≥38m;Width≥20m;Height≥6m; (It could be adjusted according to the user's existing workshop) |
| Type of Material | Waste paper |
Newspaper/Carton /Paper box/Books/ Corrugated paper/Kraft paper etc. |
| Material consumption | 300~400kg/h | 30 packed egg tray(60~80g) |
| Water consumption | 660-880kg/h | 30 packed egg tray(60~80g) |
| Electricity consumption | 120-150 kw/h | Full throttle operation |
|
Fuel consumption (approximately) |
LPG 50~70 kg/h |
30 packed egg tray(60~80g) Choose one from these types of fuel |
| Natural gas 80~95 m3/h | ||
| Diesel 60~80kg/h | ||
| Operator Required | 4~8 person/shift | 24hours, 3shift |
| Container requirement for Transport | 5 of 40 HQ container | Whole production line |

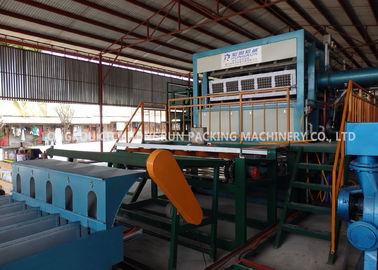

Our egg tray machine has four parts: Pulping system, forming system, drying line and packing part

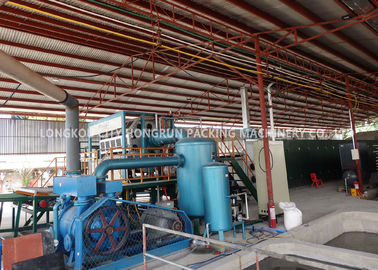

(1)Pulping system:
Pulping system is mainly comprised of hydrapulpter, pulp pump, multi-function refiner machine, blender, control cabinert,ect.
It can make the pulp by the waste paper. And it is the first step in making process!
(2)Forming system:
This part mainly is the egg tray forming machine.We could produce the forming mould and transfering mould based on our customers request.The material of the mould could be Alumminum,Resin,Plastic.

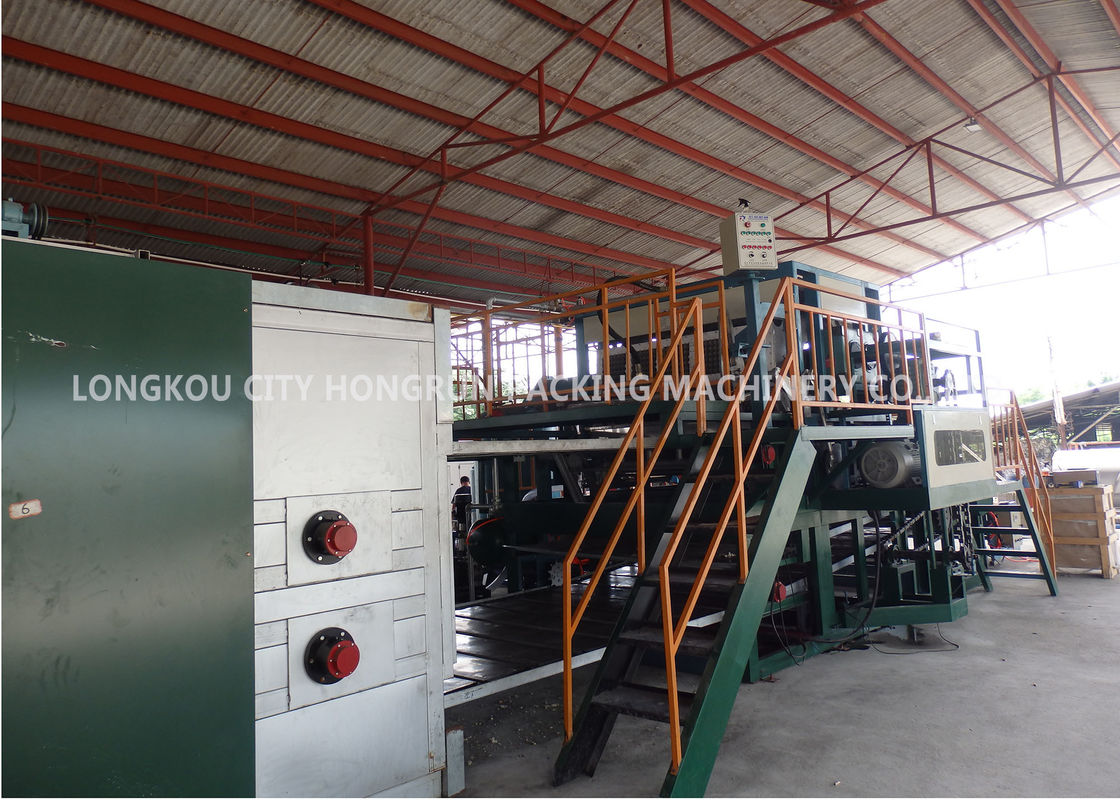

(3)Drying line
This is the very important in the all of line. When the egg tray be made over by the forming machine, the egg tray will be put on the drying line,they will across the drying channel, then you can get the dry tray!
(4)Packing machine
This is the last step when we get the finished tray from the drying line, we can packing them.
If you want to buy the best egg tray machine or pulp molding machine, please contact with me! I can help you!
