Product Details:
Payment & Shipping Terms:
|
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | One Year |
---|---|---|---|
Application: | Plates, Food Container/tray/bowl | Extruder Output: | 150-200kg/h |
Forming Speed: | 15-20 Cycles Per Min | Forming Area: | 1000*1100mm |
Forming Depth: | Max. 80mm | Mounted Power: | 170KW |
Processing Type: | Foaming Machine | ||
High Light: | takeaway food container making machine,food container making machine |

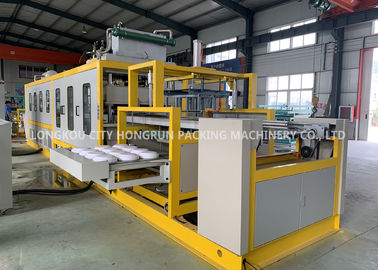

Fast Food Pack Foam Clamshell Take Away Food Box Making Machine
Product Application
PS disposable take away food box making machine , which can form lunch box from raw material. The material is recycled. The work flow is as follows: raw material---(PS foam sheet extrusion line)---foam sheet---(lunch box forming machine and cutting machine)---lunch box---(plastic recycle machine)---plastic granulars( this part can be used as raw material)----foam sheet.

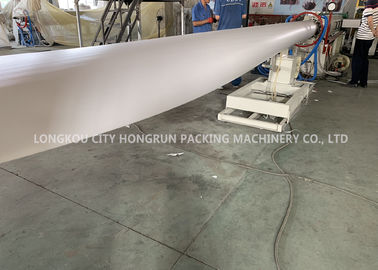

PS foam sheet extruder machine uses a tandem screw technology to produce fine-block cell-structured extruded polystyrene foam sheet with high strength and a pearl and even surface, in a continuous roll, from polystyrene injection an eco-friendly blowing gas and additives. It has a user friendly operating system with inverter controlled driving, digital temperature control and so on. It produce PS foam sheet, which is a kind of new-type packing with the features of shock proofing, sound insulating, heat preservation, damp proof, safety, and good plasticity. It is used widely in the packing of food, fruit, electronic product, daily necessities, hardware product, advertisement plate, etc.
Technical data
Item | Unit | Parameter |
Model | 105/120 | |
Applicable materials | GPPS granule(123P/525) | |
Thickness of sheet | mm | 1-3.5 |
Width of sheet | mm | 540~1080 |
Foaming rate | 12-20 | |
Weight of product | kg/m³ | 50~83 |
Output | kg/h | 150~200 |
Rated power(approximately) | KW | 180 |
Power supply | Three phase 380V/50Hz | |
External dimension | mm | 24000×4100×2800 |
Complete weight | Ton | About12 |

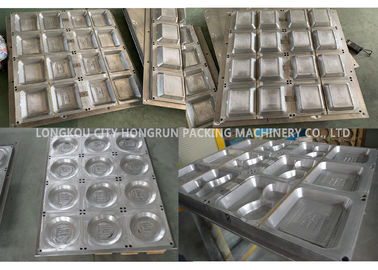

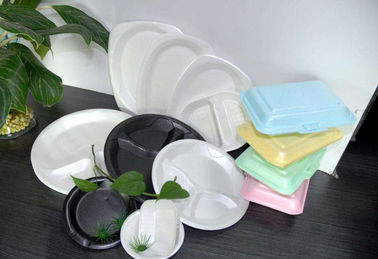

PS disposable foam food container/plate/dish/tray/bowl/box making machine makes different kinds type of fast food box, foam tray, foam plate, foam container and so on. If so, you need many moulds.

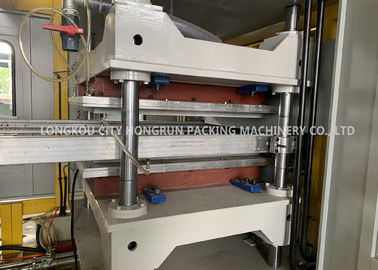

This type of developed by combining the domestic equipment and advantages, is a set of hydraulic pneumatic servo drive for an automatic forming cutting seek. Mainly by electrical components, Japan and Germany pump, ensure the reliability of the equipment operation, and can be used for hot forming process many kinds of plastic material, it can produce PS packaging products, materials used in food, medical supplies, electrical components, tourism products, toys, textile, etc.
The biggest advantage is forming cutting integration, reduce work link, produce the product directly, it can be collected in stacking area of work to save time, save the production base and greatly reduces the working intensity save artificially
Technical data
Item | Unit | Parameter |
Model | HR-L1080 | |
Power supply | Three phase 380V/50Hz | |
Production efficiency | s/mold | 2.8-5 |
Installed power (approximately) | KW | 250 |
Total weight (approximately) | Ton | 18 |
Mounting size | m | 14.2×5.8×3.14 |
Compressed air capacity | m3/min | 0.4~0.7 |
Compressed air pressure | Mpa | 0.7 |
Cooling water | T/h | 1 |
This recycling and pelletizing machine is designed to reclaim the foamed polystyrene andpolyethylene materials almost identically to new ones with its own superior filtering performance.
