Product Details:
Payment & Shipping Terms:
|
| Usage: | Making Egg Tray/egg Box/wine Tray/apply Tray Etc | Type: | Automatic |
|---|---|---|---|
| Function: | Produce Egg Tray | Warranty: | 12 Months |
| Voltage: | 220V50HZ/380V50HZ | Condition: | New |
| Product Type: | Egg Tray Machine | Processing Type: | Pulp Molding Machine |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Production Capacity: | 4000 Pcs/h |
| Raw Material: | Waste Paper,Carton And Newspaper | Finished Products: | Fruit Tray,egg Tray,wine Tray,egg Carton,bottle Tray |
| Color: | Customize | Product Name: | Waste Carton Paper Pulp Recycled Moulding Egg Tray Making Machine |
| Labor Force: | 4-6 People | ||
| High Light: | paper egg tray making machine,paper pulp molding machine |
||

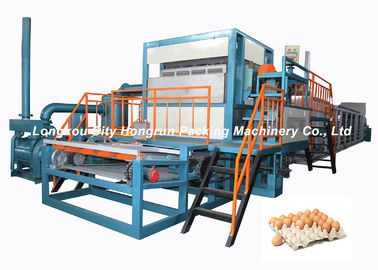

Full - Automatic Egg Tray Machine Diesel Oil Fuel Type / Pulp Molding Equipment
Brife Introduction
Egg tray machine uses waste paper as raw materials to produce different kinds of products according to your requirements, such as egg trays, egg cartons, egg boxes, apple trays, fruit trays, industrial trays, seeding trays etc. Our machine include pulp making system ,forming system and drying system.
Systerm compisition of Egg tray making machine
of 4000pcs/hr Used paper egg tray making machine manufacturer
| Egg tray making machine 4000pcs/h systerm composition | Automatic paper molding egg tray production line |
| 1 Pulp System | Hydrapulper, Pulp Pump, Pulp vibrating Screen , Pulp Agitator , and so on. |
| 2 Form System | Rotary Type Foring Machine, Customized Molds ,Vacuum Pump, Air Compressor, and so on.. |
| 3 Dryer | 6 layers metal drying line ,gas or diesel Burner etc . |
| 4 Packaging Machine | Egg tray stacker ,baling press etc . |
This is a whole machine line for you.The products produced by our machine line are up to the environmental requirements.
Technique parameter of egg tray machine
of 4000pcs/hr Used paper egg tray making machine manufacturer
| Model | HRZ-4000M |
| Production capacity | 4000pieces/hour |
| Power | 380Vs/220Vs/50Hzs( |
| Working shop requirement | Length ≥36m,Width≥12m,Height≥6m |
| Container requirement for transport | 4 sets 40'HP |
| Net weigh | 32000KG |
| Electricity consumption | 215.15KW installed |
| Material consumption | 260~290kg/h |
| Water consumption | 660-1100kg/h |
| Operator Required | 5~6 people/shift,24 hours ,3 shift |
Application
Shipping
Fully automatic production line for egg tray/egg box/fruit tray/wine tray etc
| Model | Capacity | Forming machine | Drying system | Workshop spcae | Rated power |
| HRZ-1500S | 1500pcs/hr |
3molds *4faces Rotary type |
Single-Layer Metal | 35m*10m*6m | 130KW |
| HRZ-1500M | 1500pcs/hr |
3molds *4faces Rotary type |
6 Layers Mental |
25m*10m*6m | 120KW |
| HRZ-2000S | 2000pcs/hr |
4molds *4faces Rotary type |
Single-Layer Metal | 40m*10m*6m | 165KW |
| HRZ-2000M | 2000pcs/hr |
4molds *4faces Rotary type |
6 Layers Mental |
25m*10m*6m | 145KW |
| HRZ-3000S | 3000pcs/hr |
3molds *8faces Rotary type |
Single-Layer Metal | 45m*10m*6m | 209KW |
| HRZ-3000M | 3000pcs/hr |
3molds *8faces Rotary type |
6 Layers Mental |
30m*10m*6m | 189KW |
| HRZ-4000S | 4000pcs/hr |
4molds *8faces Rotary type |
Single-Layer Metal | 55m*10m*6m | 239KW |
| HRZ-4000M | 4000pcs/hr |
4molds *8faces Rotary type |
6 Layers Mental |
30m*10m*6m | 223KW |
| HRZ-5000S | 5000pcs/hr |
5molds *8faces Rotary type |
Single-Layer Metal | 70m*15m*6m | 298KW |
| HRZ-5000M | 5000pcs/hr |
5molds *8faces Rotary type |
6 Layers Mental |
35m*15m*6m | 273KW |
| HRZ-6000S | 6000pcs/hr |
6molds *8faces Rotary type |
Single-Layer Metal | 80m*15m*6m | 365KW |
| HRZ-6000M | 6000pcs/hr |
6molds *8faces Rotary type |
6 Layers Mental |
37m*15m*6m | 326KW |
| HRD-8000M | 8000pcs/hr |
4*8 & 4*8 Double-roller |
6 Layers Mental |
40m*15m*8m | 368KW |
| HRD-12000M | 12000pcs/hr |
5*8 & 5*8 Double-roller |
6 Layers Mental |
42m*15m*8m | 428KW |
