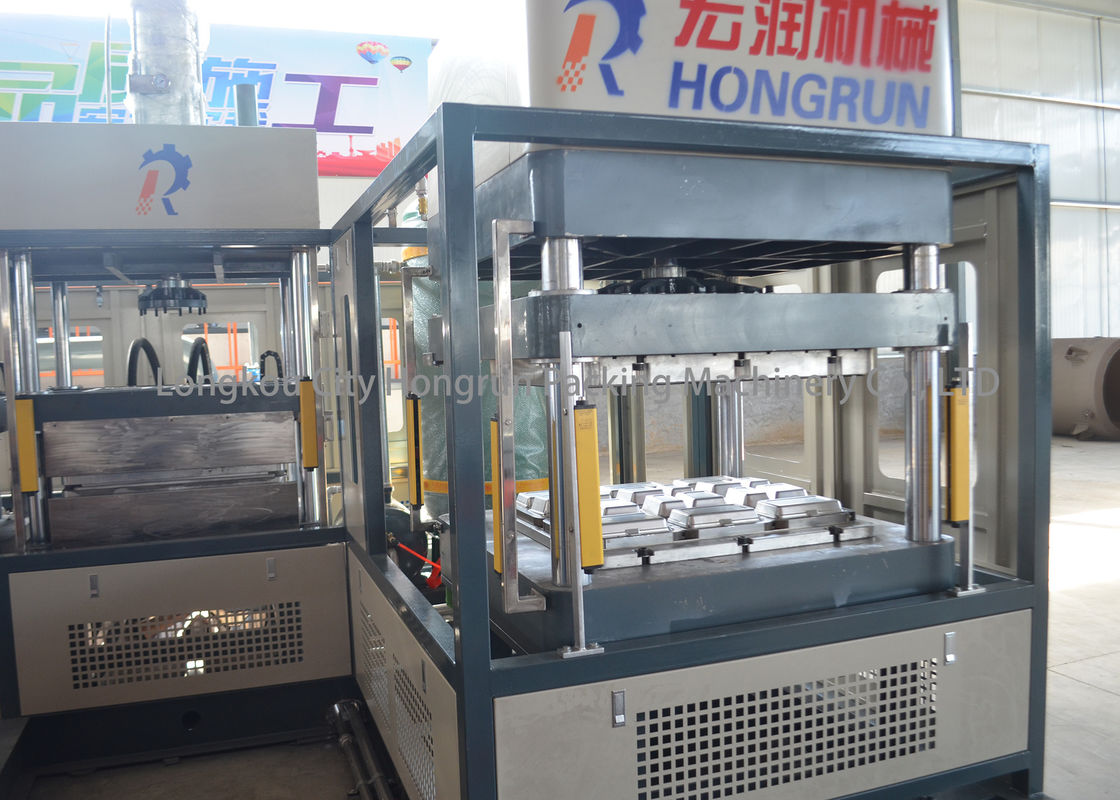

High Efficiency Paper Moulding Machine Paper Lunch Box Making Machine

High Efficiency Paper Moulding Machine Paper Lunch Box Making Machine
High Efficiency Paper Moulding Machine Paper Lunch Box Making Machine

Large Image :  High Efficiency Paper Moulding Machine Paper Lunch Box Making Machine

Product Details:

Place of Origin: CHINA
Brand Name: Hongrun
Certification: CE, ISO
Model Number: HRTW-001

Payment & Shipping Terms:

Minimum Order Quantity: ONE SET
Price: Negotate
Packaging Details: Shipping standard packaging
Delivery Time: 60days
Payment Terms: L/C, T/T
Supply Ability: 100set per year
Detailed Product Description
Raw Material: Paper Warranty: One Year
Voltage: 380V 50HZ Or Custom Made According The Situation Power(w): 260kw
Condition: New Product Type: Paper Food Container, Paper Plate, Paper Cup
Dimension(l*w*h): 10*7*4m Processing Type: Pulp Molding Machine
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Field Installation, Online Support, Commissioning And Training, Video Technical Support Finished Products: Paper Lunch Box, Paper Plate, Paper Bowl, Paper Cup
Support Custom Made: Yes
High Light:

pulp molding machine

,

Paper moulding machine

Paper pulp molded disposable tableware production line

The highly automatic robot tableware intelligent machine is mainly suitable for producing paper-molded disposable tableware, medical care appliances, high-end industrial shock-proof packaging and other products.





The fully automatic robot tableware intelligent machine is a pulp molding production line composed of a molding system, which has the following characteristics:



1. Intelligent system with high cost performance
2. Flexible, accurate and stable production operation
3. Safe and simple operation and maintenance
4. Modern remote intelligent production monitoring



The main parameters



Machine composition

Six-axis robot (one set)

four-axis robot(one set)

Reciprocating molding machine (one set)

Hot pressing machine (two sets)

Automatic trimming machine

Automatic counting stacker

Template size 880 x 880 mm
Heating method Thermal oil heating or electric heating or steam heating
The maximum boost pressure 28 tons, using gas-liquid boost
Product transfer method external robot automatic transfer
Control system PLC + touch screen control, main electrical components adopt Siemens brand.
Design capacity 600 kg / day
Raw material Raw pulp board, reed pulp, wood pulp, bamboo pulp, bagasse, straw pulp, palm pulp, etc.
Maximum height of products 100mm



Remarks

* Pulp molding equipment is a non-standard equipment, our company can provide targeted customized solutions according to customer needs.
*The above parameters are for reference only. Due to the continuous development of technology, the data will be updated from time to time.

* You are welcome to contact us at any time, our professional team will provide you with more effective support and help.



About the machine



The pulp molding disposable tableware production line uses wood pulp and various types of straw pulp as raw materials, and is mixed into a pulp with a certain concentration through the processes of crushing, screening, grinding, adding chemical agents, etc., and then the pulp is made by vacuum. It is evenly attached to a special metal mold to form a wet blank product, and then a disposable paper pulp molded tableware product is produced through the drying, hot pressing, and sterilization processes.

Applicable industries: food processing industry, food supply industry, catering industry.

Uses: Production of pulp-molded tableware, pulp-molded fast food boxes, various plates, plates, soup bowls, and meat trays. Vegetable tray etc.

The forming machine and supporting equipment make pulp into tableware.
We have various molding machines to make tableware. Different molding machines have different output. We can also design and customize according to your requirements.







Products photos

High Efficiency Paper Moulding Machine Paper Lunch Box Making Machine 0



High Efficiency Paper Moulding Machine Paper Lunch Box Making Machine 1



High Efficiency Paper Moulding Machine Paper Lunch Box Making Machine 2





About our company

High Efficiency Paper Moulding Machine Paper Lunch Box Making Machine 3

High Efficiency Paper Moulding Machine Paper Lunch Box Making Machine 4

Our company was founded in 1986 and is located in Longkou, Shandong. Our company currently covers an area of more than 6,000 square meters. Our company has successively passed the ISO9001 international quality system certification and the European Union CE certification. Our company mainly produces pulp molding equipment, including egg tray production line with recyclable waste paper and disposable pulp meal box equipment. At present, the equipment can be divided into two types: fully automatic and semi-automatic. The products produced can be used for eggs, fruits, industrial parts packaging, food and catering packaging, etc. Our equipment is exported to home and abroad, mainly exported to South America, Middle East, Africa, Central Asia, Europe, Southeast Asia and so on.



Our Customers

High Efficiency Paper Moulding Machine Paper Lunch Box Making Machine 5

Our Cerfication



High Efficiency Paper Moulding Machine Paper Lunch Box Making Machine 6
