Product Details:
Payment & Shipping Terms:
|
| Voltage: | 220V50HZ/380V50HZ | Condition: | New |
|---|---|---|---|
| Warranty: | 12 Months | Capacity: | 6000pcs/hr |
| Raw Material: | Recycled Paper | Processing Type: | Pulp Molding Machine |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Machine Type: | Full Automatic Rotary Type |
| Drying Type: | Metal Multi-layer Dryer | Fuel Type: | Gas Or Oil, Wood, Coal, Biomass, Electricity Etc |
| Dryer Length: | 23m | ||
| High Light: | pulp egg tray making machine,pulp molding equipment |
||
Recycled Paper Egg Carton Machine Pulp Industrial Packing Tray Production Line
Description for Egg tray machine
Egg tray machine equipment mainly uses waste paper,waste carton as raw materials. By smash pulp, vibrating pulp, grinding pulp and forming pulp, the forming machine adsorbs the pulp by vacuum type with some necessary chemicals. The equipment also can produce the followings: package for glass and ceramics, crafts, small machinery, electric products, toys and so on. The paper carton can replace the plastic bag and corrugated paper. And they not only have the protection, cushion performance, make less damage, improve the package figure, but also can saving cost, protect environment and can be recycled use. They are the typical product in the green package storm.
Raw material:
Raw material: waste old book, waste newspaper, waste carton, etc.
Drying fuel: coal, wood, diesel, natural gas, lp-gas
Knowledge Note of Egg tray machine
Pulping system: Pulper, Grinding Machine, Mixer, Stuff Pump, Water Pump, Control Cabinet, etc.

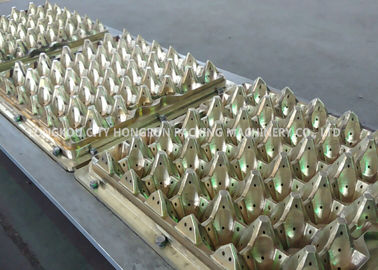

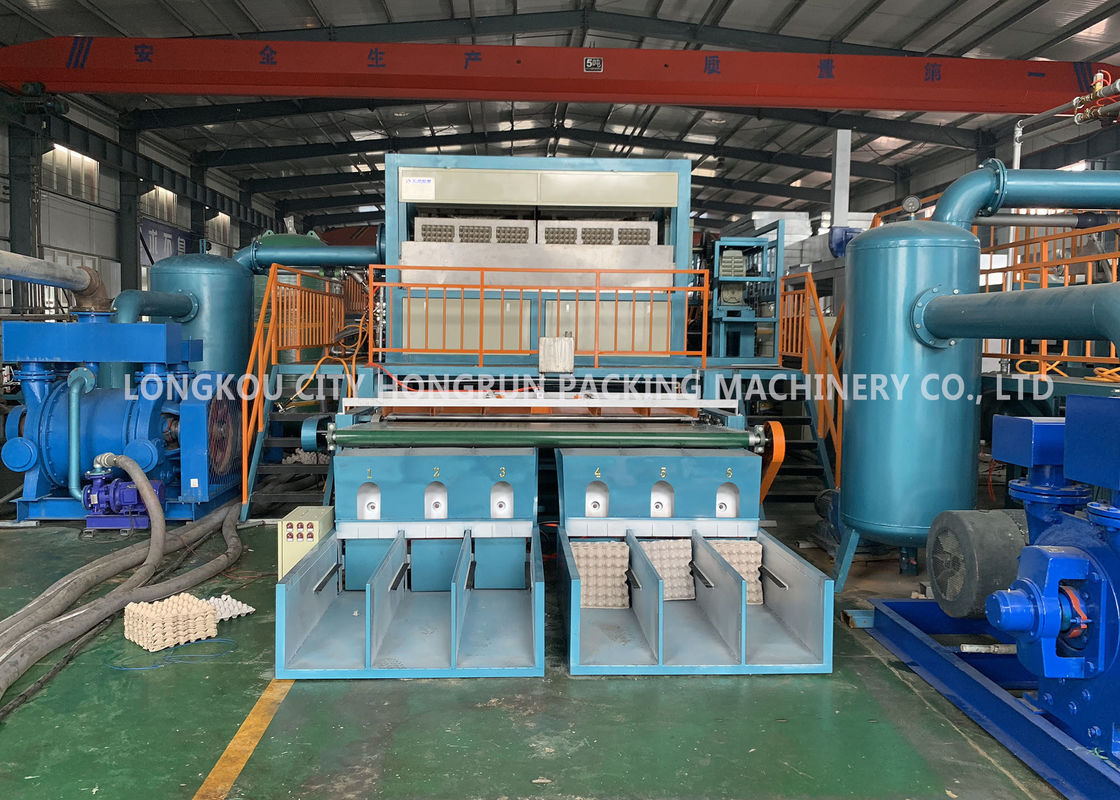

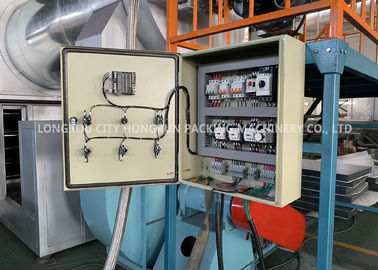

Forming System: This equipment consists of 8 forming pattern plates and 1 transfer plate. The size of each plate is 1470mm×470mm and each plate can carry 4 sets of 30pcs egg tray mould, totally 32 sets. The molding efficiency is 13-15 plates/minutes. It is equipped with automatic vacuum drainage system, automatic plate washing system, pre-drying system and automatic control cabinet.

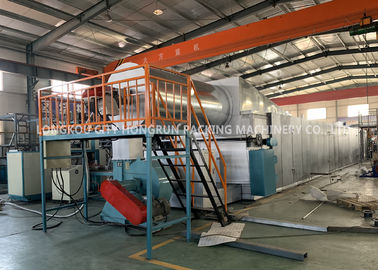

Drying System: There are 2 kinds of drying system. One is metal, the other is civil engineering. The conveyor plate can be one layer and multi-layer, direct combustion hot air circulation. Using the imported or joint venture brand burner (domestic uses the stove bar), equipped with an automatic control cabinet.
Technical parameters
| Item | Information | Notes |
| Output Range | 6000pcs/h | 30 packed egg tray(60~80g) |
| Workshop recommendation | ≥600m2 |
Length≥40m;Width≥15m;Height≥6m; (It could be adjusted according to the user's existing workshop) |
| Type of Material | Waste paper |
Newspaper/Carton /Paper box/Books/ Corrugated paper/Kraft paper etc. |
| Material consumption | 360~480kg/h | 30 packed egg tray(60~80g) |
| Water consumption | 800-1050kg/h | 30 packed egg tray(60~80g) |
| Electricity consumption | 140-175kw/h | Full throttle operation |
|
Fuel consumption (approximately) |
LPG 55~70 kg/h |
30 packed egg tray(60~80g) Choose one from these types of fuel |
| Natural gas 85~100 m3/h | ||
| Diesel 65~80kg/h | ||
| Operator Required | 5~8 person/shift | 24hours, 3shift |
| Container requirement for Transport | 5 of 40 HQ container + 1 of 20’GP container | Whole production line |
