Large Capacity EPS Disposable Food Containers Machine With PLC Control

China Longkou City Hongrun Packing Machinery Co., Ltd. certification
China Longkou City Hongrun Packing Machinery Co., Ltd. certification
We hope Hongrun company could have a good beginning in business, and we will keep a long-term cooperation with your company.

—— Sukhraj

Your goods are superior in quality compared with those of other manufacturers. We always have faith in the quality of your products.

—— REMESH

I'm Online Chat Now

Large Capacity EPS Disposable Food Containers Machine With PLC Control

Large Capacity EPS Disposable Food Containers Machine With PLC Control
Large Capacity EPS Disposable Food Containers Machine With PLC Control Large Capacity EPS Disposable Food Containers Machine With PLC Control Large Capacity EPS Disposable Food Containers Machine With PLC Control Large Capacity EPS Disposable Food Containers Machine With PLC Control

Large Image :  Large Capacity EPS Disposable Food Containers Machine With PLC Control

Product Details:

Place of Origin: CHINA
Brand Name: HONGRUN
Certification: ISO9001, CE, SGS, BV, TUV
Model Number: HRZ-L1080

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Standard Export Packaging
Delivery Time: 90days
Payment Terms: T/T, L/C
Supply Ability: 100SETS PER YEAR
Detailed Product Description
Food Container Feature: Takeaway Food Container Lunch Box Plastic Type: PS
Usage: Take Away Food Product: Food Container
Logo: As Request Extruder Model: HR-120/150
Extruder Capacity: 230-320kg/h Forming Speed: 3-5s/mold
Forming Area: 1100*1400mm Forming Depth: Max. 80mm
Control Type: PLC Control
High Light:

plastic welding equipment

,

Joinery machine

Large Capacity EPS Disposable Food Containers Tray Making Machine

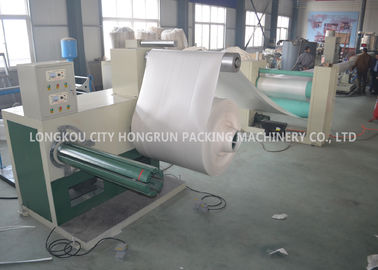

1. PS foam sheet extrusion line



PS foam sheet extrusion line adopts Gentian type double-stage series high technology. The raw material is general polystyrene granule. In the extruding process, vesicant is injected at high pressure. After extruding, foaming, cooling, shaping and hauling off , it is winding to finished ps foam sheet rolls. This equipment adopts high speed non-stop hydraulic filter changer and OLC controller, it is easy for operation.

Large Capacity EPS Disposable Food Containers Machine With PLC Control 0

Machine Specifications

Item Unit Parameter
Model   105/120
Applicable materials   GPPS granule(123P/525)
Thickness of sheet mm 1-3.5
Width of sheet mm 540~1080
Foaming rate   12-20
Weight of product kg/m³ 50~83
Output kg/h 150~200
Rated power(approximately) KW 180
Power supply   Three phase 380V/50Hz
External dimension mm 24000×4100×2800
Complete weight Ton About12

PS Foam Sheet Extruder Included Bellowed Equipment List:

A. Stainless steel Mixer and feeder

B. Φ105 Extruder

C. Φ120 Extruder

D. Screen changer

E. Die head

F. High pressure metering pump

G. Shaping, cutting and cooling unit

H. Haul-off unit

I. Electrostatic elimination system

J. Double position winder

K. Electric control system

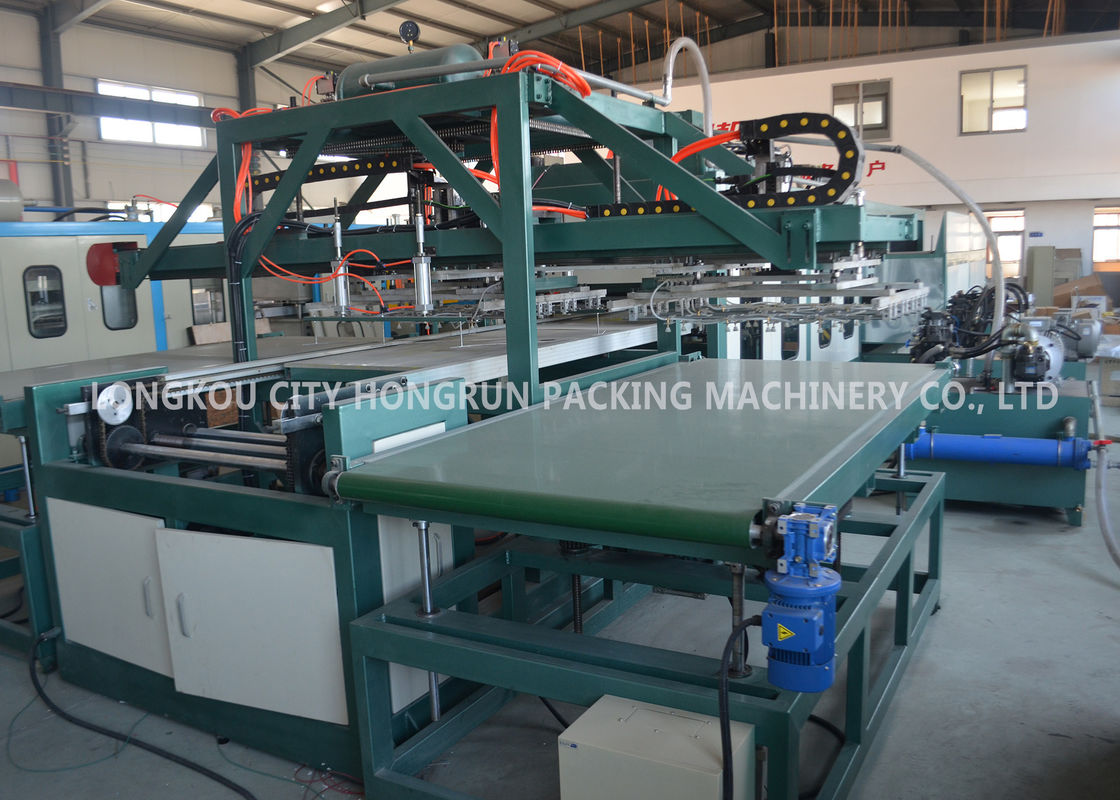

2. PS foam food container forming machine



Fully automatic vacuum forming and cutting off integration machine is all-powerful thermoforming machine with integrating vacuum forming and cutting off at the same time. It can be used for processing all kinds of plastic sheet. This machine adopts computer digital forming system, PLC mechanical and electronic integration self-control and touch screen control working programme, it is easy to operate and has highly production efficiency.

Large Capacity EPS Disposable Food Containers Machine With PLC Control 1



Forming mold

Large Capacity EPS Disposable Food Containers Machine With PLC Control 2

Main technical parameters

Item Unit Parameter
Model / HR-M1080
Power supply / Three phase 380V/50Hz
Production efficiency s/mold 4-5
Installed power (approximately) KW 168
Total weight (approximately) Ton 16
Mounting size m 12×2×2.6
Compressed air capacity m3/min 0.4~0.7
Compressed air pressure Mpa 0.7
Cooling water T/h 1

Automatic Vacuum Forming Machine Included Bellowed Equipment List:

A. Unwinding unit

B. Heating unit

C. Vacuum forming unit

D. Truncation unit

E. Auto stacking unit

F. Collecting products unit

G. Leftover material rewinding device

H. Heating electric control cabinet

I. Operating electrical cabinet

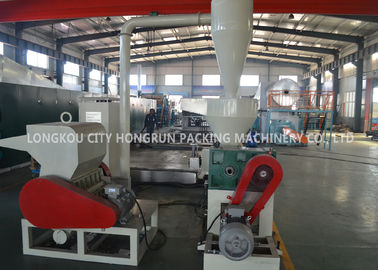

3. Recycling machine



This machine can process PS material and it is mainly used to recycle the high foam polystyrene and high foam polystyrene products.It is the ideal equipment to recycle waste material.

Large Capacity EPS Disposable Food Containers Machine With PLC Control 3

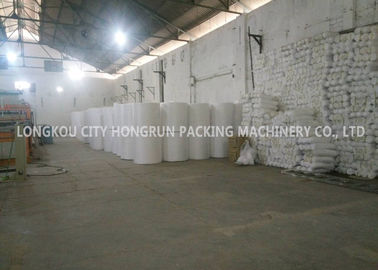

Final products:

Large Capacity EPS Disposable Food Containers Machine With PLC Control 4

Large Capacity EPS Disposable Food Containers Machine With PLC Control 5

Large Capacity EPS Disposable Food Containers Machine With PLC Control 6
