Pulp Egg Tray Machine / Apple Tray Moulding Machine
Quick Details
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong China (Mainland)
Voltage: 380V
Power(W): 104KW
Dimension(L*W*H): 30*4*4M
Weight: 30T
Warranty: ONE YEAR
Shaping machine type: Roller type
Raw material: Recycled paper
Fuel type: Natural gas/Diesel oil/Coal
Product Description:
Pulp Moulding Machine is known as egg tray line for using massively in produce egg tray.
Pulp Moulding Machine, which uses waste paper, cardboard, leftover material of paper mill, by hydraulic pulper, mix making a certain dense pulp, and pulp is absorbed by vacuum of special metal moulding to become wet products, through drying , and shaping to become finished products.
Pulp Moulding Line processing makes use of recycled water and does not lead to water or air pollution. Finished packaging products can be recycled after being used in storage, transport, and sales. After shredding, they are easy to be decomposed as paper, even if discarded into the natural environment.
Automatic pulp molding production lines can be mass production of various food container, egg tray, lunch boxes and so on.
The major equipment of the machine are three parts include: Pulp Making System, Molding System, Drying system and packing system.
Pulp Making System
Hydraulic, Pulp Pump, Pulp Screen Machine, Pulp Breaking Machine, Stirrer and so on.
Moulding System
Rotary Type Molding Machine, Vacuum Pump, Air Compressor, Vacuum Tank, Water Pump and so on..
Drying System
Bellows, Air Blower, Conveyer
Packaging Machine
High quality of pulp molding machine for paper trays could design according to the customer’ requirement.
Flow Chart
For pulp molded 30-cell egg trays : first the worker will weight the raw material and put them into the conveyor. Then the pulping ,forming, drying and stacking will be finished automatically. After drying, the finished products will be packed by workers.A hot pressing section should be added in the production of pulp molded egg box/carton(6-cell,10-cell,12-cell,6+6-cell,15-cell),fruit tray and cup carrier after drying because of shrinking.
The egg box/carton can be labelled or printed after hot pressing. These processes could be finsihed manually or automatically.
Working Systems
1.Pulp Making System
Hydraulic, Pulp Pump, Pulp Screen Machine, Pulp Breaking Machine, Stirrer and so on.

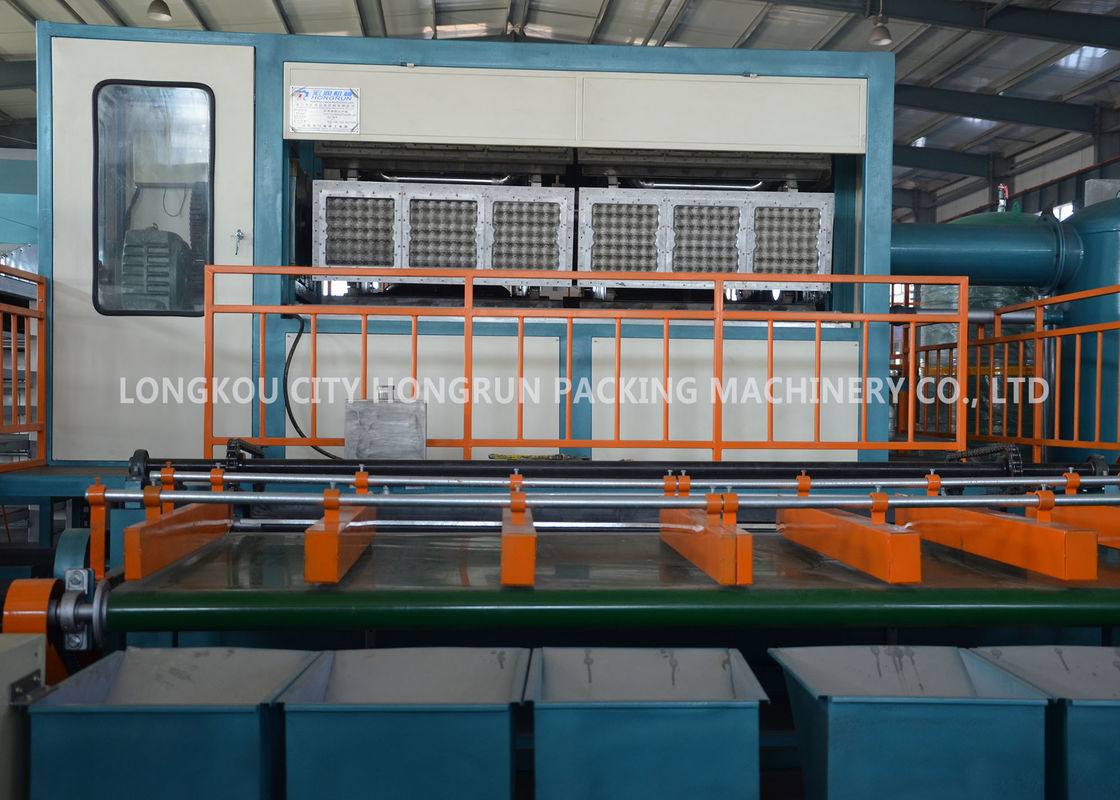

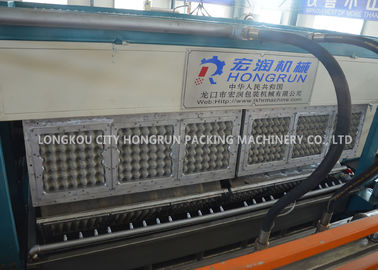

2.Moulding System
Rotary Type Molding Machine, Vacuum Pump, Air Compressor, Vacuum Tank, Water Pump and so on..

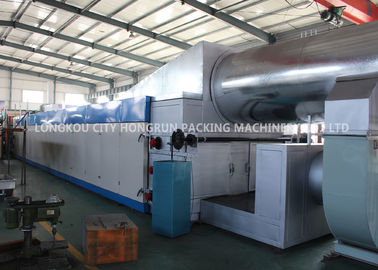

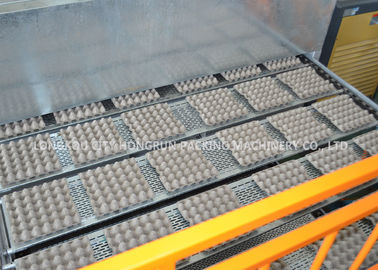

3.Drying System
Bellows, Air Blower, Mesh Belt Conveyor, Multi-layer Drying System
Parameter of Egg Tray Machine(2000 pcs/h)
Technical data
| Item |
Information |
Notes |
| Output Range |
6000pcs/h |
30 packed egg tray(60~80g) |
| Workshop recommendation |
≥600m2 |
Length≥40m;Width≥15m;Height≥6m;
(It could be adjusted according to the user's existing workshop)
|
| Type of Material |
Waste paper |
Newspaper/Carton /Paper box/Books/
Corrugated paper/Kraft paper etc.
|
| Material consumption |
360~480kg/h |
30 packed egg tray(60~80g) |
| Water consumption |
800-1050kg/h |
30 packed egg tray(60~80g) |
| Electricity consumption |
140-175kw/h |
Full throttle operation |
|
Fuel consumption
(approximately)
|
LPG 55~70 kg/h |
30 packed egg tray(60~80g)
Choose one from these types of fuel
|
| Natural gas 85~100 m3/h |
| Diesel 65~80kg/h |
| Operator Required |
5~8 person/shift |
24hours, 3shift |
| Container requirement for Transport |
5 of 40 HQ container + 1 of 20’GP container |
Whole production line
|
For more choice
| For 30-cell egg tray as the example: |
| Model |
Throughput |
Drying System |
Workshop Space |
Rated Power |
| HR-1000S |
1000pcs/h |
Single-Layer Metal |
40m*10m*6m |
88KW |
| HR-1500S |
1500pcs/h |
Single-Layer Metal |
42m*10m*6m |
122KW |
| HRZ-2000M |
2000pcs/h |
Multi Layers Mental |
30m*10m*6m |
160KW |
| HRZ-3000M |
3000pcs/h |
Multi Layers Mental |
30m*10m*6m |
187KW |
| HRZ-4000M |
4000pcs/h |
Multi Layers Mental |
35m*10m*6m |
206KW |
| HRZ-6000M |
6000pcs/h |
Multi Layers Mental |
38m*15m*6m |
327KW |
| HRP-8000M |
8000pcs/h |
Multi Layers Mental |
35m*20m*6m |
470KW |
| HRD-12000M |
12000pcs/h |
Multi Layers Mental |
45m*20m*8m |
477KW |
| ž Exact data are subject to final contract. |
