Product Details:
Payment & Shipping Terms:
|
| Forming Area: | 1000*1100mm | Max. Depth: | 80mm |
|---|---|---|---|
| Extruder Capacity: | 150-200kg/h | Thickness Of Sheet: | 1-3.5mm |
| Width Of Sheet: | 1080mm | Forming Speed: | 2.8-5s/mold |
| High Light: | takeaway food container making machine,food container making machine |
||
It mainly includes four parts:
1. PS Foam Sheet Extrusion Line
2. Automatic Vacuum Forming and Cutting Machine
3. Crusher and Recycle Machine
This line is the whole production line, which can form lunch box from raw material. This is the recycle. The work flow is as follows: raw material---(ps foam sheet extrusion line)---foam sheet---(lunch box forming machine and cutting machine)---lunch box---(plastic recycle machine)---plastic granulars( this part can be used as raw material)----foam sheet.
1. PS Foam Sheet Extrusion Line HR-105/120

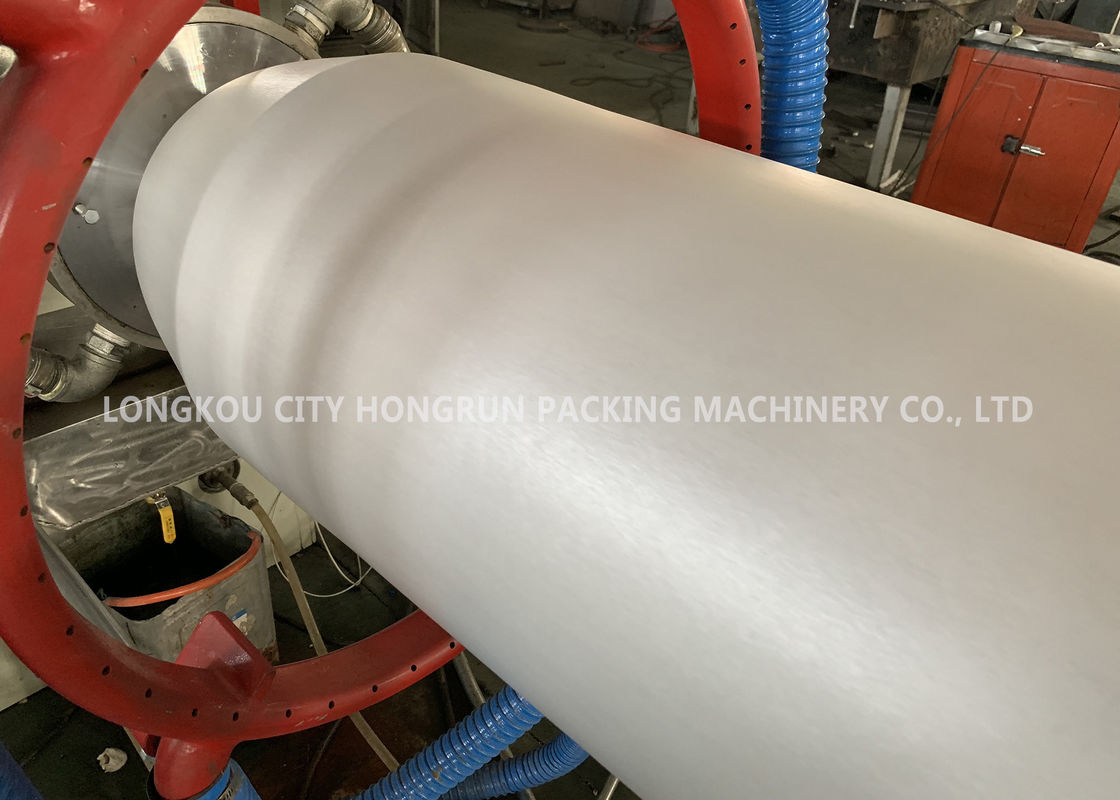

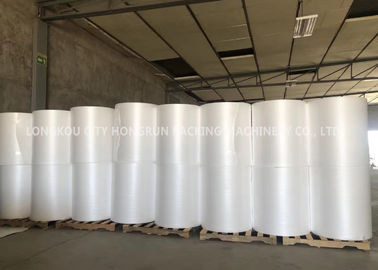

PS Foam Sheet Extruder uses a tandem screw technology to produce fine-block cell-structured extruded polystyrene foam sheet with high strength and a pearl and even surface, in a continuous oil, from polystyrene injection an eco-friendly blowing gas and additives. It has a user-friendly operating system with inverter-controlled driving, digital temperature control and so on, from this machine you can get the PS Foam sheet by rolls, the PS Foam Sheet can be used for food container, tray, plate and packing etc.
| Item | Unit | Parameter |
| Model | 105/120 | |
| Applicable materials | GPPS granule(123P/525) | |
| Thickness of sheet | mm | 1-3.5 |
| Width of sheet | mm | 540~1080 |
| Foaming rate | 12-20 | |
| Weight of product | kg/m³ | 50~83 |
| Output | kg/h | 150~200 |
| Rated power(approximately) | KW | 180 |
| Power supply | Three phase 380V/50Hz | |
| External dimension | mm | 24000×4100×2800 |
| Complete weight | Ton | About12 |

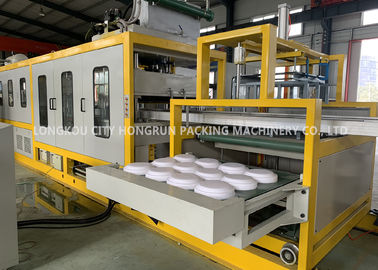

2. Full Automatic Fast food container Machine (1000*1250mm)
The technical specification
a.The forming area:1000*1250mm
b.Working efficiency:3-5 seconds per mould
c.Max forming depth:80mm
d.Forming mode: Vacuum forming, press forming, mould forming, comprehensive forming
| Item | Unit | Parameter |
| Model | / | HR-M1080 |
| Power supply | / | Three phase 380V/50Hz |
| Production efficiency | s/mold | 4-5 |
| Installed power (approximately) | KW | 168 |
| Total weight (approximately) | Ton | 16 |
| Mounting size | m | 12×2×2.6 |
| Compressed air capacity | m3/min | 0.4～0.7 |
| Compressed air pressure | Mpa | 0.7 |
| Cooling water | T/h | 1 |
3. Crusher and Recycling Machine
1.Introduction:
This machine is special for polystyrene. It adopts single screw, double stage plasticification, increasing compress ratio. The whole machine consists of crusher, main machine, cooling tank and granulator. It can recycle many foamed products, such as PS, XPS, EPS etc.
2. Flow Chart:
Material —Put into—Crush—Inhalation storage silos—Melt—Extrude—Water tank cooling—Pulling—Pelletizing—Packaging
3.Main parameters
| Model | 105/300 |
| Screw Diameter | Φ105/300mm |
| Total power | 45kw |
| Power supply | three phase 380V/50Hz |
| Number of heating zones | 4 |
| Throughput | 120kg/h |
| Applicable materials | PS foam scrap |

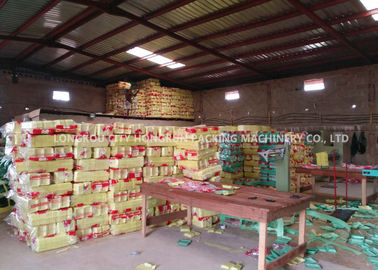

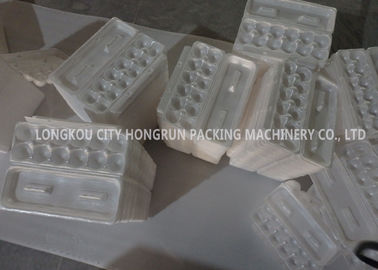

Finished products
