Automatic Poultry Farm Paper Egg Box Machine For Packing Chicken Egg
HONGRUN manufactures various models and types of Machines, Equipment, Spare Parts needed mainly to manufacture Paper Pulp Moulded products generally made from Waste Boxes, Papers, Indian Pulp, Taiwan Pulp, Korean Pulp, Canadian Pulp, China Pulp, Thailand Pulp, Indonesia Pulp, South American Pulp etc., most of the Paper & Paper based Paper Waste can be recycled
using HONGRUN Equipment. The production lines are easy to operate and maintain. It has high productivity, easy
interchangeability of mold tooling, consumes less energy with less manufacturing cost, faster setting time etc., It can be upgraded
to next higher level of production by adding less number of additional machines. Various models and ranges are available in Wet Moulding & Dry Moulding Process (Fine Moulding). The range of products that can be made is endless.
Few examples are Egg Trays (30-cell) Egg Box/Carton (6-cell,10-cell, 12-cell, 6+6-cell, 18-cell) Egg Carton of multi-cavity sizes, Can Shell types, Apple Tray, Fruit Tray, Tomato Tray, Pear Tray, Orange Tray, Cup carriers used in fast food outlets (4 pack, 2 pack) Hospital and Medical Care products (like Bed Pan Sleeves, Male Urinal Bottle, Female Urinal Pots, Kidney Tray, Bowls) Nursery Pots, Seed Pots (Jiffy Pots), Industrial Packs (Packing Buffers) Electronic Products Packing Pads and Paper Trays, etc.
| For 12-cell egg box as the example: |
| Model |
Throughput |
Workshop Space |
Rated Power |
| HR-1000S |
1000pcs/h |
40m*10m*6m |
88KW |
| HR-1500S |
1500pcs/h |
42m*10m*6m |
122KW |
| HRZ-2000M |
2000pcs/h |
30m*10m*6m |
160KW |
| HRZ-3000M |
3000pcs/h |
30m*10m*6m |
187KW |
| HRZ-4000M |
4000pcs/h |
35m*10m*6m |
206KW |
| HRZ-6000M |
6000pcs/h |
38m*15m*6m |
327KW |
- The throughput of 4-cells egg box, 6-cells egg box, 9-cells egg box 10-cells egg box, 15-cells egg box, 18-cells egg box etc. should be calculated on the basis of the exact size of samples.
- Exact data are subject to final contract.
|

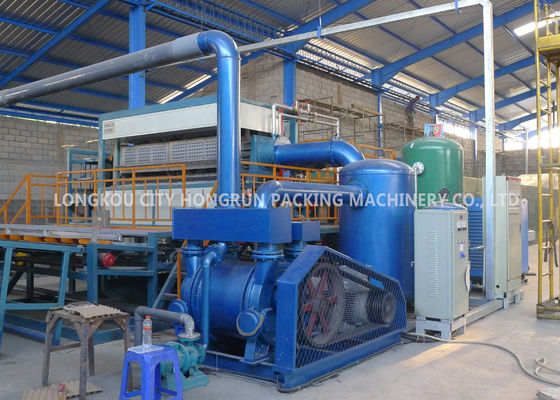

HRZ-6000M rotary type automatic paper pulp molding production line system basic constitution
The HRZ-6000M rotary type automatic paper pulp molding production line constituted by five large-scale systems:
(1) Pulping system
(2) Forming machine
(3) Drying system
(4) Finished products automatic stacking, collection and manual packing system
(5) Electricity control system
Specification of machine
| Item |
Information |
Notes |
| Output Range |
6000pcs/h |
30 packed egg tray(60~80g) |
| Workshop recommendation |
≥600m2 |
Length≥40m;Width≥15m;Height≥6m;
(It could be adjusted according to the user's existing workshop)
|
| Type of Material |
Waste paper |
Newspaper/Carton /Paper box/Books/
Corrugated paper/Kraft paper etc.
|
| Material consumption |
360~480kg/h |
30 packed egg tray(60~80g) |
| Water consumption |
800-1050kg/h |
30 packed egg tray(60~80g) |
| Electricity consumption |
140-175kw/h |
Full throttle operation |
|
Fuel consumption
(approximately)
|
LPG 55~70 kg/h |
30 packed egg tray(60~80g)
Choose one from these types of fuel
|
| Natural gas 85~100 m3/h |
| Diesel 65~80kg/h |
| Operator Required |
5~8 person/shift |
24hours, 3shift |
| Container requirement for Transport |
5 of 40 HQ container + 1 of 20’GP container |
Whole production line |
