Payment & Shipping Terms:
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas||Voltage:||380V 50HZ 3Phase|
|Condition:||New||Product Type:||Fast Food Box|
|Type:||Thermoforming Machine||Product Name:||Foam Box Food Tray Fast Food Container Machine|
|Material:||PS||Processing Type:||Plastic Thermoforming Machine|
|Production Efficiency:||3-5 S/mould||Forming Pressure:||35T|
|Forming Area:||1000*1100mm||Max. Depth:||80mm|
plastic food container making machine,
fast food box making machine

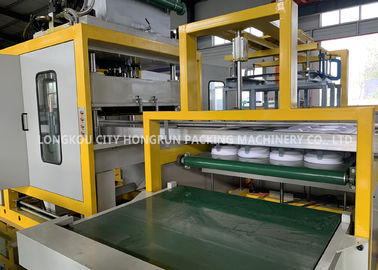

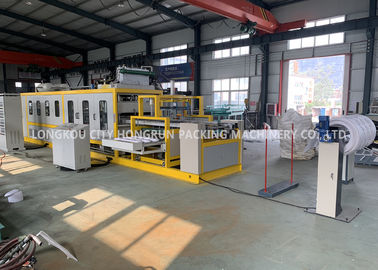

PS Foam Disposable Fast Food Container Making Machinery HR 105 / 120

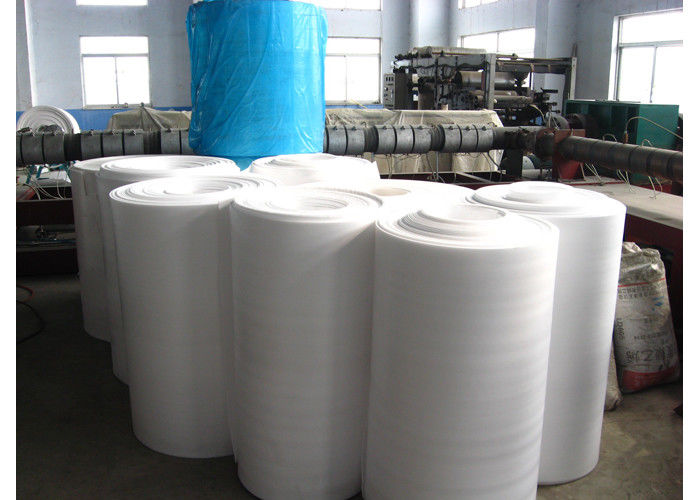

1. PS Foam Sheet Extruder
|Applicable materials||GPPS granule|
|Thickness of sheet||mm||1-4|
|Width of sheet||mm||540/1080|
|Bulk weight of product||Kg/m³||50-83|
|Thermal conductivity of product||W/m.k||0.021-0.038|
|Power supply||three phase 380v/50Hz|
The working process as below:
Feeding ---heating area (heating by the remote infrared ceramic heater)--forming area (vacuum Forming, press forming and synthetically forming) --Pneumatic cutting knife (cut the shaped sheet into pieces) –scrap winding.
1. It can produce PS foam food box/container, foam (egg/meat) tray, hamburger box, foam plates/bowl, fruit tray, etc. The foam container has a feature of shock-resistance, crush- resistance, heat insulation, etc. It is widely used to pack the heat and frozen food in supermarkets, stores and etc.
2. Fully automatic forming and cutting machine integrates forming, cutting and stacking (trimming) at the same time. It has the features of labor-saving, high efficiency, energy-saving properties. It adopts PLC controller and touch screen to control the working program.
2. It is an all-powerful thermal forming machine with the integration of vacuum forming and cutting.
4. It adopts a remote infrared ceramic heater in the heating zone, with which the machine gets the most stable and even temperature.
5. It adopts the temperature digital control system, which is convenient for the workers to know the temperature of each heating zone quickly. Also, it easily operates and makes more efficient.
6. It features reliable stability, large forming area, and fast speed, as well as a high degree of automation & economic on manpower.
|Power supply||/||Three phase 380V/50Hz|
|Installed power (approximately)||KW||168|
|Total weight (approximately)||Ton||16|
|Compressed air capacity||m3/min||0.4～0.7|
|Compressed air pressure||Mpa||0.7|
|Power supply||three phase 380V/50Hz|
|Number of heating zones||7|
|Applicable materials||PS foam scrap|
