PS foam food box machine, automatically white Plastic foam plate machine
Food Packaging Plastic Container Production Line , Carryout Containers Foam Making Machine
Product introduction:
The complete production line includes 3 parts

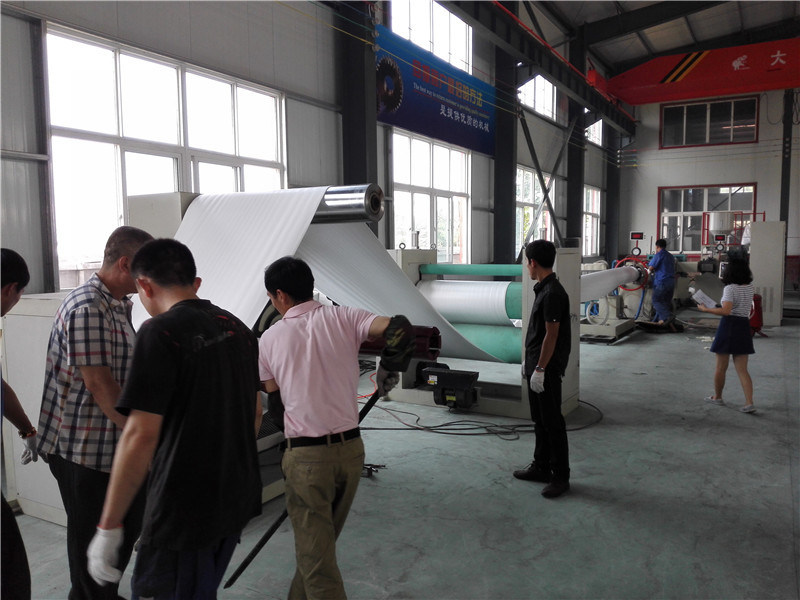

1- PS foam sheet extrusion line
This machine adopts double-screw foam sheet extrusion technology. PSP foam sheet is a kind of new-type packing material with the features of heat preservation, safety, sanitation and good plasticity. It’s mainly used to make various types of food containers, such as lunch box, dinner trays, bowls etc by thermoforming. It’s also can be used to make advertisement board, industrial products packing and so on. It has stable performance, big capacity, high automation and yields quality products.

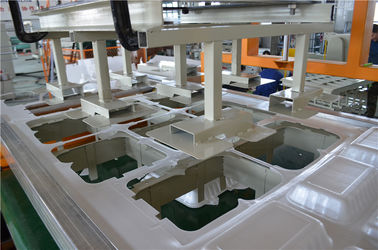

2- Full-automatic vacuum forming and cutting integrated machine
This forming and cutting incorporated machine designed by our company is all-powerful. The main way is vacuum forming as well as press forming and synthetical forming. It can be used for forming kinds of plastic sheet. This machine adopt PLC control, it has group possesses reliable stability, large forming area, high production and automatic degree. The machine can mainly forming the PSP material which is used to produce food container, tray, bowl, cup etc. Forming, cutting, stacking are done in the same machine, saving labor, improving efficient, lowing labor intensity and reducing production cost. Production process is to put foam sheet into forming machine, and product and wastage will come out from the rear part.
3- PS recycling and pelletizing machine
This recycling and pelletizing machine is designed to reclaim the foamed polystyrene and polyethylene
materials almost identically to new ones with its own superior filtering performance.
Main parameters:
1-PS foam sheet extrusion line
| Item |
Unit |
Parameter |
| Model |
|
FPP105-120 |
| Applicable materials |
|
GPPS granule |
| Thickness of sheet |
mm |
1-4 |
| Width of sheet |
mm |
540/1080 |
| Foaming rate |
|
12-20 |
| Bulk weight of product |
Kg/m³ |
50-83 |
| Thermal conductivity of product |
W/m.k |
0.021-0.038 |
| Output |
kg/h |
150-200 |
| Rated power |
Kw |
200 |
| Power supply |
|
three phase 380v/50Hz |
| External dimension |
mm |
25000×7000×3000 |
| Complete weight |
Ton |
About12
|
2- Full-automatic vacuum forming and cutting integrated machine
|
Item
|
Unit
|
Parameter
|
|
Model
|
|
HR-1040
|
|
Applicable materials
|
|
GPPS granule
|
|
Thickness of sheet
|
mm
|
1-4
|
|
Width of sheet
|
mm
|
540/1080
|
|
Foaming rate
|
|
12-20
|
|
Bulk weight of product
|
Kg/m³
|
50-83
|
|
Thermal conductivity of product
|
W/m.k
|
0.021-0.038
|
|
Output
|
kg/h
|
150-200
|
|
Rated power
|
Kw
|
200
|
|
Power supply
|
|
three phase 380v/50Hz
|
|
External dimension
|
mm
|
25000×7000×3000
|
|
Complete weight
|
Ton
|
About12
|
3- PS recycling and pelletizing machine
| Item No. |
Screw Diameter |
Throughput |
| HR-HS108/350 |
350/108mm |
60-80kg/H
|
