Rotary Type Pulp Molding Machine , Egg Box Machine

Rotary Type Pulp Molding Machine , Egg Box Machine
Rotary Type Pulp Molding Machine , Egg Box Machine Rotary Type Pulp Molding Machine , Egg Box Machine

Large Image :  Rotary Type Pulp Molding Machine , Egg Box Machine

Product Details:

Place of Origin: CHINA
Brand Name: HONGRUN
Certification: ISO9001, CE, SGS, BV, TUV
Model Number: HR-2000~HR-8000
Shaping machine type: Rotary type
Raw material: recycled paper
Fuel type: natural gas/diesel oil/coal
Warranty: ONE YEAR
Capacity: 50,000pcs per working day

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Standard Export Packaging
Delivery Time: 60days
Payment Terms: T/T, L/C
Supply Ability: 100SETS PER YEAR
 Quality Guarantee: one year
Detailed Product Description
High Light:

paper egg tray making machine

,

egg tray manufacturing machine

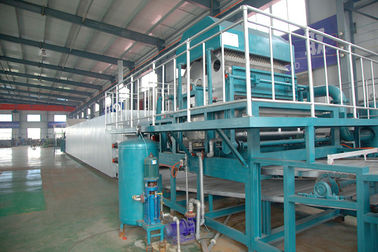

Rotary Type Pulp Molding Machine , Egg Box Machine





Product Description:



Pulp Moulding Machine is known as egg tray line for using massively in produce egg tray.

     Pulp Moulding Machine, which uses waste paper, cardboard, leftover material of paper mill, by hydraulic pulper, mix making a certain dense pulp, and pulp is absorbed by vacuum of special metal moulding to become wet products, through drying , and shaping to become finished products.

    Pulp Moulding Line processing makes use of recycled water and does not lead to water or air pollution. Finished packaging products can be recycled after being used in storage, transport, and sales. After shredding, they are easy to be decomposed as paper, even if discarded into the natural environment.

    Automatic pulp molding production lines can be mass production of various food container, egg tray, lunch boxes and so on.

    The major equipment of the machine are three parts include: Pulp Making System, Molding System, Drying system and packing system.





Pulp Making System



    Hydraulic, Pulp Pump, Pulp Screen Machine, Pulp Breaking Machine, Stirrer and so on.





Moulding System



   Rotary Type Molding Machine, Vacuum Pump, Air Compressor, Vacuum Tank, Water Pump and so on..





Drying System

    Bellows, Air Blower, Conveyer





Packaging Machine



    High quality of pulp molding machine for paper trays could design according to the customer’ requirement.




Flow Chart



Rotary Type Pulp Molding Machine , Egg Box Machine 0

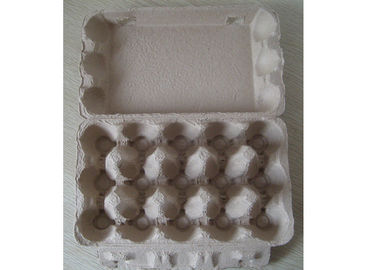

For pulp molded 30-cell egg trays : first the worker will weight the raw material and put them into the conveyor. Then the pulping ,forming, drying and stacking will be finished automatically. After drying, the finished products will be packed by workers.A hot pressing section should be added in the production of pulp molded egg box/carton(6-cell,10-cell,12-cell,6+6-cell,15-cell),fruit tray and cup carrier after drying because of shrinking.

The egg box/carton can be labelled or printed   after hot pressing. These processes could be finsihed manually or automatically.



Technology Parameters

Model

2000-10000

Forming width

410-710MM(460-760MM materials)

Forming length

600-1220MM

Forming height

200MM

Thickiness of materials

0.2-1.5MM

Production power

220-500times/hour(according to products)

power

380Vs/220Vs/50Hzs(Three mutually four lines)

Furnace power

18-35KW

Required to install air pump

20HP

Mechanistic Dimensions

L6800*W1600*H2650MM

Net weigh

3000KG


Rotary Type Pulp Molding Machine , Egg Box Machine 1

Rotary Type Pulp Molding Machine , Egg Box Machine 2
