Product Description
1. This production line is configured by 30-eggs tray as standard, if it is used to produce egg carton, fruit tray, coffee tray, etc, it needs auxiliary equipment, like hot press machine, sticker, or printing machine etc. Corresponding area, total power, worker quantity must be increased.
2. The water is recycled, but because it was waste water from beginning, it became dirty when it recycled several times, it needs to be changed. For water lacked area, it can install sewage disposal system for saving water cost.
Technical data
| Item |
Information |
Notes |
| Output |
1000pcs/h |
30 packed egg tray
(60~90g)
|
| Workshop recommendation |
≥200m2 |
Length≥20m;width≥10m;height≥6m;
(It could be adjusted according to the user's existing workshop)
|
| Type of Material |
Waste paper |
Newspaper/Carton/Paper box/Books/
Corrugated paper etc.
|
| Electricity consumption |
23-30kW·h/hr |
Full throttle operation |
| Material consumption |
65~80kg/hr |
30 packed egg tray
(60~90g)
|
| Water consumption |
150-180kg/hr |
30 packed egg tray
(60~90g)
|
| Operator Required |
2-4 people/shift |
24hours, 3shift |
| Container requirement for Transport |
1 of 20’GP container |
Whole production line |
This production line mainly include three parts:
1.Pulping system: Hydrapulper ,Pulp pump ,Air compressor,agitator,Self priming pump,pulping machine.

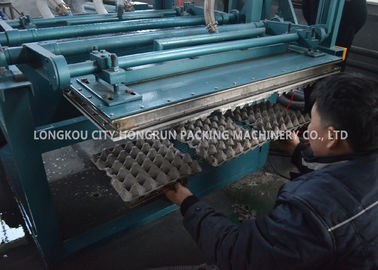

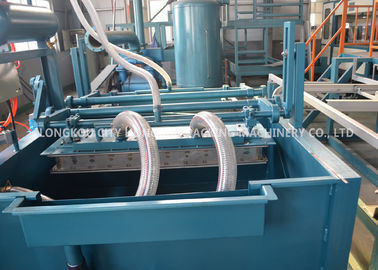

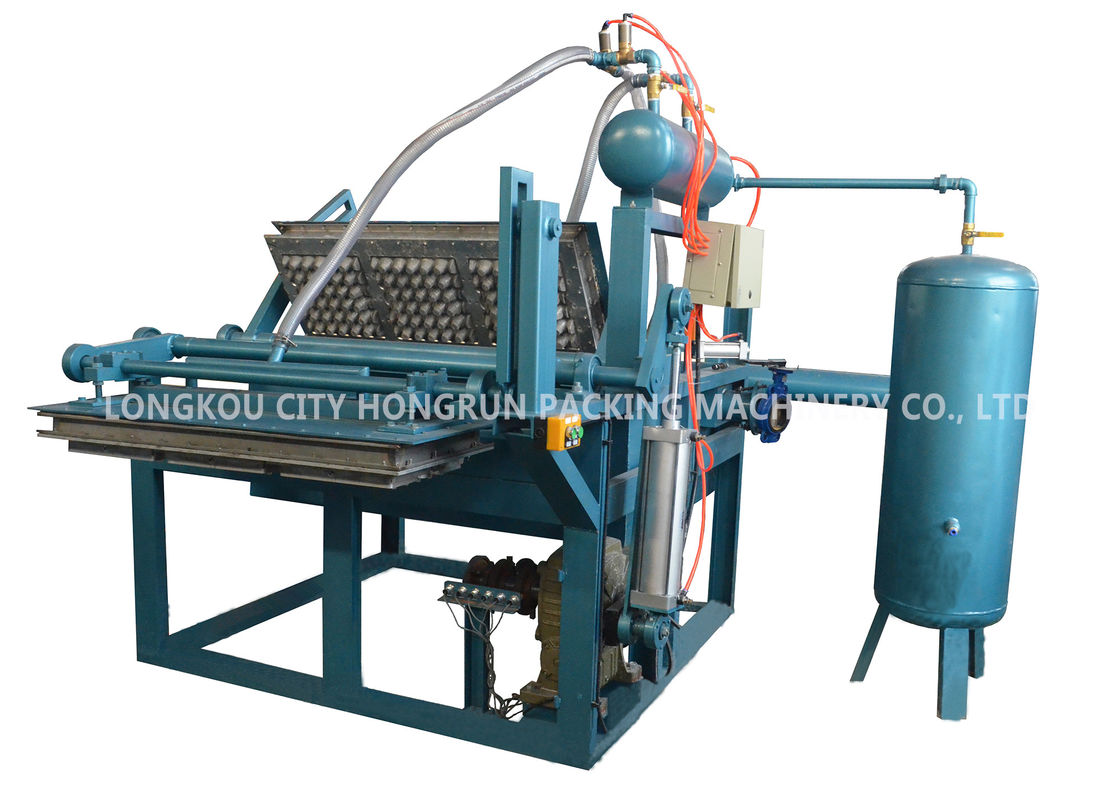

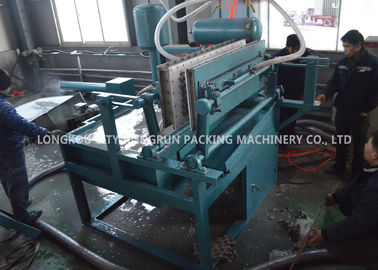

2.Forming system: Full automatic egg tray forming machine, Vacuum pump , High pressure washer,Negative pressure tank , mould, Transfer mould, baler .
3.Drying system: There are 2 kinds of drying system. One is metal, the other is brick. The conveyor plate can be one layer and multi-layer, direct combustion hot air circulation. Using the imported or joint venture brand burner (domestic uses the stove bar), equipped with an automatic control cabinet.
Whole production line include pulping system, egg tray forming system, egg tray drying system and egg tray packing system.Raw material is most of all kinds of waste paper, final product can be egg trays, egg cartons, egg box,fruit tray,coffee holder,shoe tray and so on. Drying system can be choose, it according to local conditions, we have natural sun dry, brick dryer line, metal dryer line, customer can choose it according to your budget.
Feature:
1. low invest, high profit,suitable for home business
2. Environmental friendly,waste water can recycle, no pollution
3. Easy operation, no need installation
4. Low power consumption
5. When replace mould, final product can customized.
Packing
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
Terms of delivery
Latest date of shipment rime:15-20 working days after reciept prepayment.
Payment terms:
30% advance payment by TT, 70% befor delivery the goods.Or 100% Paid by L/Cat sight against shipping documents
