Customized Color Pulp Egg Tray Equipment Recycled Paper Processing Machine

Name: Customized Color Pulp Egg Tray Equipment Recycled Paper Processing Machine
Brand: HONGRUN
SKU: HRZ-4000M
Rating: 4.5 (130 reviews)

Large Image : Customized Color Pulp Egg Tray Equipment Recycled Paper Processing Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	HONGRUN
Certification:	ISO9001, CE, SGS, BV, TUV
Model Number:	HRZ-4000M

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	negotiation
Packaging Details:	Standard Export Packaging
Delivery Time:	About 75 days
Payment Terms:	T/T, L/C
Supply Ability:	100SETS PER YEAR

Contact Now

Detailed Product Description

Voltage:	220V50HZ/380V50HZ	Product Type:	Egg Tray Machine
Power(w):	104KW	Condition:	New
Capacity:	4000-4500pcs/hr	Raw Material:	Recycled Paper
Color:	Customized Color	Finished Products:	Egg Tray /wine Tray/yogurt Tray /fruit Tray/egg Box Ect.
Type:	Full Automatic Rotary Type	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Drying Type:	Metal Multi-layer Dryer	Fuel Type:	Natural Gas, Diesel Oil, Wood, Coal, Biomass, Electricity
High Light:	pulp molding machine , pulp molding equipment

New Technology Pulp Egg Tray Equipment Recycled Paper Processing Machine

Introduction:
Egg tray making machine is a kind of environmental protection equipment. It can make egg box, paper egg tray, fruit
Tray, industrial tray and so on. The material is waste paper, which can help you save cost. This mainly producing the pulp molded products, such as egg tray, egg box, fruit tray, coffee tray. Material for the molded pulp products is waste paper, corrugated paper, waste newspaper, magazine.

Egg tray production line is a combination of several pieces of equipment and component.
Generally, the egg tray production line is constituted by five large-scale systems:

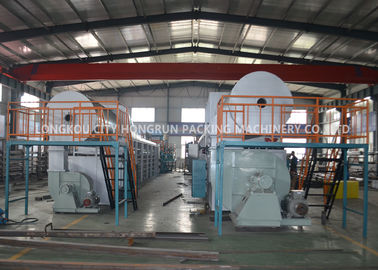

Pulp Making System
The waste paper will be put into the hydrapulper and it will be smashed and mixed with water to become pulp, then the pulp come
into pulp tanks after filtered by the vibration screen, we equipped the refiner to grind the pulp to get the better pulp.

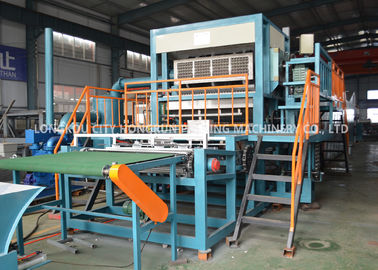

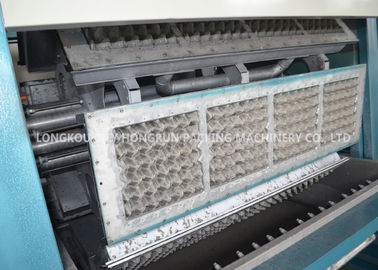

Egg tray molding machine
The reciprocating-type paper pulp molding machine is applied to small capacity investment for producing molded pulp products,
the rotary type paper pulp molding machine is the most popular machine model for big production capacity requirement, it has
several advantages, like high production efficiency, good dehydration effect, etc.

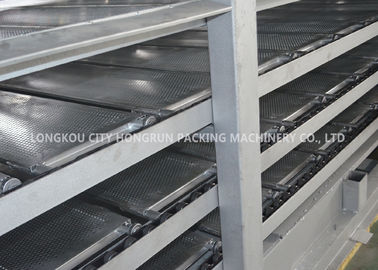

Egg tray drying system
In addition, we equipped the multilayers drying system, which can reduce the fuel and power energy consumption, workshop requirement etc.

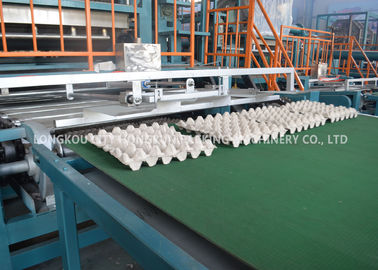

Egg tray collection system
This system includes the automatic palletizing machine and pneumatic compaction machine, the palletizing machine can count the egg trays automatically,
Electric control system
The whole production line is controlled by the PLC program, which can make the production process fully automatic running, and
can minimize labor costs.

Customized Color Pulp Egg Tray Equipment Recycled Paper Processing Machine 0

Customized Color Pulp Egg Tray Equipment Recycled Paper Processing Machine 1

Technical parameter

Item	Information	Notes
Output Range	4000pcs/h	30 packed egg tray(60~80g)
Workshop recommendation	>=525m²	Length>=35m;width>=15m;height>=6m; (It could be adjusted according to the user's existing workshop)
Type of Material	Waster paper	News paper/Carton /Paper box/Books/ Corrugated paper etc.
Material consumption	250~280kg/h	30 packed egg tray (65~70g)
Water consumption	650-1000kg/h	30 packed egg tray (65~70g)
Electricity consumption	110kw	Full throttle operation
Fuel consumption (approximately)	LPG 25~32M³/h	Choose one from the three types of fuel
	natural gas 75~95 M³/h
	diesel 60~80kg/h
Operator Required	4~6 people/shift	24 hours ,3 shift
Container requirement for Transport	4 of 40’HQ container	Whole production line

Working principle of egg tray forming machine:

Water paper and water added into the pulper, then delivered to the slurry storage tank, using blender to stirring pulp uniform and delivered to the slurry tank, stirring the pulp to a certain concentration delivered to the molding machine, producing the egg tray, then transport to the drying hole by conveyor belt, after the egg tray drying, finally closed care and package it.

After-sales Service

Our company view adhering to the "excellent quality, customer satisfaction" service concept, to provide you with excellent products and perfect service.
Our company keep the contract and reputation. Quality first, products guarantee a year, as it is quality problem, free replacement.
For every purchase of our company's products, the company can send technicians to guide the installation and debugging, and can undertake the design of process and equipment installation.
Our company ensure that supply of parts discount all the year round.
