|Voltage:||220V50HZ/380V50HZ||After-sales Service Provided:||Engineers Available To Service Machinery Overseas|
|Capacity:||2000-2500 Pcs/h||Raw Material:||Waste Paper,Carton And Newspaper|
|Product Type:||Egg Tray Machine,Egg Box Machine||Processing Type:||Pulp Molding Machine|
|Finished Products:||Egg Tray Egg Carton'/egg Plate/egg Box,wine Tray||Fuel:||Diesel,Natural Gas,Heavy Oil,LPG|
automatic egg tray making machine,
egg tray manufacturing plant

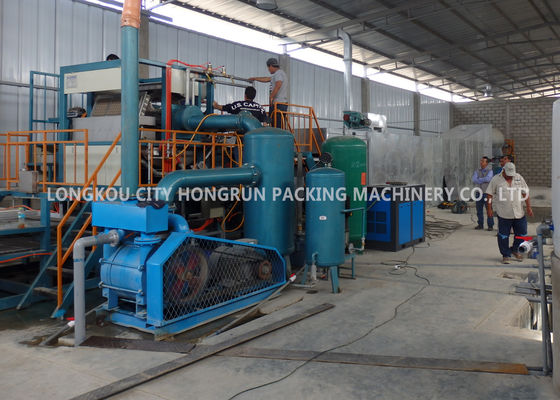

2000PCS / H Paper Pulp Chicken Egg Tray Making Machine With CE Certification
Egg tray forming machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. After such working procedure as transferring moulds, releasing moulds to complete paper tray production. Our forming machines selecting of high quality electronic devices and pneumatic components,high performance and long service life.
(1) Put the raw material into the pulper and add an appropriate amount of water for a long time to stir the waste paper into pulp and store it in the storage tank.
(2) Put the pulp in the slurry tank into the pulping tank, adjust the pulp concentration in the pulping tank, and further stir through the homogenizer through the white water of the return pool and the thick slurry of the storage tank. After adjusting to the applicable pulp, put it into the feeding pool to be used in the molding system.
Equipment used: pulping machine, homogenizer, slurry pump, vibrating screen, pulp disintegrator
2. Forming system
(1) The pulp in the supply tank is supplied into the molding machine, and is adsorbed by the vacuum system, and the pulp is left on the mold by the mold on the equipment to be formed, and the white water is sucked and transported back into the pool through the vacuum pump.
(2) After the mold is adsorbed, the transfer mold is blown out by the positive pressure of the air compressor, and the molded product is blown from the molding die to the rotary mold, and is sent out by the transfer mold.
Equipment used: molding machine, mold, vacuum pump, vacuum tank, pump, air compressor, mold cleaning machine
3. Drying system
(1) Natural drying method: The product is dried directly by weather and natural wind.
(2) Traditional drying: brick tunnel kiln, heat source can choose natural gas, diesel, coal, dry wood,A heat source such as liquefied petroleum gas.
(3) New multi-layer drying line: 6-layer metal drying line can save more than 30% energy compared to transmission drying. The main heat source is clean energy such as natural gas, diesel oil, liquefied petroleum gas and methanol.
4. Finished product auxiliary packaging
(1) Automatic stacking machine
(3) Transfer conveyor
|Output Range||2000pcs/h||30 packed egg tray(60~80g)|
Length≥32m;Width≥15m;Height≥6m; (It could be adjusted according
to the user's existing workshop)
|Type of Material||Waste paper||Newspaper/Carton /Paper box/Books/ Corrugated paper etc.|
|Material consumption||120~160kg/h||30 packed egg tray(60~80g)|
|Water consumption||265-350kg/h||30 packed egg tray(60~80g)|
|Electricity consumption||70-90kw||Full throttle operation|
|LPG 30~40 kg/h||Choose one from the three types of fuel|
|Natural gas 35~50 m3/h|
|Diesel 30~40 kg/h|
|Operator Required||4~6 people/shift||24hours, 3shift|
|Container requirement for Transport||
2 of 40’HQ container +
1 of 20’GP container
|Whole production line|
Production flow chart
