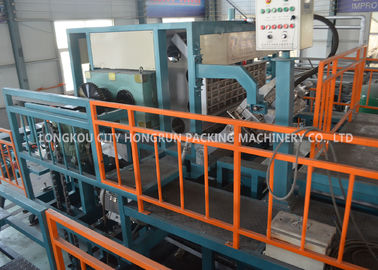

380V 50HZ Recycled Pulp Tray Machine / Egg Carton Production Line

380V 50HZ Recycled Pulp Tray Machine / Egg Carton Production Line
380V 50HZ Recycled Pulp Tray Machine / Egg Carton Production Line 380V 50HZ Recycled Pulp Tray Machine / Egg Carton Production Line 380V 50HZ Recycled Pulp Tray Machine / Egg Carton Production Line 380V 50HZ Recycled Pulp Tray Machine / Egg Carton Production Line 380V 50HZ Recycled Pulp Tray Machine / Egg Carton Production Line

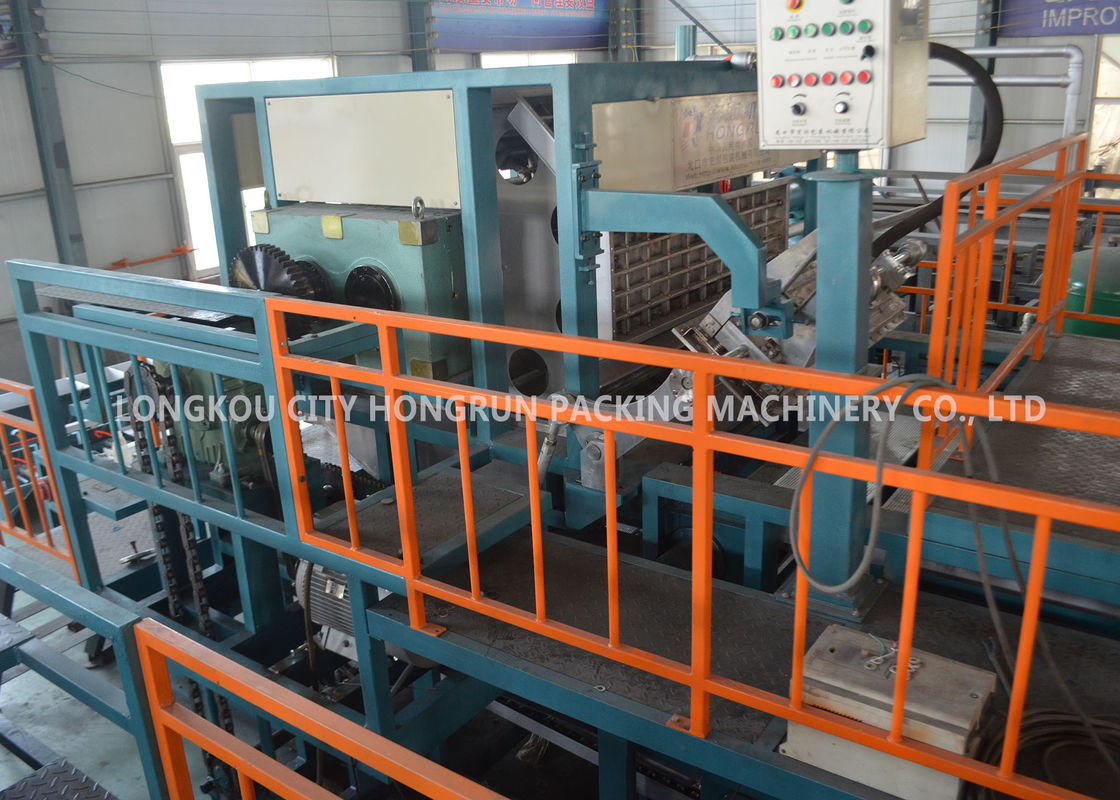

Large Image :  380V 50HZ Recycled Pulp Tray Machine / Egg Carton Production Line

Product Details:

Place of Origin: CHINA
Brand Name: HONGRUN
Certification: ISO9001, CE, SGS, BV, TUV
Model Number: HRZ-4000M

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Standard Export Packaging
Delivery Time: 75 days
Payment Terms: T/T, L/C
Supply Ability: 100SETS PER YEAR
Detailed Product Description
Type: Full Automatic Rotary Type Product Name: Waste Carton Paper Pulp Recycled Moulding Egg Tray Making Machine
Capacity: 4000-4500pcs/hr After-sales Service Provided: Field Installation,commissioning And Training
Voltage: 220V50HZ/380V50HZ Weight: 30T
Processing Type: Pulp Molding Machine Product Type: Egg Tray Machine
Warranty: One Year Condition: New
Raw Material: Recycled Paper
High Light:

pulp egg tray making machine

,

pulp molding machine

Recycled Pulp Egg Packaging Tray Machine Egg Carton Production Line



Egg tray forming machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. After such working procedure as transferring moulds, releasing moulds to complete paper tray production. Our forming machines adopt advanced PLC programmable controller; Selecting of high quality electronic devices and pneumatic components; Using stainless steel pulp barrels with high performance and long service life.



Raw material:

Raw material: waste old book, waste newspaper, waste carton, etc.

Drying fuel: coal, wood, diesel, natural gas, lp-gas



Main process:
1.Paper Pulp Making System: It is mainly comprised of hydrapulper, pulp pump, multi-function refiner machine, blender, control cabinet, etc.
2.Egg tray making machine : This part mainly is the egg tray forming machine.We could produce the forming mould and transfer mould based on our customers request.
3.Drying machine : When the egg tray be made over by the forming machine, the egg tray will be put on the drying line by transfer mould,they will across the drying channel, then you can get the dry tray! there are Multi - metal dryer, civil dryer .and drying fuels: coal, wood, diesel, natural gas, liquefied petroleum gas and so on.



We give the solution of the pulp moulding line as follows:

Paper Pulp Making System

Hydro-pulper,Vibra sieve machine,White water pump,

pulp pump,Blender,Pulp making system

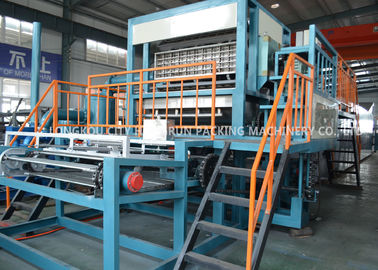

Tray Moulding System

Rotary Molding Machine ,Forming Mold,Unloding Mold,

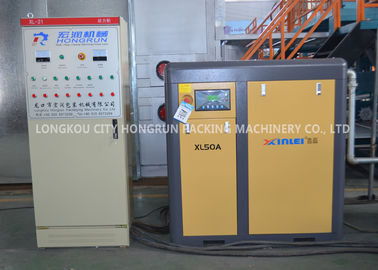

Vacuum Pump,Air Compressor,Autospray,Vacuum Tank,Wate

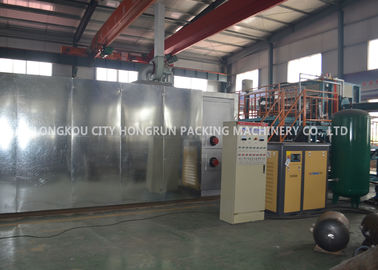

Drying System

Metal drying crust,Blower,Burner,Wet exhauster,Sheet Conveyer,

Conveyer front driver,Conveyer rear driver,Packer machine



380V 50HZ Recycled Pulp Tray Machine / Egg Carton Production Line 0380V 50HZ Recycled Pulp Tray Machine / Egg Carton Production Line 1380V 50HZ Recycled Pulp Tray Machine / Egg Carton Production Line 2

Technical data



Item Information Notes
Output Range 4000pcs/h 30 packed egg tray(60~80g)
Workshop recommendation >=525m2

Length>=35m;width>=15m;height>=6m;

(It could be adjusted according to the user's existing workshop)

Type of Material Waster paper

News paper/Carton /Paper box/Books/

Corrugated paper etc.

Material consumption 250~280kg/h 30 packed egg tray (65~70g)
Water consumption 650-1000kg/h 30 packed egg tray (65~70g)
Electricity consumption 110kw Full throttle operation

Fuel consumption

(approximately)

LPG 25~32M3/h Choose one from the three types of fuel
natural gas 75~95 M3/h
diesel 60~80kg/h
Operator Required 4~6 people/shift 24 hours ,3 shift
Container requirement for Transport 4 of 40’HQ container

Whole production line



The parameters Advantage of egg tray machine production line
1 High automation, low labor cost.
2.Low production cost
3.Energy saving(by 30%-50% compared with other manufacturer)
4.Water saving(complete water treatment system equipped)
5.Efficient Multilayer dryer, saving space(by 33% compared with traditional dryer)
6.Stable final product quality(same weight, same dimension,strong and good look)



Our Services

Pre-sale service:
help you design the equipment layout. 2. take you to see our factory. 3. answer all your question.
In-sale service: ensure the quality and delivery time.
After-sale service:
We supply videos and installation instruction to teach how to install the equipment.
