AC380V / 50Hz Foam Plate Making Machine / Lunch Box Making Machine

AC380V / 50Hz Foam Plate Making Machine / Lunch Box Making Machine
AC380V / 50Hz Foam Plate Making Machine / Lunch Box Making Machine AC380V / 50Hz Foam Plate Making Machine / Lunch Box Making Machine AC380V / 50Hz Foam Plate Making Machine / Lunch Box Making Machine AC380V / 50Hz Foam Plate Making Machine / Lunch Box Making Machine

Large Image :  AC380V / 50Hz Foam Plate Making Machine / Lunch Box Making Machine

Product Details:

Place of Origin: CHINA
Brand Name: HONGRUN
Certification: ISO9001, CE, SGS, BV, TUV
Model Number: HR-M1080

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Standard Export Packaging
Delivery Time: 90days
Payment Terms: T/T, L/C
Supply Ability: 100SETS PER YEAR
Detailed Product Description
Product Type: Fast Food Box Voltage: AC380V/50Hz
Weight: 16 Ton Warranty: One Year
Processing Type: Foaming Machine Automatic: Fully Automatic
Forming Pressure: 35T Type: Disposable Foam Container Making Machine
Material: Polystyrene,sheet Roll Forming Area: 1000*1100mm
Max. Depth: 80mm
High Light:

thermocol plate making machine

,

disposable plate making machine

Disposable Polystyrene PS Foam Plate / Lunch Box Making Machine

Product Description



The production line includes 3 units:

(1) PS foam sheet extrusion line: make PS foam sheet from raw material

(2) Automatic Vacuum Forming and Cutting Integrated Machine: make PS sheet to finished products, such as PS foam tray, PS foam box etc. (we can design mold according to customer requirements)

(3) PS Crushing and Recycling Machine: recycle waste products to granules, the can mix with new material and put into PS foam sheet extruder again.

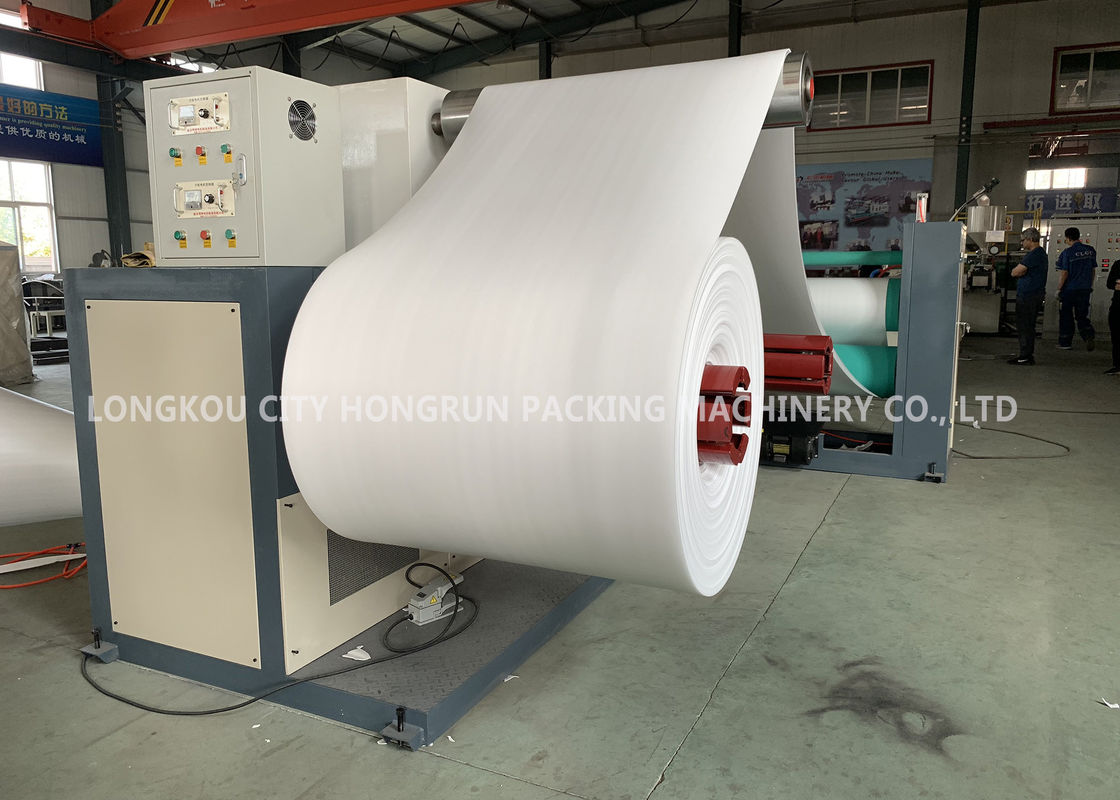

1. PS foam sheet extrusion line



This production line adopts double-screw foam sheet extrusion technology. PS foam sheet is a kind of new-type packing material with the features of heat preservation, safety, sanitation and good plasticity. It’s mainly used to make various types of food containers, such as lunch box, dinner trays, bowls etc. by thermoforming. It’s also can be used to make advertisement board, industrial products packing and so on. It has stable performance, big capacity, high automation and yields quality products.



AC380V / 50Hz Foam Plate Making Machine / Lunch Box Making Machine 0

Item Unit Parameter
Model   105/120
Applicable materials   GPPS granule(123P/525)
Thickness of sheet mm 1-3.5
Width of sheet mm 640~1080
Foaming rate   12-20
Weight of product kg/m³ 50~83
Output kg/h 150~200
Rated power(approximately) KW 180
Power supply   Three phase 380V/50Hz
External dimension mm 24000×4100×2800
Complete weight Ton About12

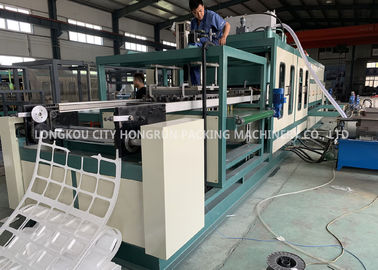

2. Automatic Vacuum Forming and Cutting Integrated Machine



This machine developed by combining the domestic and foreign equipment and advantages, is a set of hydraulic pneumatic servo drive for an automatic forming cutting stacking machine. The main electrical components, such as vacuum pump,PLC,made in Japan and Germany, ensure the reliability of the equipment operation, and can be used for hot forming process PS material which is used to produce different food container, such as lunch box, hamburger box, pizza box, bowl, plate, dish, etc. Forming, cutting, stacking is done in the same machine, saving labor, improving efficient, lowing labor intensity and reducing production cost.



The biggest advantage is forming cutting and product collection integration, reduce work link, produce the product can be stacked directly collect, this will greatly save time reduce the intensity of work and greatly saves labor.AC380V / 50Hz Foam Plate Making Machine / Lunch Box Making Machine 1

Main technical parameters

Item Unit Parameter
Model   HR-M1080
Power supply   Three phase 380V/50Hz
Production efficiency s/mold 2.8-5
Installed power (approximately) KW 150
Total weight (approximately) Ton 16-18
Mounting size m 14.2×5.8×3.14
Compressed air capacity m3/min 0.4~0.7
Compressed air pressure Mpa 0.7
Cooling water T/h 1



3. PS foam material recycling machine



This machine is special for polystyrene. It adopts double screw plasticification, increasing compress ratio. The whole machine consists of crusher, feeder, extruder, cooling tank and granulator. It can recycle many foamed products, such as PS, XPS, EPS etc.



Model HR-180+120/100
Screw Diameter Φ180+120/Φ100
Total power 80kw
Power supply three phase 380V/50Hz
Number of heating zones 7
Throughput 120-200kg/h
Dimension size 4300*1100*2000
Total weight 3
Applicable materials PS foam scrap



Customers-factory

AC380V / 50Hz Foam Plate Making Machine / Lunch Box Making Machine 2

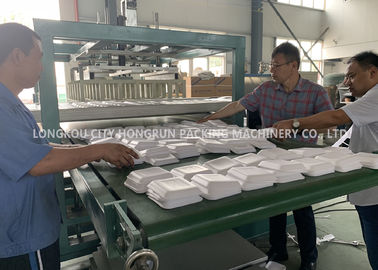

Application

AC380V / 50Hz Foam Plate Making Machine / Lunch Box Making Machine 3

AC380V / 50Hz Foam Plate Making Machine / Lunch Box Making Machine 4
