Payment & Shipping Terms:
|Condition:||New||Product Type:||Egg Tray Machine|
|Processing Type:||Pulp Molding Machine||After-sales Service Provided:||Engineers Available To Service Machinery Overseas|
|Raw Material:||Waste Paper||Finished Products:||Egg Tray /wine Tray/yogurt Tray /fruit Tray/egg Box Ect.|
|Type:||Full Automatic Rotary Type|
Paper moulding machine,
injection molding machines
Automatic Egg Tray Making Machine Pulp Molding for Egg Tray 2000pcs/h
1. Product Description
1. This machine mainly produces pulp molded products, such as egg tray, egg box, fruit tray, coffee tray, etc.
2. The material for the molded pulp products is waste paper, corrugated paper, waste newspaper, magazine.
3. We have different types of molding machine for choosing according to your requirements.such as 800-1000pcs per hour, 2000pcs per hour, 3000pcs per hour, 4000pcs per hour,-and so on. And we will supply all-round service for inquiry, pricing, technique teaching, installation, and maintenance.
4. Fuel can be coal, natural gas, diesel, wood.
5. Egg tray forming machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mold by vacuum to get various shape and ratio of wet and dry by regulating time.
6. Our forming machines adopt advanced PLC programmable controller; selecting high-quality electronic devices and pneumatic components; using stainless steel pulp barrels with high performance and long service life.

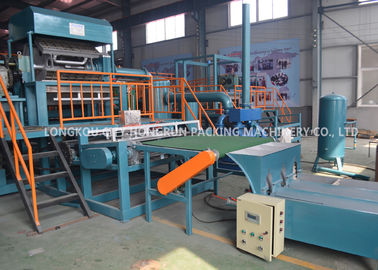

Our egg tray machine has four parts: Pulping system, forming system, drying line and packing part
Pulping system is mainly comprised of hydropulpter, pulp pump, multi-function refiner machine, blender, control cabinet, etc.
It can make the pulp by the waste paper. And it is the first step in making process!

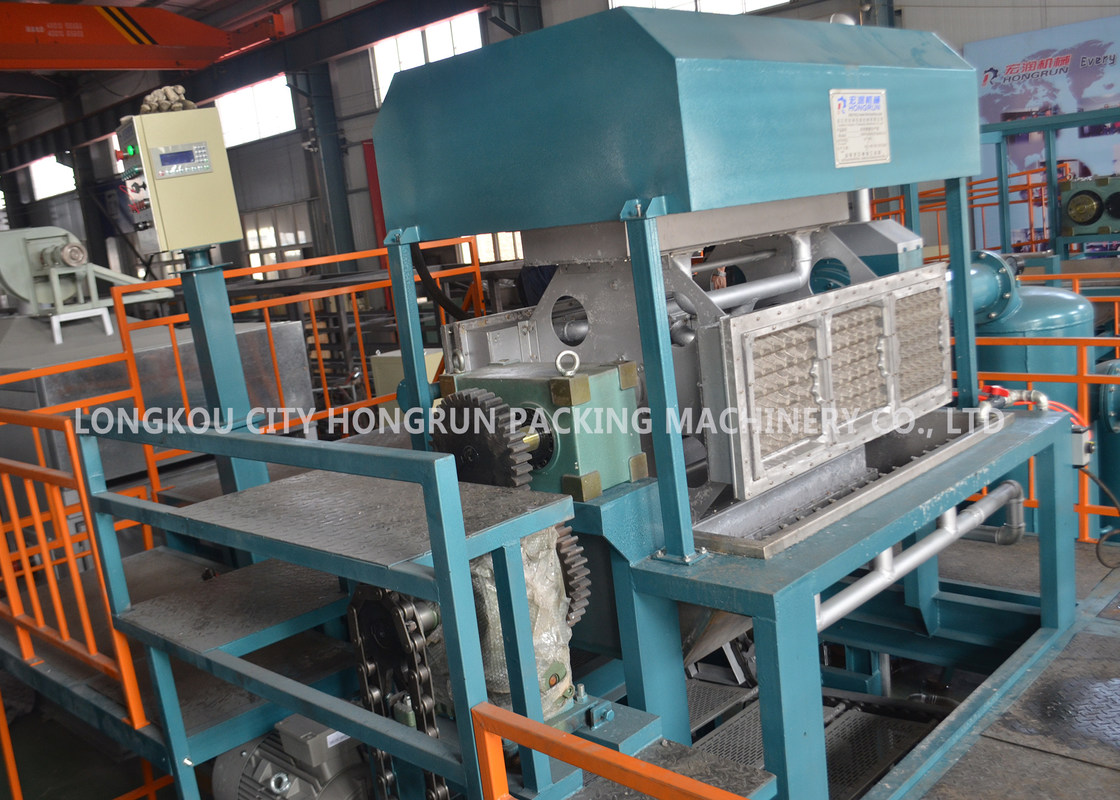

This part mainly is the egg tray forming machine. We could produce the forming mold and transferring mold based on our customer's request. The material of the mold could be Aluminum, Resin, Plastic.

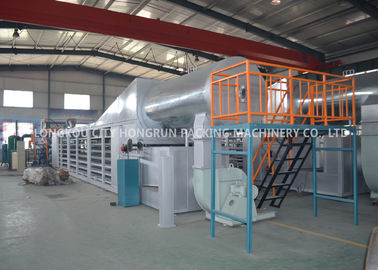

This is very important in all of the lines. When the egg tray is made over by the forming machine, the egg tray will be put on the drying line, they will across the drying channel, then you can get the dry tray!
This is the last step when we get the finished tray from the drying line, we can packing them.
If you want to buy the best egg tray machine or pulp molding machine, please contact me! I can help you!
2. Production process
3. Technical data
|Output Range||2000pcs/h||30 packed egg tray(60~80g)|
(It could be adjusted according to the user's existing workshop)
|Type of Material||Waste paper||
Newspaper/Carton /Paper box/Books/
Corrugated paper etc.
|Material consumption||120~160kg/h||30 packed egg tray(60~80g)|
|Water consumption||265-350kg/h||30 packed egg tray(60~80g)|
|Electricity consumption||70-90kw||Full throttle operation|
|LPG 30~40 kg/h||Choose one from the three types of fuel|
|Natural gas 35~50 m3/h|
|Diesel 30~40 kg/h|
|Operator Required||4~6 people/shift||24hours, 3shift|
|Container requirement for Transport||
2 of 40’HQ container +
1 of 20’GP container
|Whole production line|
