Automatic Egg Tray Pulp Molding Machine

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Automatic Egg Tray Pulp Molding Machine

Product Details:

Place of Origin: CHINA
Brand Name: HONGRUN
Certification: ISO9001, CE, SGS, BV, TUV
Shaping machine type: Rotary type
Raw material: recycled paper
Fuel type: natural gas/diesel oil/coal
Warranty: ONE YEAR
Capacity: 50,000pcs per working day

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Standard Export Packaging
Delivery Time: 60days
Payment Terms: T/T, L/C
Supply Ability: 100SETS PER YEAR
 Quality Guarantee: one year
Detailed Product Description
High Light:

pulp molding machine


Paper moulding machine



Automatic Egg Tray Pulp Molding Machine



Quick Details
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong China (Mainland)
Voltage: 380V
Power(W): 104KW
Dimension(L*W*H): 30*4*4M
Weight: 30T
Warranty: ONE YEAR
Shaping machine type: Roller type
Raw material: Recycled paper
Fuel type: Natural gas/Diesel oil/Coal



Product Description:


Pulp Moulding Machine is known as egg tray line for using massively in produce egg tray.

     Pulp Moulding Machine, which uses waste paper, cardboard, leftover material of paper mill, by hydraulic pulper, mix making a certain dense pulp, and pulp is absorbed by vacuum of special metal moulding to become wet products, through drying , and shaping to become finished products.

    Pulp Moulding Line processing makes use of recycled water and does not lead to water or air pollution. Finished packaging products can be recycled after being used in storage, transport, and sales. After shredding, they are easy to be decomposed as paper, even if discarded into the natural environment.

    Automatic pulp molding production lines can be mass production of various food container, egg tray, lunch boxes and so on.

    The major equipment of the machine are three parts include: Pulp Making System, Molding System, Drying system and packing system.



Pulp Making System


    Hydraulic, Pulp Pump, Pulp Screen Machine, Pulp Breaking Machine, Stirrer and so on.



Moulding System


   Rotary Type Molding Machine, Vacuum Pump, Air Compressor, Vacuum Tank, Water Pump and so on..

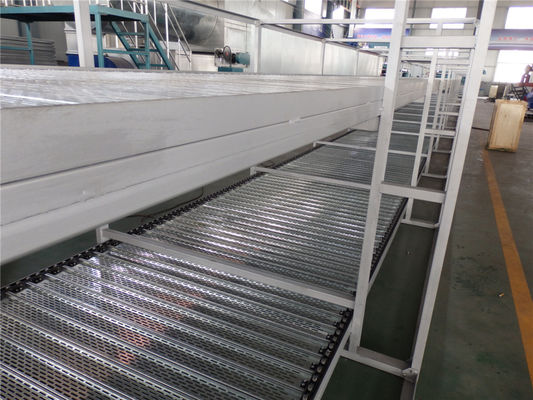

Drying System


  Bellows, Air Blower, Conveyer



Packaging Machine


  High quality of pulp molding machine for paper trays could design according to the customer’ requirement.


Flow Chart


Automatic Egg Tray Pulp Molding Machine 0


For pulp molded 30-cell egg trays : first the worker will weight the raw material and put them into the conveyor. Then the pulping ,forming, drying and stacking will be finished automatically. After drying, the finished products will be packed by workers.A hot pressing section should be added in the production of pulp molded egg box/carton(6-cell,10-cell,12-cell,6+6-cell,15-cell),fruit tray and cup carrier after drying because of shrinking.

The egg box/carton can be labelled or printed   after hot pressing. These processes could be finsihed manually or automatically.


Technology Parameters



Forming width

410-710MM(460-760MM materials)

Forming length


Forming height


Thickiness of materials


Production power

220-500times/hour(according to products)


380Vs/220Vs/50Hzs(Three mutually four lines)

Furnace power


Required to install air pump


Mechanistic Dimensions


Net weigh


Automatic Egg Tray Pulp Molding Machine 1
Automatic Egg Tray Pulp Molding Machine 2
Automatic Egg Tray Pulp Molding Machine 3
