Automatic Pulp Molding Machine , Medium Paper Egg Tray Machine

Automatic Pulp Molding Machine , Medium Paper Egg Tray Machine
Automatic Pulp Molding Machine , Medium Paper Egg Tray Machine Automatic Pulp Molding Machine , Medium Paper Egg Tray Machine Automatic Pulp Molding Machine , Medium Paper Egg Tray Machine Automatic Pulp Molding Machine , Medium Paper Egg Tray Machine Automatic Pulp Molding Machine , Medium Paper Egg Tray Machine

Large Image :  Automatic Pulp Molding Machine , Medium Paper Egg Tray Machine

Product Details:

Place of Origin: CHINA
Brand Name: HONGRUN
Certification: ISO9001, CE, SGS, BV, TUV
Raw material: Recycled paper
Fuel type: Natural gas/diesel oil/coal
Warranty: ONE YEAR
Capacity: 1000-12000pcs/h

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Standard Export Packaging
Delivery Time: 75days
Payment Terms: T/T, L/C
Supply Ability: 100SETS PER YEAR
 Quality Guarantee: One year
Detailed Product Description
Warranty: One Year Voltage: 220V/380V
Condition: New Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas
Name: Egg Tray Making Machine Color: Customized Color
Finished Products: Egg Tray /wine Tray/yogurt Tray /fruit Tray/egg Box Ect. Product Name: Egg Tray Making Machine
Type: Full Automatic Rotary Type
High Light:

pulp molding machine

,

Paper moulding machine

Automatic Pulp Molding Machine , Medium Paper Egg Tray Machine





Our molding machines and molding dies are fully designed by computer-assistant engineering and high technology. It has been proven high efficiency, low maintenance, and energy saving during the ten-year practice. The pulp molding system can use all kinds of waste paper to produce high quality molded fiber products. Such as, egg trays, egg boxes, apple trays, meat portion trays, vegetable portion trays, fruit portion trays, strawberry punnets, kidney trays, wine packs, can trays, seed pots, seed cubes, etc. it is a satisfyingly high return investment for the entrepreneurs or investors who wants a stable and consistent business.
A complete pulp molded production line consists of Stock Preparation System Section, Molding Machine Section, Continuous Drying Oven and Conveyor System, Process Instrumentation, Instrument, and Control Panels, Jobsite Installation Materials, Auxiliary Equipment, etc.



Equipment Process
1.Pulping system
(1) Put the raw material into the pulper and add an appropriate amount of water for a long time to stir the waste paper into pulp and store it in the storage tank.
(2) Put the pulp in the slurry tank into the pulping tank, adjust the pulp concentration in the pulping tank, and further stir through the homogenizer through the white water of the return pool and the thick slurry of the storage tank. After adjusting to the applicable pulp, put it into the feeding pool to be used in the molding system.
Equipment used: pulping machine, homogenizer, slurry pump, vibrating screen, pulp disintegrator

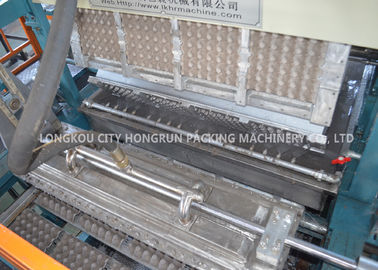

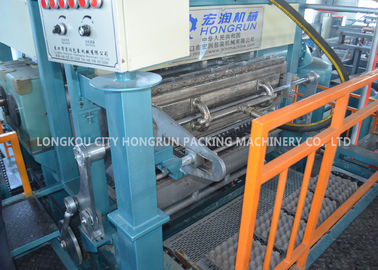

2. Forming system
(1) The pulp in the supply tank is supplied into the molding machine, and is adsorbed by the vacuum system, and the pulp is left on the mold by the mold on the equipment to be formed, and the white water is sucked and transported back into the pool through the vacuum pump.
(2) After the mold is adsorbed, the transfer mold is blown out by the positive pressure of the air compressor, and the molded product is blown from the molding die to the rotary mold, and is sent out by the transfer mold.
Equipment used: molding machine, mold, vacuum pump, vacuum tank, pump, air compressor, mold cleaning machine

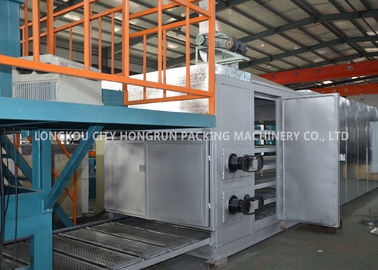

3. Drying system
(1) Natural drying method: The product is dried directly by weather and natural wind.
(2) Traditional drying: brick tunnel kiln, heat source can choose natural gas, diesel, coal, dry wood,A heat source such as liquefied petroleum gas.
(3) New multi-layer drying line: 6-layer metal drying line can save more than 30% energy compared to transmission drying. The main heat source is clean energy such as natural gas, diesel oil, liquefied petroleum gas and methanol.

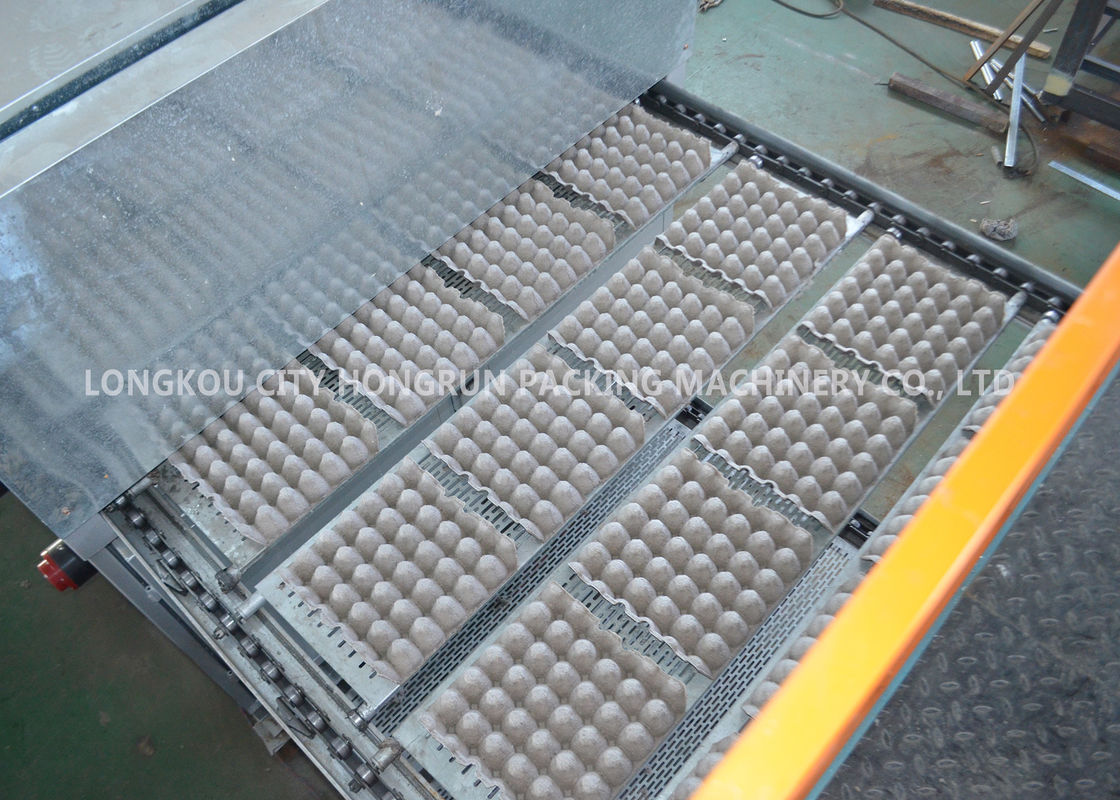

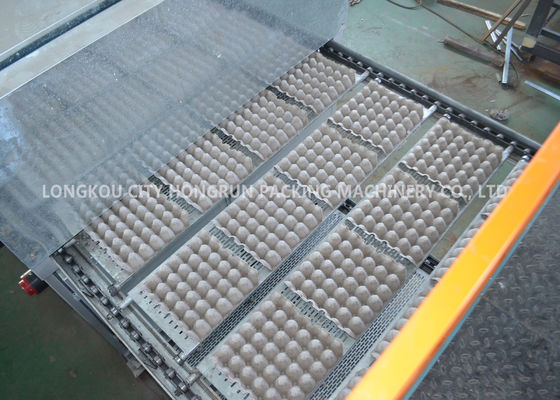

4. Finished product auxiliary packaging

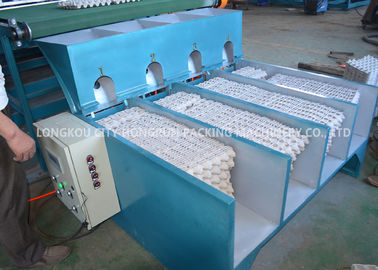

(1) Automatic stacking machine
(2) Baler
(3) Transfer conveyor



Automatic Pulp Molding Machine , Medium Paper Egg Tray Machine 0

Technical data



Item Information Notes
Output Range 4000pcs/h 30 packed egg tray(60~80g)
Workshop recommendation >=525m2

Length>=35m;width>=15m;height>=6m;

(It could be adjusted according to the user's existing workshop)

Type of Material Waster paper

News paper/Carton /Paper box/Books/

Corrugated paper etc.

Material consumption 250~280kg/h 30 packed egg tray (65~70g)
Water consumption 650-1000kg/h 30 packed egg tray (65~70g)
Electricity consumption 110kw Full throttle operation

Fuel consumption

(approximately)

LPG 25~32M3/h Choose one from the three types of fuel
natural gas 75~95 M3/h
diesel 60~80kg/h
Operator Required 4~6 people/shift 24 hours ,3 shift
Container requirement for Transport 4 of 40’HQ container Whole production line



Automatic Pulp Molding Machine , Medium Paper Egg Tray Machine 1
