Payment & Shipping Terms:
|Warranty:||One Year||Voltage:||380v 50hz Or Custom Made|
|Product Type:||Paper Tableware Machine||Dimension(l*w*h):||10*7*4m|
|Processing Type:||Pulp Molding Machine||After-sales Service Provided:||Engineers Available To Service Machinery Overseas|
|Capacity:||600kg/day||Raw Material:||Plant Fiber Pulp Board Of Reed, Straw, Bagasse, Bamboo, Wood, Et|
|Color:||Green||Finished Products:||Paper Lunch Box, Paper Plate,paper Cup Etc.|
pulp molding machine,
Paper moulding machine
Automatic Pulp Molding Machine Tableware Paper Plate Production Line One Year Warranty
|The main parameters|
|Machine composition||Six-axis robot (one set) four-axis robot(one set)|
|Reciprocating molding machine (one set)|
|Hot pressing machine (two sets)|
|Automatic trimming machine|
|Automatic counting stacker|
|Template size||880 x 880 mm|
Thermal oil heating or electric heating or steam heating
|The maximum boost pressure||28 tons, using gas-liquid boost|
|Product transfer method||external robot automatic transfer|
|Control system||PLC + touch screen control, main electrical components adopt Siemens brand.|
|Design capacity||600 kg / day|
|Maximum height of products||100mm|
|The above parameters are for reference only. Due to the continuous development of technology, the data will be updated from time to time.|
|Pulp molding equipment is a non-standard equipment, our company can provide targeted customized solutions according to customer needs.|
The pulp molding disposable tableware production line uses wood pulp and various types of straw pulp as raw materials, and is mixed into a pulp with a certain concentration through the processes of crushing, screening, grinding, adding chemical agents, etc., and then the pulp is made by vacuum. It is evenly attached to a special metal mold to form a wet blank product, and then a disposable paper pulp molded tableware product is produced through the drying, hot pressing, and sterilization processes.
Applicable industries: food processing industry, food supply industry, catering industry.

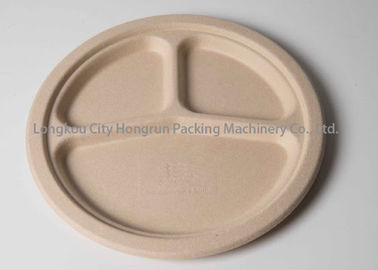

Uses: Production of pulp-molded tableware, pulp-molded fast food boxes, various plates, plates, soup bowls, and meat trays. Vegetable tray etc.
The forming machine and supporting equipment make pulp into tableware.We have various molding machines to make tableware. Different molding machines have different output. We can also design and customize according to your requirements.

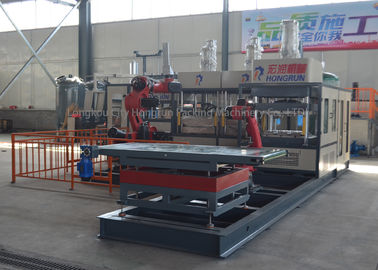

The fully automatic robot tableware intelligent machine is a pulp molding production line composed of a molding system, which has the following characteristics:
1. Intelligent system with high cost performance
2. Flexible, accurate and stable production operation
3. Safe and simple operation and maintenance
4. Modern remote intelligent production monitoring
Our company was founded in 1986 and is located in Longkou, Shandong. Our company currently covers an area of more than 6,000 square meters. Our company has successively passed the ISO9001 international quality system certification and the European Union CE certification. Our company mainly produces pulp molding equipment, including egg tray production line with recyclable waste paper and disposable pulp meal box equipment. At present, the equipment can be divided into two types: fully automatic and semi-automatic. The products produced can be used for eggs, fruits, industrial parts packaging, food and catering packaging, etc. Our equipment is exported to home and abroad, mainly exported to South America, Middle East, Africa, Central Asia, Europe, Southeast Asia and so on.
