Automatic Rotary Waste Paper Pulp Tray Machine Egg Tray Production Line

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Automatic Rotary Waste Paper Pulp Tray Machine Egg Tray Production Line

Product Details:

Place of Origin: CHINA
Brand Name: HONGRUN
Certification: ISO9001, CE, SGS, BV, TUV
Model Number: HRZ-4000M

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Standard Export Packaging
Delivery Time: About 75 days
Payment Terms: T/T, L/C
Supply Ability: 100SETS PER YEAR
Detailed Product Description
Warranty: 12 Months Product Type: Egg Tray Machine
After-sales Service Provided: Engineers Available To Service Machinery Overseas Raw Material: Waste Paper,waste Bin,old Carton
Power(w): 104KW Condition: New
Processing Type: Pulp Molding Machine Finished Products: Egg Tray Egg Carton,fruit Tray,coffee Tray,wine Tray
Type: Full Automatic Rotary Type Color: Customer Requests
Drying Type: Metal Multi-layer Dryer
High Light:

pulp egg tray making machine

,

pulp molding machine

Automatic Rotary Waste Paper Pulp Recycling Egg Tray Production Line



Our molding machines and molding dies are fully designed by computer-assistant engineering and high technology. It has been proven high efficiency, low maintenance and energy saving during the ten year practice. The pulp molding system can use all kinds of waste paper to produce high quality molded fibre products. Such as, egg trays, egg boxes, apple trays, meat portion trays, vegetable portion trays, fruit portion trays, strawberry punnets, kidney trays, wine packs, can trays, seed pots, seed cubes, etc. it is a satisfyingly high return investment for the entrepreneurs or investors who wants a stable and consistent business.

A complete pulp molded production line consists of Stock Preparation System Section, Molding Machine Section, Continuous Drying Oven and Conveyor System, Process Instrumentation, Instrument and Control Panels, Jobsite Installation Materials, Auxiliary Equipment, etc.



Main equipment

1. Pulp molding system: Hydraulic pulper, High-frequency vibration sieve frame, Pulp pump, Strengthening of self-priming pump, Agitator, Control cabinet of pulping system

2. Forming system: Rotary forming machine, Molds, Vacuum pump, Screw Air Compressor, Vacuum buffer tank, Air compressor storage tank, White Water pump, High-pressure water pump, Refiner machine, Power cabinet of forming system

3. Drying system: Conveyor, Blower, Induced fan, Burner, Bellows, etc

4. Packing system: Packing machine



Raw material :
1. Waste paper :Such as cardboard, cardboard boxes, newspapers, paper mills and other waste paper
2.Pulp board :Pulp board made of straw, bagasse, bamboo, wood and other raw materials
3.Plant Fibres :Palm fiber, straw, sugar cane and so on
Finished product: All kinds of egg tray , egg box ,fruit tray, wine tray, cup tray ,shoe tray ect.



Machine details

Item Information Notes
Output Range 4000pcs/h 30 packed egg tray(60~80g)
Workshop recommendation >=525m2

Length>=35m;width>=15m;height>=6m;

(It could be adjusted according to the user's existing workshop)

Type of Material Waster paper

News paper/Carton /Paper box/Books/

Corrugated paper etc.

Material consumption 250~280kg/h 30 packed egg tray (65~70g)
Water consumption 650-1000kg/h 30 packed egg tray (65~70g)
Electricity consumption 110kw Full throttle operation

Fuel consumption

(approximately)

LPG 25~32M3/h Choose one from the three types of fuel
natural gas 75~95 M3/h
diesel 60~80kg/h
Operator Required 4~6 people/shift 24 hours ,3 shift
Container requirement for Transport 4 of 40’HQ container Whole production line

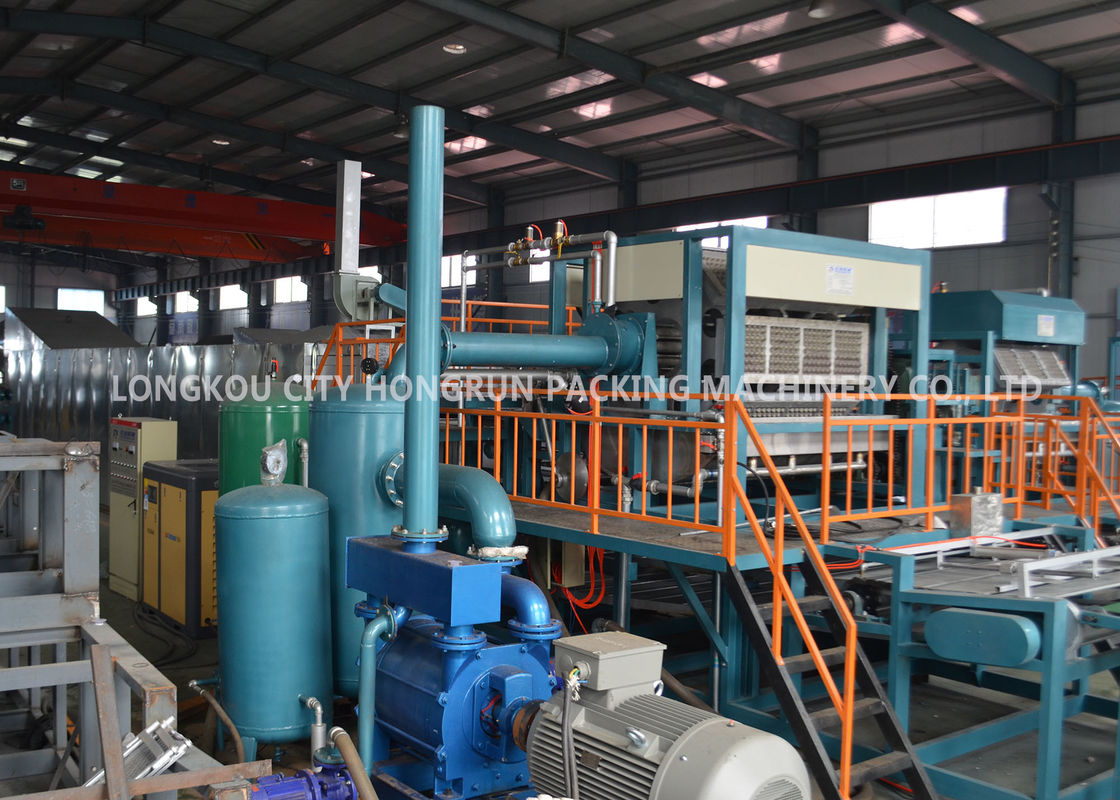

Automatic Rotary Waste Paper Pulp Tray Machine Egg Tray Production Line 0

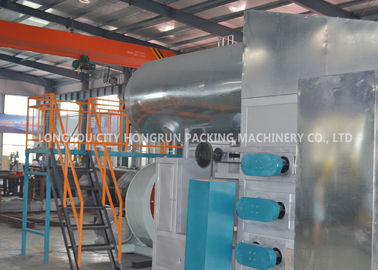

Automatic Rotary Waste Paper Pulp Tray Machine Egg Tray Production Line 1

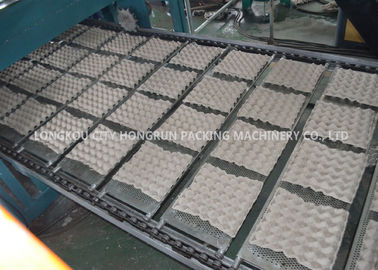

Automatic Rotary Waste Paper Pulp Tray Machine Egg Tray Production Line 2

Application

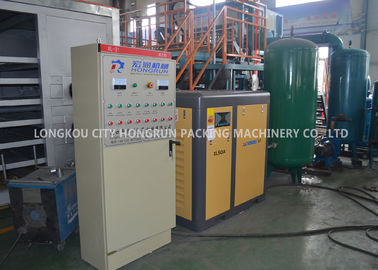

Automatic Rotary Waste Paper Pulp Tray Machine Egg Tray Production Line 3

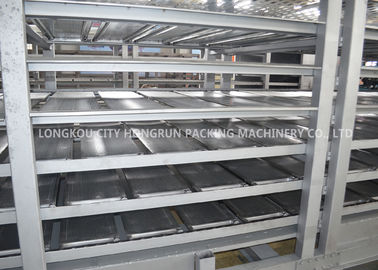

Automatic Rotary Waste Paper Pulp Tray Machine Egg Tray Production Line 4
