Automatic Take Away Foam Plate Machine Full Computerized PLC System

Automatic Take Away Foam Plate Machine Full Computerized PLC System
Automatic Take Away Foam Plate Machine Full Computerized PLC System Automatic Take Away Foam Plate Machine Full Computerized PLC System Automatic Take Away Foam Plate Machine Full Computerized PLC System Automatic Take Away Foam Plate Machine Full Computerized PLC System

Large Image :  Automatic Take Away Foam Plate Machine Full Computerized PLC System

Product Details:

Place of Origin: CHINA
Brand Name: HONGRUN
Certification: ISO9001, CE, SGS, BV, TUV
Model Number: HR-S1080

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Standard Export Packaging
Delivery Time: 45days
Payment Terms: T/T, L/C
Supply Ability: 100SETS PER YEAR
Detailed Product Description
High Light:

takeaway food container making machine

,

disposable food container making machine

Automatic Disposable Foam Take Away Plate Thermoforming Machinery



Brief introduction:

Full Automatic PS Fast Food Container Line developed by our company is a kind of universal functional thermoplastic forming production line combined with forming and cutting functions, vacuum forming is the main way, also can be mold press forming or comprehensive forming method, this equipment can processing diverse thermoplastic sheet materials. The whole line adapt

Full computerized PLC system,with features of advanced structure, stable character, easy operation, high capacity, large forming area, high automatic degree etc. It is mainly used for PSP forming to produce food containers, trays, bowls and cups and so on. The biggest advantage of this device is an integrated type forming, cutting, stacking in one. It is with not only energy saving but also space saving, time saving and labor saving.

The fully automatic production line includes :

1. PS foam sheet extrusion machine

2. Fully automatic forming & cutting machine

3. Crusher and recycling machine

Automatic Take Away Foam Plate Machine Full Computerized PLC System 0

1. PS foam sheet extrusion machine

Product introduction:

This production line adopts double-screw foam sheet extrusion technology. PS foam sheet is a kind of new-type packing material with the features of heat preservation, safety, sanitation and good plasticity. It’s mainly used to make various types of food containers, such as lunch box, dinner trays, bowls etc. by thermoforming. It’s also can be used to make advertisement board, industrial products packing and so on. It has stable performance, big capacity, high automation and yields quality products.

Machine Specifications

Item Unit Parameter
Model   75/90
Applicable materials   GPPS granule(123P/525)
Thickness of sheet mm 1-3.0
Width of sheet mm 640~1080
Foaming rate   12-20
Weight of product kg/m³ 50~83
Output kg/h 80~100
Rated power(approximately) KW 120
Power supply   Three phase 380V/50Hz
External dimension mm 24000×4100×2800
Complete weight Ton About12

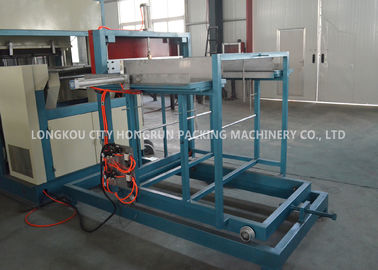

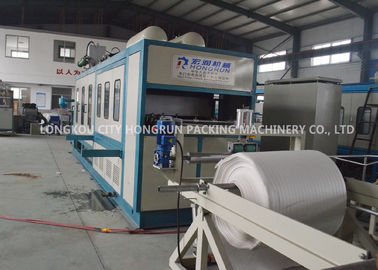

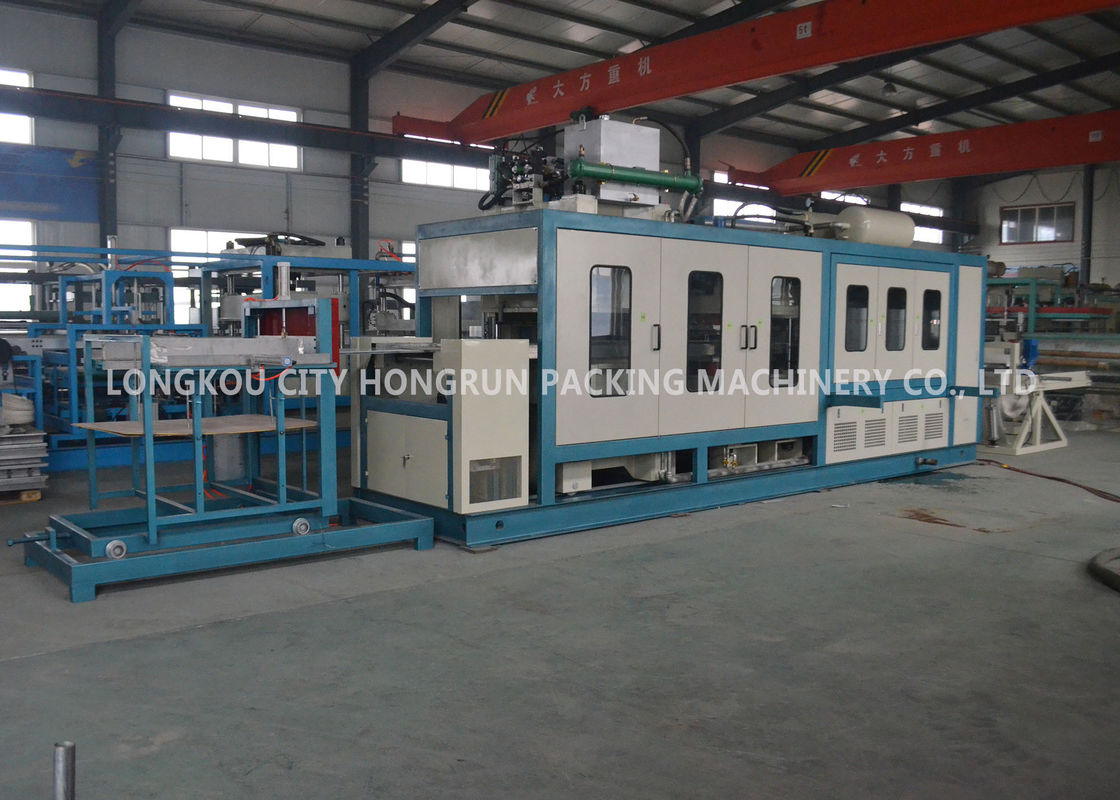

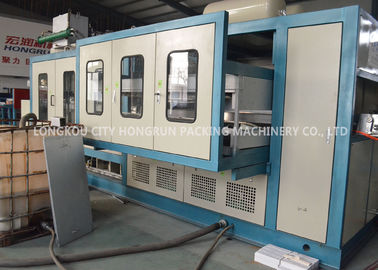

2. Fully automatic forming & cutting machine



This machine developed by combining the domestic and foreign equipment and advantages, is a set of hydraulic pneumatic servo drive for an automatic forming cutting stacking machine. The main electrical components, such as vacuum pump,PLC,made in Japan and Germany, ensure the reliability of the equipment operation, and can be used for hot forming process PS material which is used to produce different food container, such as lunch box, hamburger box, pizza box, bowl, plate, dish, etc. Forming, cutting, stacking is done in the same machine, saving labor, improving efficient, lowing labor intensity and reducing production cost.

Main technical parameters

Item Unit Parameter
Model   HR-75/100
Power supply   Three phase 380V/50Hz
Production efficiency s/mold 3-5
Installed power (approximately) KW 120
Total weight (approximately) Ton 12
Mounting size m 12×3×2.6
Compressed air capacity m3/min 0.4~0.7
Compressed air pressure Mpa 0.7
Cooling water T/h 1



3.Crusher and recycling machine



This machine is special for polystyrene. It adopts single screw, double stage plasticification, increasing compress ratio. The whole machine consists of crusher, main machine, cooling tank and granulator. It can recycle many foamed products, such as PS, XPS, EPS etc.

Main parameters

Model 105/300
Screw Diameter Φ105/300mm
Total power 30kw
Power supply three phase 380V/50Hz
Number of heating zones 4
Throughput 120kg/h
Applicable materials PS foam scrap



Fully automatic production line need 6 persons totally,

That is : 3 persons for sheet machine, 2 persons for forming machine, 1 person for recycling machine

Power consumption: actual power is 65+65+15=145KW

Water needs: you can buy a cooling tower then it is recycling water, no need to waste much water, it just can evaporate 10 KG per day in 24 hours.

Electricity: three-phase 380V 50Hz or three-phase 220V 60Hz
