CE SGS Take Away Food Box Making Machine Vacuum Forming And Cutting

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  CE SGS Take Away Food Box Making Machine Vacuum Forming And Cutting

Product Details:

Place of Origin: CHINA
Brand Name: HONGRUN
Certification: ISO9001, CE, SGS, BV, TUV
Model Number: HR-M1080

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Standard Export Packaging
Delivery Time: 90days
Payment Terms: T/T, L/C
Supply Ability: 100SETS PER YEAR
Detailed Product Description
Final Product: Lunch Box, Plate, Egg Tray, Bowl, Dish Etc Raw Material: GPPS
Forming Speed: 15-50 Cycles / Min Forming Area: 1000*1100mm
Max. Forming Depth: 80mm After-sales Service Provided: Engineers Available To Service Machinery Overseas
Warranty: 1 Year Condition: New
High Light:

takeaway food container making machine

,

disposable food container making machine

Automatic PS Vacuum Forming And Cutting Machine To Make Take Away Food Box

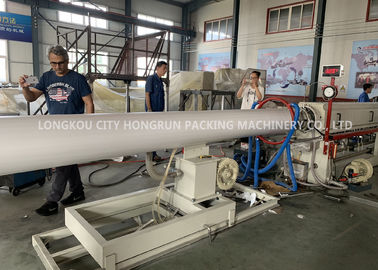

1. PS foam sheet extrusion line

PS foam sheet extruder machine uses a tandem screw technology to produce fine-block cell-structured extruded polystyrene foam sheet with high strength and a pearl and even surface, in a continuous roll, from polystyrene injection an eco-friendly blowing gas and additives. It has a user friendly operating system with inverter controlled driving, digital temperature control and so on.

CE SGS Take Away Food Box Making Machine Vacuum Forming And Cutting 0

------ PS foam sheet extruder machine produce PS foam sheet, which is a kind of new-type packing with the features of shock proofing, sound insulating, heat preservation, damp proof, safety, and good plasticity. It is used widely in the packing of food, fruit, electronic product, daily necessities, hardware product, advertisement plate, etc.

Item Unit Parameter
Model   105/120
Applicable materials   GPPS granule(123P/525)
Thickness of sheet mm 1-3.5
Width of sheet mm 540~1080
Foaming rate   12-20
Weight of product kg/m³ 50~83
Output kg/h 150~200
Rated power(approximately) KW 180
Power supply   Three phase 380V/50Hz
External dimension mm 24000×4100×2800
Complete weight Ton About12

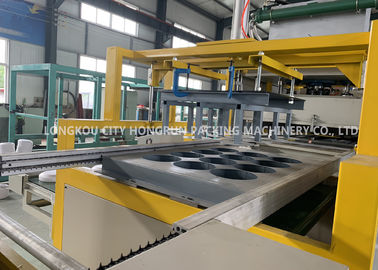

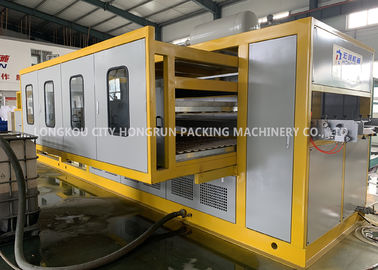

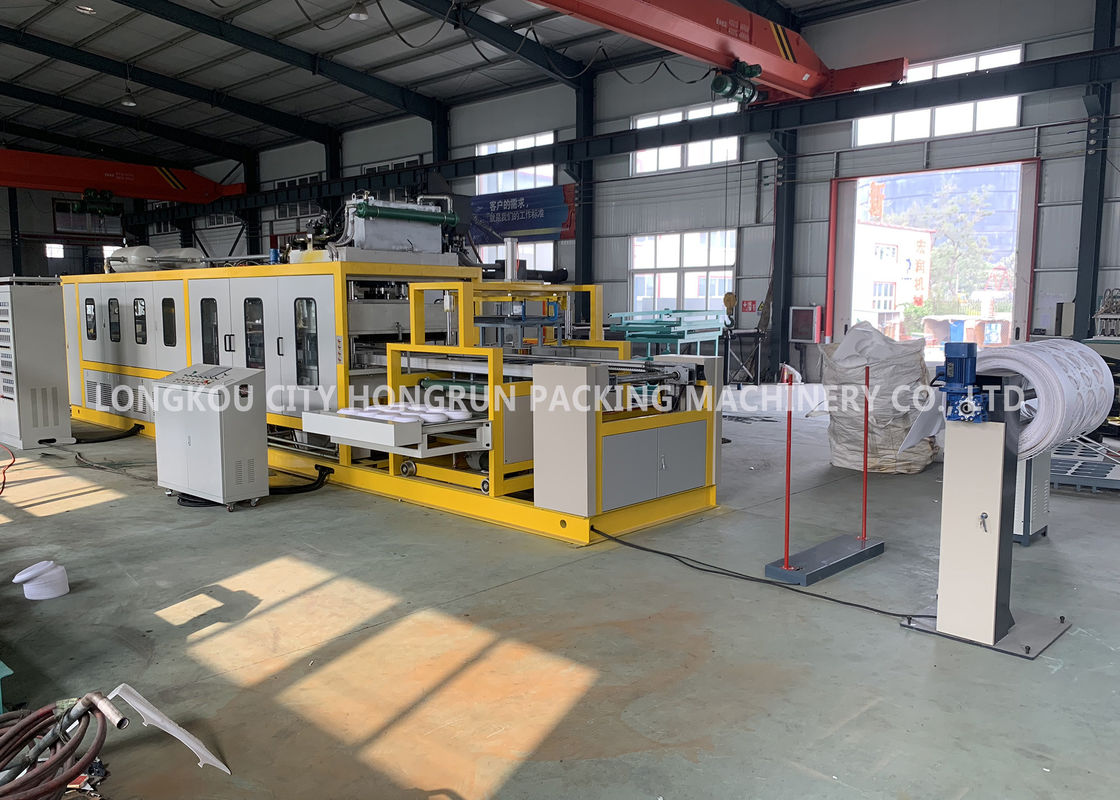

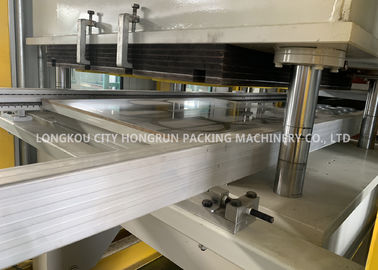

2. PS Plastic Foam Food Container/Plate/Tray Making Machine

This type of developed by combining the domestic equipment and advantages, is a set of hydraulic pneumatic servo drive for an automatic forming cutting seek. Mainly by electrical components, Japan and Germany pump, ensure the reliability of the equipment operation, and can be used for hot forming process many kinds of plastic material.The biggest advantage is forming cutting integration, reduce work link, produce the product directly, it can be collected in stacking area of work to save time, save the production base and greatly reduces the working intensity save artificially.

CE SGS Take Away Food Box Making Machine Vacuum Forming And Cutting 1

Item Unit Parameter
Model / HR-M1080
Power supply / Three phase 380V/50Hz
Production efficiency s/mold 4-5
Installed power (approximately) KW 168
Total weight (approximately) Ton 16
Mounting size m 12×2×2.6
Compressed air capacity m3/min 0.4~0.7
Compressed air pressure Mpa 0.7
Cooling water T/h 1

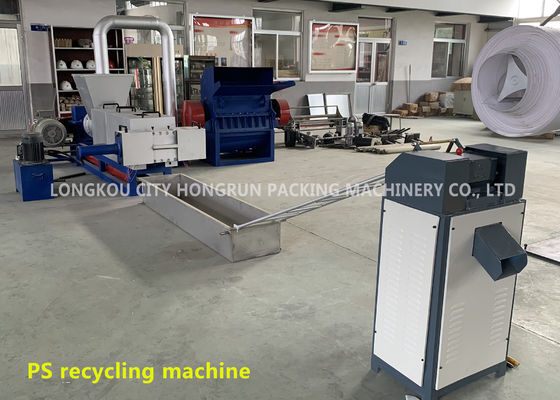

3. PS scrap recycling and pelletizing machine

This recycling and pelletizing machine signed to reclaim the foamed polystyrene andpolyethylene materials almost identically to new ones with its own superior filtering performance.

Model 105/300
Screw Diameter Φ105/300mm
Total power 45kw
Power supply three phase 380V/50Hz
Number of heating zones 4
Throughput 120kg/h
Applicable materials PS foam scrap

Our Advantages

A. Machine advantage:
In order to assure the reliability of the equipment operation,the main electric components adopt:German Siemens frequency exchanger, Japanese Mitsubishi PLC, Japanese Omron servo motor, Japan RKC temperature control etc.
the operation of the equipment is more humanizing, handle easily and simple to operate. The frame structure of our machines are magnificent strong and adopts superior materials to ensure the stability of equipment operation.
The operation of the equipment is more humanizing, handle easily and simple to operate.Especially our Fully Automatic Vacuum forming machine,only need 2 workers,you can reach your goal.
As the professional Plastic machine manufacturer, we keep pace with time, and keep the technical research.

B. Services Advantage:
We are professional in providing TURN-KEY project, from raw material,formulation,machineries to finished products,until now we have many sucessful turn-key project all over the world,like Nigeria,Egpty,
Vietnamese,Pakistan,Mozambique and so on.

As a machine user,you will pay more attention to the after-sales services, in order to serve our customers,we provide 24 hours on-line after-sales services to save our customers' time.
