Digital Temperature Control Disposable Food Containers Machine For Forming And Cutting

Digital Temperature Control  Disposable Food Containers Machine For Forming And Cutting
Digital Temperature Control  Disposable Food Containers Machine For Forming And Cutting Digital Temperature Control  Disposable Food Containers Machine For Forming And Cutting Digital Temperature Control  Disposable Food Containers Machine For Forming And Cutting Digital Temperature Control  Disposable Food Containers Machine For Forming And Cutting

Large Image :  Digital Temperature Control Disposable Food Containers Machine For Forming And Cutting

Product Details:

Place of Origin: CHINA
Brand Name: HONGRUN
Certification: ISO9001, CE, SGS, BV, TUV
Model Number: HR-S1080

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Standard Export Packaging
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100SETS PER YEAR
Detailed Product Description
Plastic Type: PS Usage: Food Container
Feature: Disposable Use: Food
Food Container Feature: Fruit,takeaway Food Container Lunch Box Specification: Various Of Sizes
Logo: Customized Logo Forming Area: 750*1000mm
Type: Automatic Forming Depth: Max. 80mm
Collection Method: Stacking Type
High Light:

Joinery machine

,

high frequency plastic welding machine

Energy-Saving Disposable Food Containers Forming And Cutting Machine



The production line include three machines:

A. PS foam sheet extruder

B. Fully automatic forming and cutting machine

C. PS recycle machine

A. PS foam sheet extruder

PS Foam Sheet Extruder uses a tandem screw technology to produce fine-block cell-structured extruded polystyrene foam sheet with high strength and a pearl and even surface, in a continuous roll, from polystyrene injection an eco-friendly blowing gas and additives. It has a user friendly operating system with inverter controlled driving, digital temperature control and so on.

Digital Temperature Control  Disposable Food Containers Machine For Forming And Cutting 0



Machine Specifications

Item Unit Parameter
Model   75/90
Applicable materials   GPPS granule(123P/525)
Thickness of sheet mm 1-3.0
Width of sheet mm 640~1080
Foaming rate   12-20
Weight of product kg/m³ 50~83
Output kg/h 80~100
Rated power(approximately) KW 120
Power supply   Three phase 380V/50Hz
External dimension mm 24000×4100×2800
Complete weight Ton About12



Digital Temperature Control  Disposable Food Containers Machine For Forming And Cutting 1

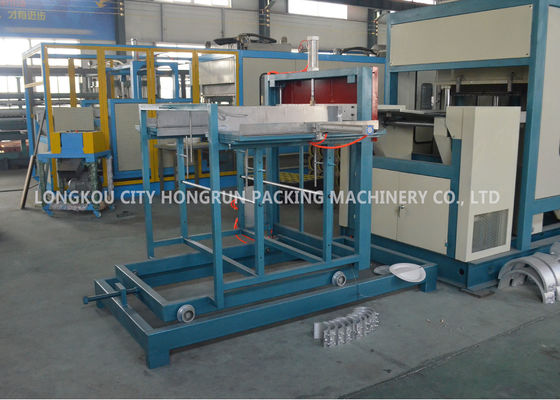

B. Fully automatic forming and cutting machine



Fully automatic forming and cutting machine integrates forming, cutting and stacking (trimming) at the same time. It has the features of saving labor, improving efficient, lowing labor intensity and reducing production cost. It adopts PLC controller and touch screen to control the working program. Two workers are enough for whole production line.

The machine is plastic sheet forming equipment in one step with following process: transporting sheet, heating, forming, cutting, stacking and winding waste edge.



Item Unit Parameter
Model   HR-S1080
Power supply   Three phase 380V/50Hz
Production efficiency s/mold 3-5
Installed power (approximately) KW 148
Total weight (approximately) Ton 12
Mounting size m 12×3×2.6
Compressed air capacity m3/min 0.4~0.7
Compressed air pressure Mpa 0.7
Cooling water T/h 1

Digital Temperature Control  Disposable Food Containers Machine For Forming And Cutting 2

Digital Temperature Control  Disposable Food Containers Machine For Forming And Cutting 3

C. PS recycle machine

1.Introduction:

This machine is special for polystyrene. It adopts single screw, double stage plasticification, increasing compress ratio. The whole machine consists of crusher, main machine, cooling tank and granulator. It can recycle many foamed products, such as PS, XPS, EPS etc.

2. Flow Chart:

Material —Put into—Crush—Inhalation storage silos—Melt—Extrude—Water tank cooling—Pulling—Pelletizing—Packaging

3.Main parameters

Model 105/300
Screw Diameter Φ105/300mm
Total power 45kw
Power supply three phase 380V/50Hz
Number of heating zones 4
Throughput 120kg/h
Applicable materials PS foam scrap

Digital Temperature Control  Disposable Food Containers Machine For Forming And Cutting 4



Main Features

1) Suck and pull the food containers up. Even the containers don't be sucked out successfully, this won't affect next move.
2) There are one conveyor belt on each side, both can achieve automatically stacking, reduce labor intensity.
3) Heater box separate into three parts,hydraulic cutting speed is faster,and use mechanical arms to suck products,all above methods reduce the whole working time.
4) Extend mold length, making the forming mold area larger and improving the production efficiency.
5) Stacking system installed two sets of static eliminator to eliminate static electricity generated in the production process to avoid fires.
