Disposable Clamshell Take-out PS Foam Food Containers Making Machine

China Longkou City Hongrun Packing Machinery Co., Ltd. certification
China Longkou City Hongrun Packing Machinery Co., Ltd. certification
We hope Hongrun company could have a good beginning in business, and we will keep a long-term cooperation with your company.

—— Sukhraj

Your goods are superior in quality compared with those of other manufacturers. We always have faith in the quality of your products.

—— REMESH

I'm Online Chat Now

Disposable Clamshell Take-out PS Foam Food Containers Making Machine

Disposable Clamshell Take-out PS Foam Food Containers Making Machine
Disposable Clamshell Take-out PS Foam Food Containers Making Machine Disposable Clamshell Take-out PS Foam Food Containers Making Machine Disposable Clamshell Take-out PS Foam Food Containers Making Machine Disposable Clamshell Take-out PS Foam Food Containers Making Machine Disposable Clamshell Take-out PS Foam Food Containers Making Machine

Large Image :  Disposable Clamshell Take-out PS Foam Food Containers Making Machine

Product Details:

Place of Origin: CHINA
Brand Name: HONGRUN
Certification: ISO9001, CE, SGS, BV, TUV
Application: Sheet
Plastic Processed: Polystyrene

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Standard Export Packaging
Delivery Time: 90days
Payment Terms: T/T, L/C
Supply Ability: 100SETS PER YEAR
Detailed Product Description
Condition: New Voltage: 380V 50HZ 3Phase
Dimension(l*w*h): 16x5x2.8 Product Type: Fast Food Box
Type: Thermoforming Machine Warranty: One Year
Material: PS Max Forming Depth: 80mm
Production Efficiency: 3-5 S/mould Forming Pressure: 35T
High Light:

fast food box making machine

,

take away food box making machine

Disposable Clamshell Take-out PS Foam Food Containers Making Machine





Robot Arm Type PS Disposable Plastic Foam Food Containers Machine

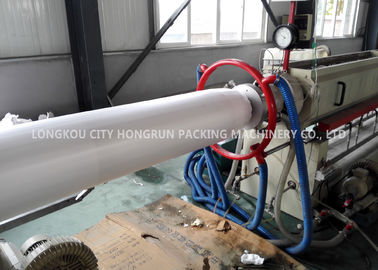

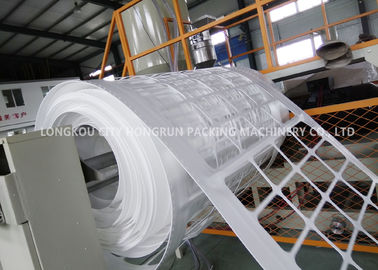

1. PS foam sheet extrusion line



PS foam sheet extrusion line adopts Gentian type double-stage series high technology. The raw material is general polystyrene granule. In the extruding process, vesicant is injected at high pressure. After extruding, foaming, cooling, shaping and hauling off , it is winding to finished ps foam sheet rolls. This equipment adopts high speed non-stop hydraulic filter changer and OLC controller, it is easy for operation.

Disposable Clamshell Take-out PS Foam Food Containers Making Machine 0

Machine Specifications

Item Unit Parameter
Model   105/120
Applicable materials   GPPS granule(123P/525)
Thickness of sheet mm 1-3.5
Width of sheet mm 540~1080
Foaming rate   12-20
Weight of product kg/m³ 50~83
Output kg/h 150~200
Rated power(approximately) KW 180
Power supply   Three phase 380V/50Hz
External dimension mm 24000×4100×2800
Complete weight Ton About12

PS Foam Sheet Extruder Included Bellowed Equipment List:

A. Stainless steel Mixer and feeder

B. Φ105 Extruder

C. Φ120 Extruder

D. Screen changer

E. Die head

F. High pressure metering pump

G. Shaping, cutting and cooling unit

H. Haul-off unit

I. Electrostatic elimination system

J. Double position winder

K. Electric control system

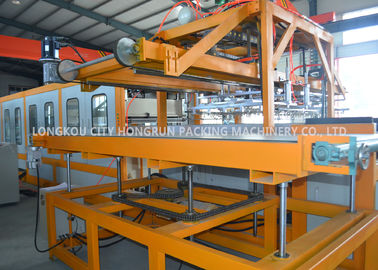

2. PS foam food container forming machine



Fully automatic vacuum forming and cutting off integration machine is all-powerful thermoforming machine with integrating vacuum forming and cutting off at the same time. It can be used for processing all kinds of plastic sheet. This machine adopts computer digital forming system, PLC mechanical and electronic integration self-control and touch screen control working programme, it is easy to operate and has highly production efficiency.

Disposable Clamshell Take-out PS Foam Food Containers Making Machine 1



Forming mold

Disposable Clamshell Take-out PS Foam Food Containers Making Machine 2

Main technical parameters

Item Unit Parameter
Model / HR-M1080
Power supply / Three phase 380V/50Hz
Production efficiency s/mold 4-5
Installed power (approximately) KW 168
Total weight (approximately) Ton 16
Mounting size m 12×2×2.6
Compressed air capacity m3/min 0.4~0.7
Compressed air pressure Mpa 0.7
Cooling water T/h 1

Automatic Vacuum Forming Machine Included Bellowed Equipment List:

A. Unwinding unit

B. Heating unit

C. Vacuum forming unit

D. Truncation unit

E. Auto stacking unit

F. Collecting products unit

G. Leftover material rewinding device

H. Heating electric control cabinet

I. Operating electrical cabinet

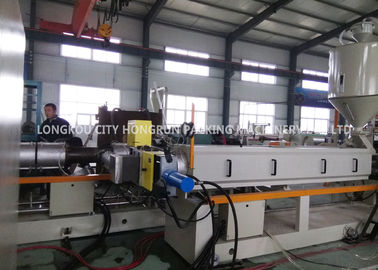

3. Recycling machine



This machine can process PS material and it is mainly used to recycle the high foam polystyrene and high foam polystyrene products.It is the ideal equipment to recycle waste material.

Disposable Clamshell Take-out PS Foam Food Containers Making Machine 3

Final products:

Disposable Clamshell Take-out PS Foam Food Containers Making Machine 4
