Efficient Pulp Egg Tray Molding Machine / Industrial Apple Tray Making Machine

Efficient Pulp Egg Tray Molding Machine / Industrial Apple Tray Making Machine
Efficient Pulp Egg Tray Molding Machine / Industrial Apple Tray Making Machine Efficient Pulp Egg Tray Molding Machine / Industrial Apple Tray Making Machine Efficient Pulp Egg Tray Molding Machine / Industrial Apple Tray Making Machine Efficient Pulp Egg Tray Molding Machine / Industrial Apple Tray Making Machine

Large Image :  Efficient Pulp Egg Tray Molding Machine / Industrial Apple Tray Making Machine

Product Details:

Place of Origin: CHINA
Brand Name: HONGRUN
Certification: ISO9001, CE, SGS, BV, TUV
Model Number: HRZ-4000M

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Standard Export Packaging
Delivery Time: About 75 days
Payment Terms: T/T, L/C
Supply Ability: 100SETS PER YEAR
Detailed Product Description
Processing Type: Pulp Molding Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas
Warranty: One Year Voltage: 220V50HZ/380V50HZ
Power(w): 104KW Color: Customized Color
Finished Products: Egg Tray /wine Tray/yogurt Tray /fruit Tray/egg Box Ect. Name: Pulp Egg Carton Tray Forming Making Machine Factory Supplier
Capacity: 4000pcs/hr Raw Material: Recycled Paper
Drying Type: Metal Multi-layer Dryer Fuel Type: Gas And Oil
High Light:

pulp egg tray making machine

,

pulp molding machine

Factory Price Pulp Egg Tray Molding Machine Industrial Tray Making Machine



Paper Egg Tray Machine is used to process raw material waste paper into egg tray/carton/box, bottle holder, fruit tray and shoe cover etc. Whole production will be finished by one production line. In this production line, their main engine has three types: reciprocating type, Tumblet Type and rotation typewhich working method is different. Usually rotation type machine capacity is bigger.


Efficient Pulp Egg Tray Molding Machine / Industrial Apple Tray Making Machine 0
Flow Chart:
1. Pulping system-------2. Forming system-------3. Drying system

Pulping system: Hydrapulper ,Pulp pump ,Air compressor,agitator,Self priming pump,pulping machine.

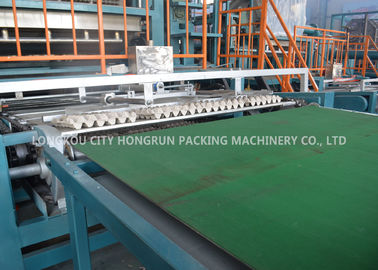

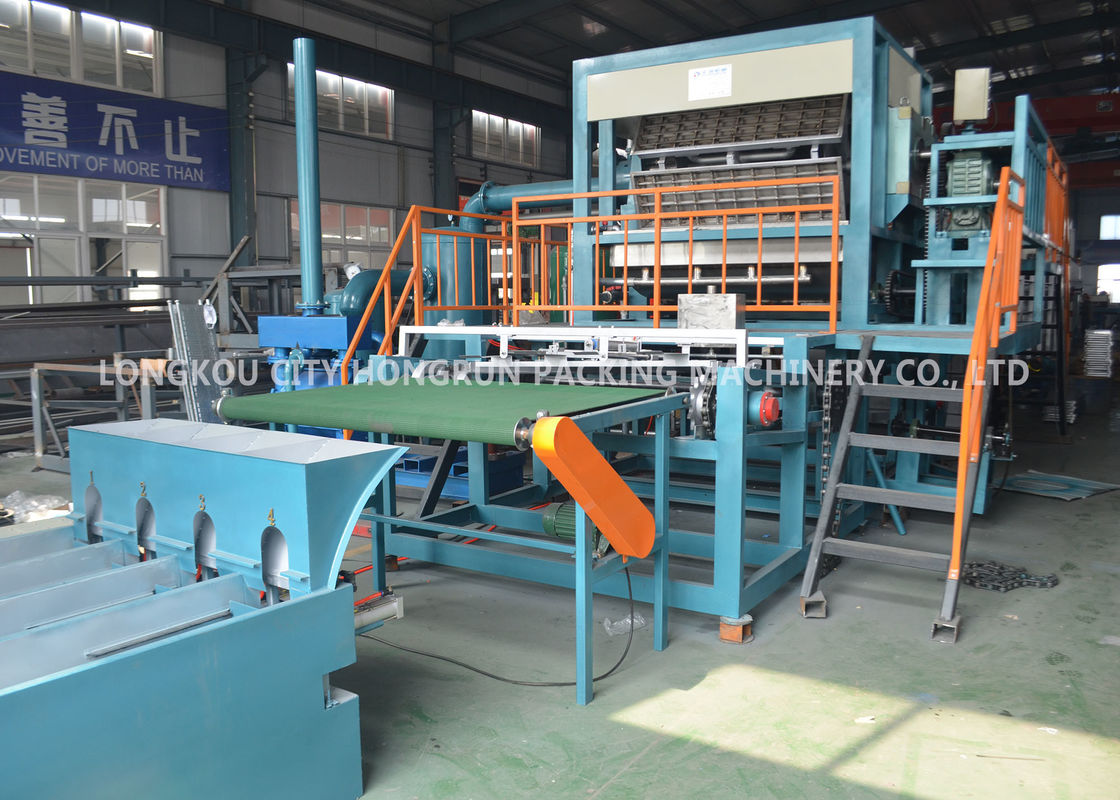

Forming system: Full automatic egg tray forming machine, Vacuum pump , High pressure washer, Negative pressure tank , mould, Transfer mould, baler .

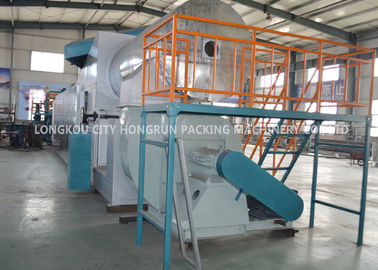

Drying system: There are 2 kinds of drying system. One is metal, the other is brick. The conveyor plate
can be one layer and multi-layer, direct combustion hot air circulation. Using the imported or joint venture brand burner (domestic uses the stove bar), equipped with an automatic control cabinet.



Technical data



Item Information Notes
Output Range 4000pcs/h 30 packed egg tray(60~80g)
Workshop recommendation >=525m2

Length>=35m;width>=15m;height>=6m;

(It could be adjusted according to the user's existing workshop)

Type of Material Waster paper

News paper/Carton /Paper box/Books/

Corrugated paper etc.

Material consumption 250~280kg/h 30 packed egg tray (65~70g)
Water consumption 650-1000kg/h 30 packed egg tray (65~70g)
Electricity consumption 110kw Full throttle operation

Fuel consumption

(approximately)

LPG 25~32M3/h Choose one from the three types of fuel
natural gas 75~95 M3/h
diesel 60~80kg/h
Operator Required 4~6 people/shift 24 hours ,3 shift
Container requirement for Transport 4 of 40’HQ container Whole production line

Efficient Pulp Egg Tray Molding Machine / Industrial Apple Tray Making Machine 1



Feature of egg Tray Production Line

1 High automation, low labor cost
2 Low production cost
3 Energy saving(by 30%-50% compared with other manufacturer)
4 Water saving(complete water treatment system equipped)
5 Efficient Multilayer dryer, saving space(by 33% compared with traditional dryer)
6

Stable final product quality(same weight, same dimension, strong and good look)



The specifications of the pulp molding production lines are divided due to different customer preferences, market demands, labor cost, energy cost, field availability and climate in different areas, considering this, our company developed many pulp molding production lines in different specifications to meet the customer's requirements:
HR-1000S, HR-1500S, HRZ-2000M, HRZ-3000M, HRZ-4000M, HRZ-6000M, HRD-12000M.
The above-mentioned production lines are suitable for the following products: Egg tray (30-cell, 20-cell etc.), egg box/carton
(6-cell, 10-cell, 12-cell, 15-cell, 18-cell etc.), fruit tray (for apple, tomato, pear and etc.), cup carrier (4 packed and 2 packed),
some medical-care products and fixed shape (the design doesn't change frequently) pulp molding products with large quantity.



For 30-cell egg tray as the example:
Model Throughput Drying System Workshop Space Rated Power
HR-1000S 1000pcs/h Single-Layer Metal 40m*10m*6m 88KW
HR-1500S 1500pcs/h Single-Layer Metal 42m*10m*6m 122KW
HRZ-2000M 2000pcs/h Multi Layers Mental 30m*10m*6m 160KW
HRZ-3000M 3000pcs/h Multi Layers Mental 30m*10m*6m 187KW
HRZ-4000M 4000pcs/h Multi Layers Mental 35m*10m*6m 206KW
HRZ-6000M 6000pcs/h Multi Layers Mental 38m*15m*6m 327KW
HRP-8000M 8000pcs/h Multi Layers Mental 35m*20m*6m 470KW
HRD-12000M 12000pcs/h Multi Layers Mental 45m*20m*8m 477KW
  • Exact data are subject to final contract.
