Payment & Shipping Terms:
|Product Type:||Egg Tray Machine||Processing Type:||Pulp Molding Machine|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas||Production Capacity:||1000pcs/hour.|
|Raw Material:||Waste Paper,waste Bin,old Carton||Product Name:||Waste Carton Paper Pulp Recycled Moulding Egg Tray Making Machine|
|Color:||Customized Color||Finished Products:||Egg Tray /wine Tray/yogurt Tray /fruit Tray/egg Box Ect.|
pulp egg tray making machine,
pulp molding machine
Factory Supply Small Egg Tray Machine Paper Pulp Apple Tray Making Machine
The raw paper of the egg tray production are mainly newspaper, literature readings paper, paper carton, paper box and even the leftover pieces from the carton factory or printing factory.
Higher requirements of the tray quality, certain original fiber pulp need to be added.
The raw materials is easily to be purchased and at a very low cost.
Composition of the egg tray production line
Paper pulp molding egg tray production line is comprised by 3 systems as pulping system, forming system and drying system.
1. Pulping System
It includes raw paper smashing, impurities removing, pulp defibering, additives, pulp further grinding,
Pulp blending, pulp supplying etc.
Related machines: Hydropulper, (vibration screen, pulp grinder),agitator, pulp pump, pipe and so on.

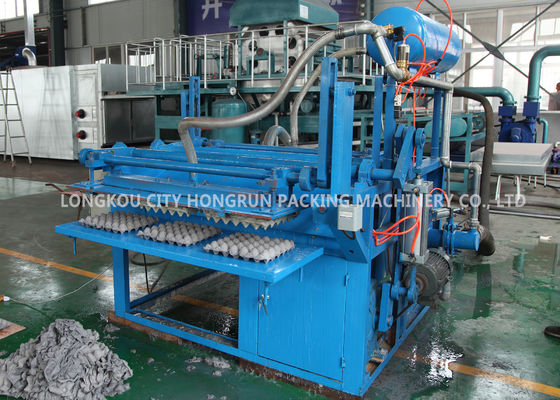

2. Forming System
The forming system is the process to produce the wet egg tray by forming machine.
The whole process includes the forming machine, moulds, vacuum pump, steam separator, air compressor, air storage tank and so on.
Forming machine is one of the main equipment of the whole egg tray (box) production line. Its function is to produce the wet egg trays. So it is the important supporter for the line.
Only under the forming machine’s co-working, the molds, the negative pressure control, the positive pressure control can realize their functions.
30 packed egg tray
(It could be adjusted according to the user's existing workshop)
|Type of Material||Waste paper||
Corrugated paper etc.
|Electricity consumption||23-30kW·h/hr||Full throttle operation|
30 packed egg tray
30 packed egg tray
|Operator Required||2-4 people/shift||24hours, 3shift|
|Container requirement for Transport||1 of 20’GP container||Whole production line|
1. low invest, high profit,suitable for home business
2. Environmental friendly,waste water can recycle, no pollution
3. Easy operation, no need installation
4. Low power consumption
5. When replace mould, final product can customized.
Working principle of egg tray forming machine:
Water paper and water added into the pulper, then delivered to the slurry storage tank, using blender to stirring pulp uniform and delivered to the slurry tank, stirring the pulp to a certain concentration delivered to the molding machine, producing the egg tray, then transport to the drying hole by conveyor belt, after the egg tray drying, finally closed care and package it.
About dryer, if you choose reciprocating type production line, because of small capacity, you can dry them naturally also can be dry using our cart-type dryer. On account of bigger capacity tumblet type and rotation type, you can choose mesh-belt dryer to dry tray.
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
Terms of delivery
Latest date of shipment rime:15-20 working days after reciept prepayment.
30% advance payment by TT, 70% befor delivery the goods.Or 100% Paid by L/Cat sight against shipping documents
