Foam Sheet Disposable Food Box Machine By Wind Or Water Cooling ISO9001

Foam Sheet Disposable Food Box Machine By Wind Or Water Cooling ISO9001
Foam Sheet Disposable Food Box Machine By Wind Or Water Cooling ISO9001 Foam Sheet Disposable Food Box Machine By Wind Or Water Cooling ISO9001 Foam Sheet Disposable Food Box Machine By Wind Or Water Cooling ISO9001 Foam Sheet Disposable Food Box Machine By Wind Or Water Cooling ISO9001 Foam Sheet Disposable Food Box Machine By Wind Or Water Cooling ISO9001

Large Image :  Foam Sheet Disposable Food Box Machine By Wind Or Water Cooling ISO9001

Product Details:

Place of Origin: CHINA
Brand Name: HONGRUN
Certification: ISO9001, CE, SGS, BV, TUV
Model Number: HR-1040
Application: Fast food box
Plastic Processed: Polystyrene
Products: Foam sheet
Cooling: by wind or water

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Standard Export Packaging
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100SETS PER YEAR
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Production Efficiency: 2.8-5s/mould
Power Supply: Three Phase 380V/50Hz Cooling Water: 1T/h
Forming Area: 1000*1100mm Max. Forming Depth: 80mm
Width Of Sheet: 640~1080mm
High Light:

disposable food container making machine

,

food box making machine

Automatic Disposable Food Box Machine / PS Food Container Production Line

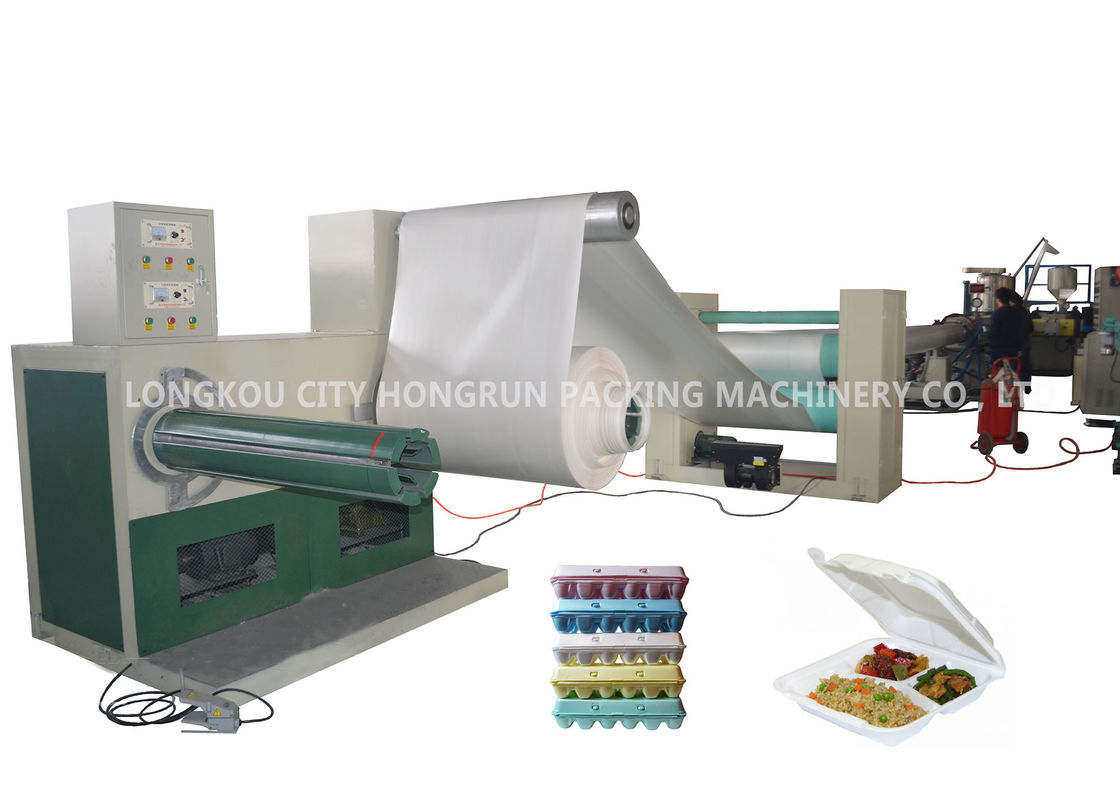

1. PS Foam Sheet Extruder



Quick Details:

Condition: New
Application: Sheet
Plastic Processed: Polystyrene
Screw Design: Double-screw
Automatic Grade: Automatic
Voltage: 380V
Power(W): 150KW
Dimension(L*W*H): 30000*4100*2800
Weight: 12T
Cooling: by wind or water


Product introduction:

This production line adopts double-screw foam sheet extrusion technology. PSP foam sheet is a kind of new-type packing material with the features of heat preservation, safety, sanitation and good plasticity. It’s mainly used to make various types of food containers, such as lunch box, dinner trays, bowls etc by thermoforming. It’s also can be used to make advertisement board, industrial products packing and so on. It has stable performance, big capacity, high automation and yields quality products.

Foam Sheet Disposable Food Box Machine By Wind Or Water Cooling ISO9001 0

Main parameters:


Item

Unit

Parameter

Model



FPP105-120

Applicable materials



GPPS granule

Thickness of sheet

mm

1-4

Width of sheet

mm

540/1080

Foaming rate



12-20

Bulk weight of product

Kg/m³

50-83

Thermal conductivity of product

W/m.k

0.021-0.038

Output

kg/h

150-200

Rated power

Kw

200

Power supply



three phase 380v/50Hz

External dimension

mm

25000×7000×3000

Complete weight

Ton

About12


Foam Sheet Disposable Food Box Machine By Wind Or Water Cooling ISO9001 1

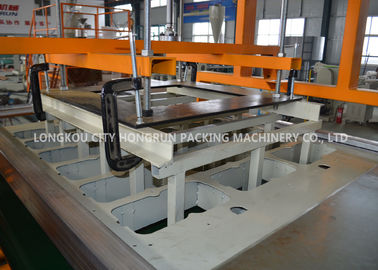

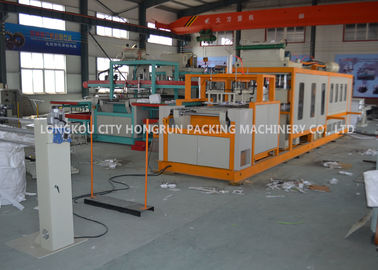

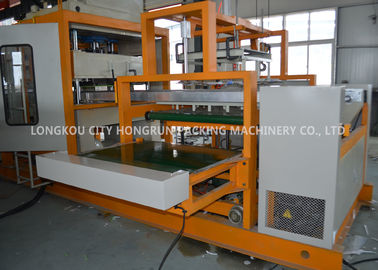

2. Auto PS foam forming and cutting machine

The working process as below:

Feeding ---heating area (heating by the remote infrared ceramic heater)--forming area (vacuum Forming, press forming and synthetically forming) --Pneumatic cutting knife (cut the shaped sheet into pieces) –scrap winding.

1. It can produce PS foam food box/container, foam (egg/meat) tray, hamburger box, foam plates/bowl, fruit tray, etc. The foam container has a feature of shock-resistance, crush- resistance, heat insulation, etc. It is widely used to pack the heat and frozen food in supermarkets, stores and etc.

2. Fully automatic forming and cutting machine integrates forming, cutting and stacking (trimming) at the same time. It has the features of labor-saving, high efficiency, energy-saving properties. It adopts PLC controller and touch screen to control the working program.

2. It is an all-powerful thermal forming machine with the integration of vacuum forming and cutting.

4. It adopts a remote infrared ceramic heater in the heating zone, with which the machine gets the most stable and even temperature.

5. It adopts the temperature digital control system, which is convenient for the workers to know the temperature of each heating zone quickly. Also, it easily operates and makes more efficient.

6. It features reliable stability, large forming area, and fast speed, as well as a high degree of automation & economic on manpower.

Technical parameters:

Item Unit Parameter
Model / HR-M1080
Power supply / Three phase 380V/50Hz
Production efficiency s/mold 4-5
Installed power (approximately) KW 168
Total weight (approximately) Ton 16
Mounting size m 12×2×2.6
Compressed air capacity m3/min 0.4~0.7
Compressed air pressure Mpa 0.7
Cooling water T/h 1

Application
Foam Sheet Disposable Food Box Machine By Wind Or Water Cooling ISO9001 2
3. PS recycling and pelletizing machine
This machine is special for polystyrene. It adopts double screw plasticification, increasing compress ratio. The whole machine consists of crusher, feeder, extruder, cooling tank and granulator. It can recycle many foamed products, such as PS, XPS, EPS etc.
Model HR-180+120/100
Screw Diameter Φ180+120/Φ100
Total power 80kw
Power supply three phase 380V/50Hz
Number of heating zones 7
Throughput 120-200kg/h
Dimension size 4300*1100*2000
Total weight 3
Applicable materials PS foam scrap
