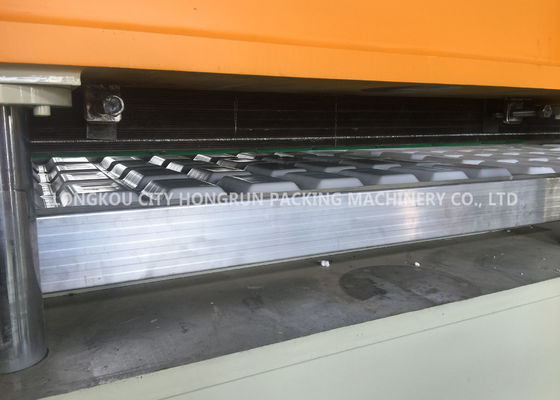

High Efficiency Take Away Food Box Making Machine 15-20 Cycles Per Min

High Efficiency Take Away Food Box Making Machine 15-20 Cycles Per Min
High Efficiency Take Away Food Box Making Machine 15-20 Cycles Per Min High Efficiency Take Away Food Box Making Machine 15-20 Cycles Per Min High Efficiency Take Away Food Box Making Machine 15-20 Cycles Per Min

Large Image :  High Efficiency Take Away Food Box Making Machine 15-20 Cycles Per Min

Product Details:

Place of Origin: CHINA
Brand Name: HONGRUN
Certification: ISO9001, CE, SGS, BV, TUV
Model Number: HR-M1080

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Standard Export Packaging
Delivery Time: 90days
Payment Terms: T/T, L/C
Supply Ability: 100SETS PER YEAR
Detailed Product Description
Raw Material: GPPS Applicable Materials: PS Foam Sheet
Forming Speed: 15-20 Cycles Per Min Max. Depth: 80mm
Extruder Output: 150-200kg/h Forming Area: 1000*1250mm
High Light:

takeaway food container making machine

,

disposable food container making machine

Disposable Foam Take Away Container Making Machine For Burgers / Meals

The production line include three machines:

A. PS foam sheet extruder

B. Fully automatic forming and cutting machine

C. PS recycle machine

A. PS foam sheet extruder

PS Foam Sheet Extruder uses a tandem screw technology to produce fine-block cell-structured extruded polystyrene foam sheet with high strength and a pearl and even surface, in a continuous roll, from polystyrene injection an eco-friendly blowing gas and additives. It has a user friendly operating system with inverter controlled driving, digital temperature control and so on.

High Efficiency Take Away Food Box Making Machine 15-20 Cycles Per Min 0



Machine Specifications

Item Unit Parameter
Model   105/120
Applicable materials   GPPS granule(123P/525)
Thickness of sheet mm 1-3.5
Width of sheet mm 540~1080
Foaming rate   12-20
Weight of product kg/m³ 50~83
Output kg/h 150~200
Rated power(approximately) KW 180
Power supply   Three phase 380V/50Hz
External dimension mm 24000×4100×2800
Complete weight Ton About12

High Efficiency Take Away Food Box Making Machine 15-20 Cycles Per Min 1



B. Fully automatic forming and cutting machine



Fully automatic forming and cutting machine integrates forming, cutting and stacking (trimming) at the same time. It has the features of saving labor, improving efficient, lowing labor intensity and reducing production cost. It adopts PLC controller and touch screen to control the working program. Two workers are enough for whole production line.

The machine is plastic sheet forming equipment in one step with following process: transporting sheet, heating, forming, cutting, stacking and winding waste edge.



Item Unit Parameter
Model   HR-M1080
Power supply   Three phase 380V/50Hz
Production efficiency s/mold 2.8-5
Installed power (approximately) KW 250
Total weight (approximately) Ton 18
Mounting size m 14.2×5.8×3.14
Compressed air capacity m3/min 0.4~0.7
Compressed air pressure Mpa 0.7
Cooling water T/h 1

High Efficiency Take Away Food Box Making Machine 15-20 Cycles Per Min 2

C. PS recycle machine

1.Introduction:

This machine is special for polystyrene. It adopts single screw, double stage plasticification, increasing compress ratio. The whole machine consists of crusher, main machine, cooling tank and granulator. It can recycle many foamed products, such as PS, XPS, EPS etc.

2. Flow Chart:

Material —Put into—Crush—Inhalation storage silos—Melt—Extrude—Water tank cooling—Pulling—Pelletizing—Packaging

3.Main parameters

Model 105/300
Screw Diameter Φ105/300mm
Total power 45kw
Power supply three phase 380V/50Hz
Number of heating zones 4
Throughput 120kg/h
Applicable materials PS foam scrap

High Efficiency Take Away Food Box Making Machine 15-20 Cycles Per Min 3



Main Features

1) Suck and pull the food containers up. Even the containers don't be sucked out successfully, this won't affect next move.
2) There are one conveyor belt on each side, both can achieve automatically stacking, reduce labor intensity.
3) Heater box separate into three parts,hydraulic cutting speed is faster,and use mechanical arms to suck products,all above methods reduce the whole working time.
4) Extend mold length, making the forming mold area larger and improving the production efficiency.
5) Stacking system installed two sets of static eliminator to eliminate static electricity generated in the production process to avoid fires.

Packaging & Delivery

High Efficiency Take Away Food Box Making Machine 15-20 Cycles Per Min 4
