High Performance Foam Food Container Machine Three Phase 380v 50Hz

High Performance Foam Food Container Machine Three Phase 380v 50Hz
High Performance Foam Food Container Machine Three Phase 380v 50Hz High Performance Foam Food Container Machine Three Phase 380v 50Hz High Performance Foam Food Container Machine Three Phase 380v 50Hz High Performance Foam Food Container Machine Three Phase 380v 50Hz High Performance Foam Food Container Machine Three Phase 380v 50Hz

Large Image :  High Performance Foam Food Container Machine Three Phase 380v 50Hz

Product Details:

Place of Origin: CHINA
Brand Name: HONGRUN
Certification: ISO9001, CE, SGS, BV, TUV
Application: Sheet
Plastic Processed: Polystyrene

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Standard Export Packaging
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100SETS PER YEAR
Detailed Product Description
Voltage: 380V/50HZ Condition: New
Weight: 16T After-sales Service Provided: Engineers Available To Service Machinery Overseas
Automatic: Yes,fully Automatic Plastic Type: PS
Type: Thermoforming Machine Product Type: Fast Food Box
Max Forming Depth: 80mm Production Efficiency: 3-5 S/mould
Forming Pressure: 35T
High Light:

plastic food container making machine

,

fast food box making machine

High Performance Foam Food Container Machine Three Phase 380v 50Hz





Automatic Disposable EPS Foam Food Containers Machine for Egg Packing





1. PS foam sheet extrusion line



PS foam sheet extrusion line adopts Gentian type double-stage series high technology. The raw material is general polystyrene granule. In the extruding process, vesicant is injected at high pressure. After extruding, foaming, cooling, shaping and hauling off , it is winding to finished ps foam sheet rolls. This equipment adopts high speed non-stop hydraulic filter changer and OLC controller, it is easy for operation.

High Performance Foam Food Container Machine Three Phase 380v 50Hz 0

Machine Specifications

Item Unit Parameter
Model   105/120
Applicable materials   GPPS granule(123P/525)
Thickness of sheet mm 1-3.5
Width of sheet mm 540~1080
Foaming rate   12-20
Weight of product kg/m³ 50~83
Output kg/h 150~200
Rated power(approximately) KW 180
Power supply   Three phase 380V/50Hz
External dimension mm 24000×4100×2800
Complete weight Ton About12

PS Foam Sheet Extruder Included Bellowed Equipment List:

A. Stainless steel Mixer and feeder

B. Φ105 Extruder

C. Φ120 Extruder

D. Screen changer

E. Die head

F. High pressure metering pump

G. Shaping, cutting and cooling unit

H. Haul-off unit

I. Electrostatic elimination system

J. Double position winder

K. Electric control system



2. PS foam food container forming machine

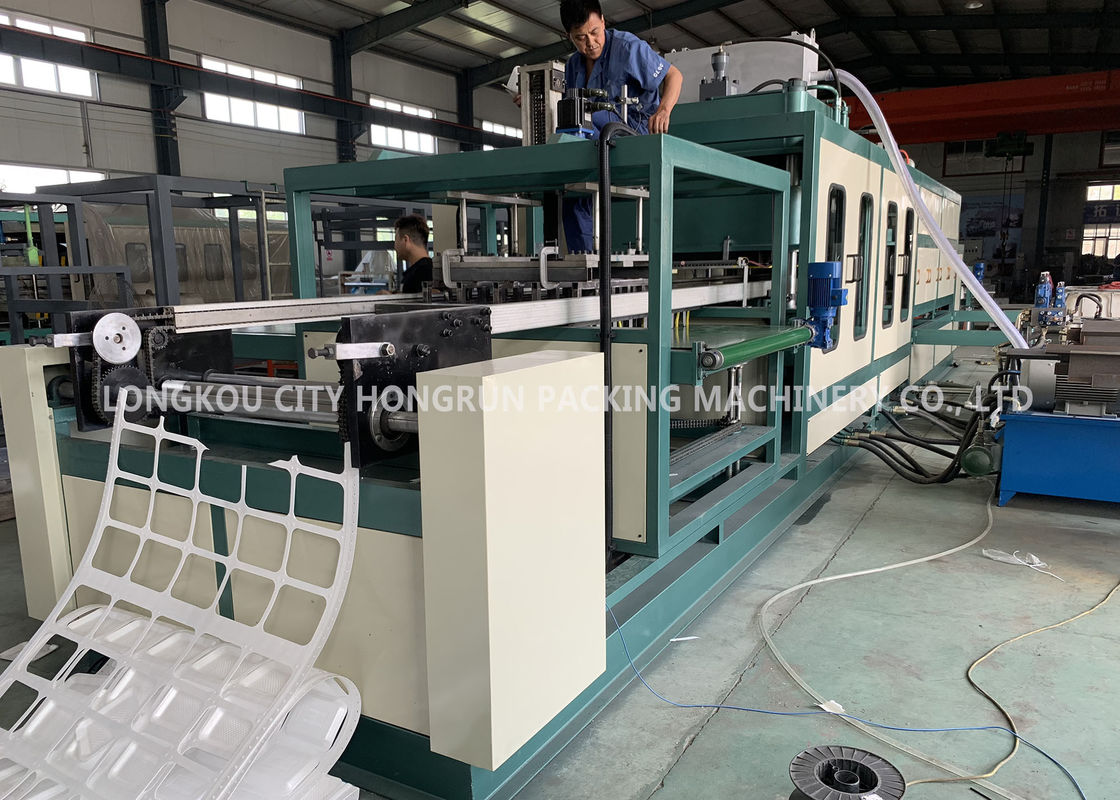

Fully automatic vacuum forming and cutting off integration machine is all-powerful thermoforming machine with integrating vacuum forming and cutting off at the same time. It can be used for processing all kinds of plastic sheet. This machine adopts computer digital forming system, PLC mechanical and electronic integration self-control and touch screen control working programme, it is easy to operate and has highly production efficiency.

High Performance Foam Food Container Machine Three Phase 380v 50Hz 1

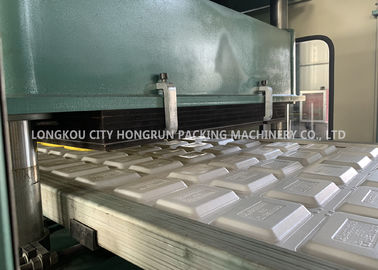

Forming mold

High Performance Foam Food Container Machine Three Phase 380v 50Hz 2

High Performance Foam Food Container Machine Three Phase 380v 50Hz 3

Main technical parameters

Item Unit Parameter
Model / HR-M1080
Power supply / Three phase 380V/50Hz
Production efficiency s/mold 4-5
Installed power (approximately) KW 168
Total weight (approximately) Ton 16
Mounting size m 12×2×2.6
Compressed air capacity m3/min 0.4~0.7
Compressed air pressure Mpa 0.7
Cooling water T/h 1

Automatic Vacuum Forming Machine Included Bellowed Equipment List:

A. Unwinding unit

B. Heating unit

C. Vacuum forming unit

D. Truncation unit

E. Auto stacking unit

F. Collecting products unit

G. Leftover material rewinding device

H. Heating electric control cabinet

I. Operating electrical cabinet



3. Recycling machine



This machine can process PS material and it is mainly used to recycle the high foam polystyrene and high foam polystyrene products.It is the ideal equipment to recycle waste material.

High Performance Foam Food Container Machine Three Phase 380v 50Hz 4

Final products:

High Performance Foam Food Container Machine Three Phase 380v 50Hz 5

High Performance Foam Food Container Machine Three Phase 380v 50Hz 6
