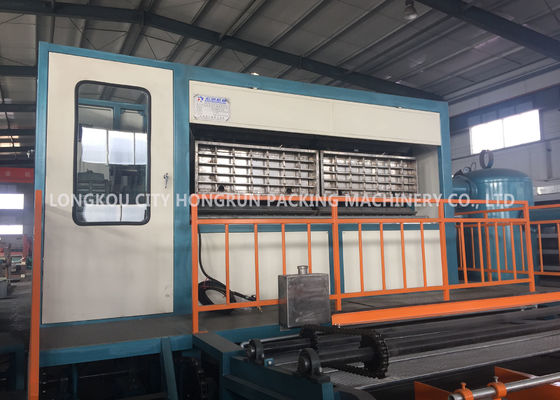

Large Capacity Pulp Tray Machine / Paper Molding Machine Energy - Efficient

Large Capacity Pulp Tray Machine / Paper Molding Machine Energy - Efficient
Large Capacity Pulp Tray Machine / Paper Molding Machine Energy - Efficient Large Capacity Pulp Tray Machine / Paper Molding Machine Energy - Efficient Large Capacity Pulp Tray Machine / Paper Molding Machine Energy - Efficient

Large Image :  Large Capacity Pulp Tray Machine / Paper Molding Machine Energy - Efficient

Product Details:

Place of Origin: CHINA
Brand Name: HONGRUN
Certification: ISO9001, CE, SGS, BV, TUV
Model Number: HRZ-6000M

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Standard Export Packaging
Delivery Time: About 75 days
Payment Terms: T/T, L/C
Supply Ability: 100SETS PER YEAR
Detailed Product Description
Voltage: 220V/380V Product Type: Egg Tray Machine
Warranty: One Year Condition: New
Processing Type: Pulp Molding Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas
Color: Customized Color Raw Material: Recycled Paper
Finished Products: Egg Tray /wine Tray/yogurt Tray /fruit Tray/egg Box Ect. Type: Full Automatic Rotary Type
High Light:

pulp egg tray making machine

,

pulp molding equipment

Large Capacity Paper Product Molding Machine For Pulp Egg Tray Machine



Egg tray forming machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. After such working procedure as transferring moulds, releasing moulds to complete paper tray production. Our forming machines adopt advanced PLC programmable controller; selecting of high quality electronic devices and pneumatic components; using stainless steel pulp barrels with high performance and long service life.



PRODUCT DESCRIPTION

Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place Of Origin: Shandong, China
Approval: CE
Warranty: 12 Monthes
Rotary: 8 Faces
Forming Platen Size:  2350 x 420 mm
Capacity: 6000 pcs/hr (30-egg tray)
Matches with 6-layer dryer, energy-efficient and conserve energy
Full automatic egg box production line equipped with automatic hot pressing and intelligent conveying stacking technology.
Mainly applied for egg tray, egg carton, fruit tray, cup carrier, bottle tray, etc.

Large Capacity Pulp Tray Machine / Paper Molding Machine Energy - Efficient 0

Our egg tray machine has four parts: Pulping system, forming system, drying line and packing part



(1)Pulping system:

Pulping system is mainly comprised of hydrapulpter, pulp pump, multi-function refiner machine, blender, control cabinet,etc.

It can make the pulp by the waste paper. And it is the first step in making process!



(2)Forming system:

This part mainly is the egg tray forming machine. We could produce the forming mould and transferring mould based on our customer's request. The material of the mould could be Aluminum, Resin, Plastic.



(3)Drying line

This is very important in all of the lines. When the egg tray is made over by the forming machine, the egg tray will be put on the drying line, they will across the drying channel, then you can get the dry tray!



(4)Packing machine

This is the last step when we get the finished tray from the drying line, we can packing them.



If you want to buy the best egg tray machine or pulp molding machine, please contact me! I can help you!

Technical data

Item Information Notes
Output Range 6000pcs/h 30 packed egg tray(60~80g)
Workshop recommendation ≥600m2

Length≥40m;Width≥15m;Height≥6m;

(It could be adjusted according to the user's existing workshop)

Type of Material Waste paper

Newspaper/Carton /Paper box/Books/

Corrugated paper/Kraft paper etc.

Material consumption 360~480kg/h 30 packed egg tray(60~80g)
Water consumption 800-1050kg/h 30 packed egg tray(60~80g)
Electricity consumption 140-175kw/h Full throttle operation

Fuel consumption

(approximately)

LPG 55~70 kg/h

30 packed egg tray(60~80g)

Choose one from these types of fuel

Natural gas 85~100 m3/h
Diesel 65~80kg/h
Operator Required 5~8 person/shift 24hours, 3shift
Container requirement for Transport 5 of 40 HQ container + 1 of 20’GP container Whole production line



Production flow chart

Large Capacity Pulp Tray Machine / Paper Molding Machine Energy - Efficient 1



Mold pictures

Large Capacity Pulp Tray Machine / Paper Molding Machine Energy - Efficient 2

Large Capacity Pulp Tray Machine / Paper Molding Machine Energy - Efficient 3



ADVANTAGE

1. High efficiency,low energy consume,low noise



2. Easy to operate, low labor force cost,large output



3. Stable final product quality(same weight,dimension,good look)



4. Professional technical support,superior after-sales service



5. Medium investment,high profit



6. optional color



7. excellent after-sales service



Packing & Delivery

Large Capacity Pulp Tray Machine / Paper Molding Machine Energy - Efficient 4
