Rotational Egg Box Machine / Waste Paper Egg Tray Molding Machine

Rotational Egg Box Machine / Waste Paper Egg Tray Molding Machine
Rotational Egg Box Machine / Waste Paper Egg Tray Molding Machine Rotational Egg Box Machine / Waste Paper Egg Tray Molding Machine Rotational Egg Box Machine / Waste Paper Egg Tray Molding Machine Rotational Egg Box Machine / Waste Paper Egg Tray Molding Machine

Large Image :  Rotational Egg Box Machine / Waste Paper Egg Tray Molding Machine

Product Details:

Place of Origin: CHINA
Brand Name: HONGRUN
Certification: ISO9001, CE, SGS, BV, TUV
Model Number: HRZ-6000M

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Standard Export Packaging
Delivery Time: 80days
Payment Terms: T/T, L/C
Supply Ability: 100SETS PER YEAR
Detailed Product Description
Processing Type: Pulp Molding Machine Product Type: Egg Tray Machine
Finished Products: Fruit Tray,Egg Tray Egg Carton,coffee Tray,wine Tray Fuel: Diesel,Natural Gas,Heavy Oil,LPG
After-sales Service Provided: Engineers Available To Service Machinery Overseas Voltage: 220V50HZ/380V50HZ
High Light:

pulp egg tray machine

,

fully automatic egg tray machine

Waste Paper Egg Tray Molding Machine Rotational Egg Box Machine



The project uses waste paper, waste paper as raw material to produce egg tray. This section consists of four parts production line(That pulping system, molding system, packaging systems) ; The following is the name of the individual equipment, Brief specifications and equipped with a motor, etc.)

The production line is mainly combined with THREE PARTS:



1. Pulping system

(meaning: Use waste paper and water as raw material and pulp up) ;



2. Forming system

(meaning: The pulped material being delivered to Egg tray molds, and forming to the Egg tray plate shape) ;



3. Drying system

(Meaning: The formed Egg tray plate being delivered to Dryer, and come up to Completed Strong Egg tray plate) .

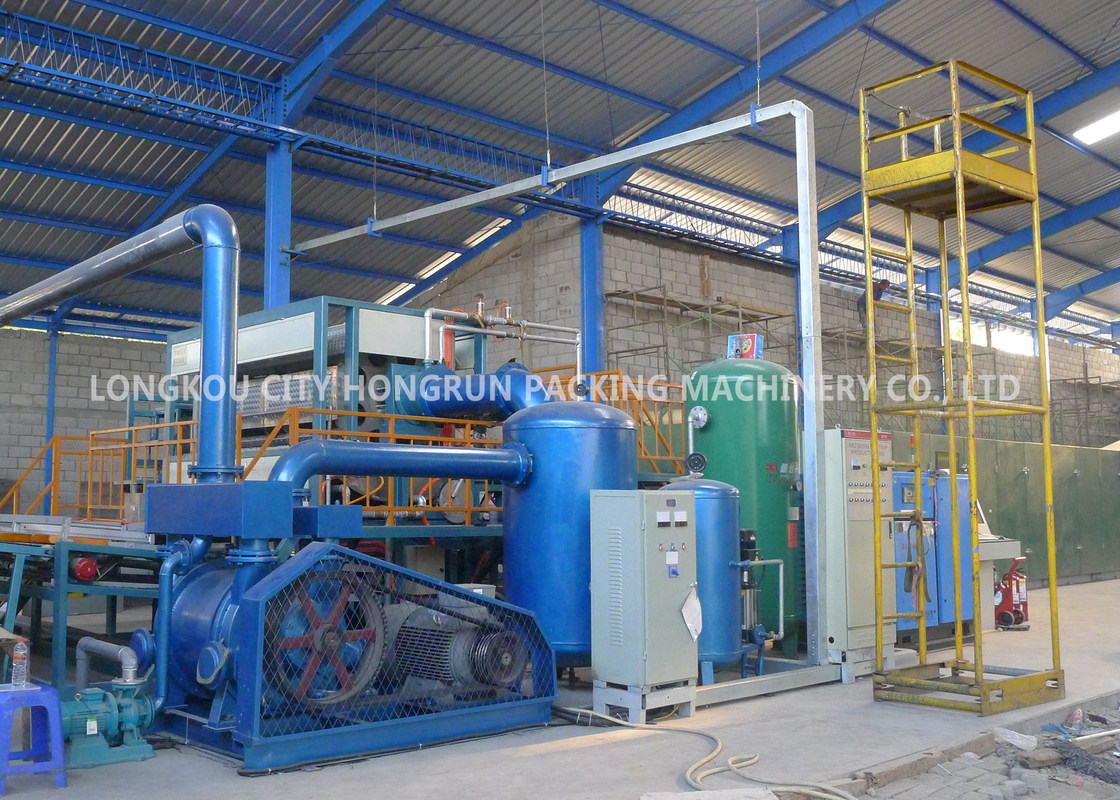

Rotational Egg Box Machine / Waste Paper Egg Tray Molding Machine 0

Rotational Egg Box Machine / Waste Paper Egg Tray Molding Machine 1

Working principle of egg tray forming machine:

Water paper and water added into the pulper, then delivered to the slurry storage tank, using blender to stirring pulp uniform and delivered to the slurry tank, stirring the pulp to a certain concentration delivered to the molding machine, producing the egg tray, then transport to the drying hole by conveyor belt, after the egg tray drying, finally closed care and package it.

Application

The tray of eggs, paper pulp egg holder, quail egg boxes, eggs in a box, egg crate, egg tray, egg container, egg cartons for
sale, chicken egg holder etc.

Egg tray 20, 30, 40 packed egg tray… quail egg tray
Egg carton 4, 6, 9, 10, 12, 15, 18, 24 packed egg carton…
Agricultural products Fruit tray, seeding cup
Cup salver 2, 4 cup salver
Disposable Medical Care Products Bedpan, sick pad, female urinal…
Packages Shoe tree, industrial package…



Specification of egg box machine

Item Information Notes
Output Range 6000pcs/h 30 packed egg tray(60~80g)
Workshop recommendation ≥600m2

Length≥40m;Width≥15m;Height≥6m;

(It could be adjusted according to the user's existing workshop)

Type of Material Waste paper

Newspaper/Carton /Paper box/Books/

Corrugated paper/Kraft paper etc.

Material consumption 360~480kg/h 30 packed egg tray(60~80g)
Water consumption 800-1050kg/h 30 packed egg tray(60~80g)
Electricity consumption 140-175kw/h Full throttle operation

Fuel consumption

(approximately)

LPG 55~70 kg/h

30 packed egg tray(60~80g)

Choose one from these types of fuel

Natural gas 85~100 m3/h
Diesel 65~80kg/h
Operator Required 5~8 person/shift 24hours, 3shift
Container requirement for Transport 5 of 40 HQ container + 1 of 20’GP container Whole production line



Packing & Delivery

Rotational Egg Box Machine / Waste Paper Egg Tray Molding Machine 2

Rotational Egg Box Machine / Waste Paper Egg Tray Molding Machine 3
