Waste Paper Moulding Pulp Egg Tray Making Machine / Fruit Tray Machine

Waste Paper Moulding Pulp Egg Tray Making Machine / Fruit Tray Machine
Waste Paper Moulding Pulp Egg Tray Making Machine / Fruit Tray Machine Waste Paper Moulding Pulp Egg Tray Making Machine / Fruit Tray Machine Waste Paper Moulding Pulp Egg Tray Making Machine / Fruit Tray Machine

Large Image :  Waste Paper Moulding Pulp Egg Tray Making Machine / Fruit Tray Machine

Product Details:

Place of Origin: CHINA
Brand Name: HONGRUN
Certification: ISO9001, CE, SGS, BV, TUV
Model Number: HRZ-4000M

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Standard Export Packaging
Delivery Time: About 75 days
Payment Terms: T/T, L/C
Supply Ability: 100SETS PER YEAR
Detailed Product Description
Voltage: 220V50HZ/380V50HZ Power(w): 104KW
Condition: New Warranty: 12 Months
Processing Type: Pulp Molding Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas
Color: Optional Finished Products: Egg Tray /wine Tray/yogurt Tray /fruit Tray/egg Box Ect.
Type: Full Automatic Rotary Type Capacity: 4000pcs/hr
Raw Material: Recycled Paper Fuel Type: Gas Or Oil
Drying Type: Metal Multi-layer Dryer
High Light:

pulp egg tray making machine

,

pulp molding equipment

Waste Paper Moulding Pulp Egg Tray Making Machine Fruit Tray Machine





Egg Tray Machine (pulp moulding machine) consume used waste paper as raw material and produce different kinds of paper tray according to your requirement, such as egg tray/dishes ,egg carton/box,fruit tray,industrial package tray,seeding tray ,win tray ,shoe support and small products packages ,etc. The different final products are decided by your market choice.



We give the solution of the pulp moulding line as follows:

Paper Pulp Making System

Hydro-pulper,Vibra sieve machine,White water pump,

pulp pump,Blender,Pulp making system

Tray Moulding System

Rotary Molding Machine ,Forming Mold,Unloding Mold,

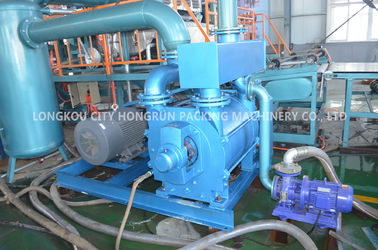

Vacuum Pump,Air Compressor,Autospray,Vacuum Tank,Wate

Drying System

Metal drying crust,Blower,Burner,Wet exhauster,Sheet Conveyer,

Conveyer front driver,Conveyer rear driver,Packer machine



Technology Parameter



Item Information Notes
Output Range 4000pcs/h 30 packed egg tray(60~80g)
Workshop recommendation >=525m2

Length>=35m;width>=15m;height>=6m;

(It could be adjusted according to the user's existing workshop)

Type of Material Waster paper

News paper/Carton /Paper box/Books/

Corrugated paper etc.

Material consumption 250~280kg/h 30 packed egg tray (65~70g)
Water consumption 650-1000kg/h 30 packed egg tray (65~70g)
Electricity consumption 110kw Full throttle operation

Fuel consumption

(approximately)

LPG 25~32M3/h Choose one from the three types of fuel
natural gas 75~95 M3/h
diesel 60~80kg/h
Operator Required 4~6 people/shift 24 hours ,3 shift
Container requirement for Transport 4 of 40’HQ container Whole production line



Working Flow

Waste Paper Moulding Pulp Egg Tray Making Machine / Fruit Tray Machine 0



Advantage:

1. High automation, low labor required


2.Low production cost


3.Energy saving (by 20%-30% compared with other factories)


4.Water saving (complete water treatment system equipped)


5.Efficient Multilayer dryer, saving space (by 30% compared with traditional dryer)


6.Stable final product quality (same Model, same dimension, strong & good looking)



Our company also offers other models



For 30-cell egg tray as the example:
Model Throughput Drying System Workshop Space Rated Power
HR-1000S 1000pcs/h Single-Layer Metal 40m*10m*6m 88KW
HR-1500S 1500pcs/h Single-Layer Metal 42m*10m*6m 122KW
HRZ-2000M 2000pcs/h Multi Layers Mental 30m*10m*6m 160KW
HRZ-3000M 3000pcs/h Multi Layers Mental 30m*10m*6m 187KW
HRZ-4000M 4000pcs/h Multi Layers Mental 35m*10m*6m 206KW
HRZ-6000M 6000pcs/h Multi Layers Mental 38m*15m*6m 327KW
HRP-8000M 8000pcs/h Multi Layers Mental 35m*20m*6m 470KW
HRD-12000M 12000pcs/h Multi Layers Mental 45m*20m*8m 477KW
ž Exact data are subject to final contract.
