| Condition: | New | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 220V/380V |
| Power(w): | 200KW | Product Type: | Egg Tray Machine,Egg Box Machine |
| Capacity: | 6000-6500pcs/hr | Raw Material: | Waste Paper,Carton And Newspaper |
| Finished Products: | Coffee Tray,Egg Tray Egg Carton'/egg Plate/egg Box,wine Tray | Fuel: | Diesel,Natural Gas,Heavy Oil,LPG,Oil/gas/electric/diesel/as Your Request |
| Color: | Customized Color | ||
| High Light: | paper tray making machine,automatic egg tray making machine |
||
Recycling Waste Paper Egg tray Making Machine Pulp Molding Machine
Egg tray machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. After such a working procedure as transferring moulds, releasing moulds to complete paper tray production. Our forming machines selecting high quality electronic devices and pneumatic components, high performance and long service life.
There are various types and output of egg tray making machines that can be supplied by our company, such as 1000pcs per hour, 2000pcs per hour,3000pcs per hour, 4000pcs per hour, 5000pcs per hour, 6000pcs per hour and so on. You only can tell me what capacity machine do you want,our professional engineer will design the most suitable machine for you!
HRZ-6000M rotary type automatic paper pulp molding production line system basic constitution
The HRZ-6000M rotary type automatic paper pulp molding production line constituted by five large-scale systems:
(1) Pulping system

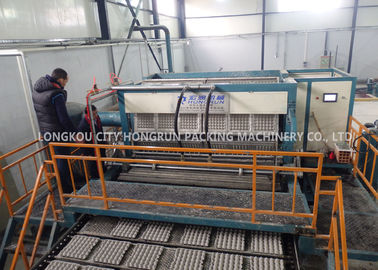

(2) Forming machine

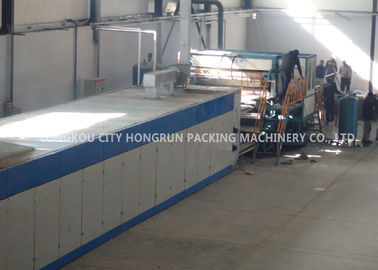

(3) Drying system
(4) Finished products automatic stacking, collection and manual packing system
(5) Electricity control system
Specifications&Advantages
| Item | Information | Notes |
| Output Range | 6000pcs/h | 30 packed egg tray(60~80g) |
| Workshop recommendation | ≥600m2 |
Length≥40m;Width≥15m;Height≥6m; (It could be adjusted according to the user's existing workshop) |
| Type of Material | Waste paper |
Newspaper/Carton /Paper box/Books/ Corrugated paper/Kraft paper etc. |
| Material consumption | 360~480kg/h | 30 packed egg tray(60~80g) |
| Water consumption | 800-1050kg/h | 30 packed egg tray(60~80g) |
| Electricity consumption | 140-175kw/h | Full throttle operation |
|
Fuel consumption (approximately) |
LPG 55~70 kg/h |
30 packed egg tray(60~80g) Choose one from these types of fuel |
| Natural gas 85~100 m3/h | ||
| Diesel 65~80kg/h | ||
| Operator Required | 5~8 person/shift | 24hours, 3shift |
| Container requirement for Transport | 5 of 40 HQ container + 1 of 20’GP container | Whole production line |
1.High production
2.Easy to install and operate
3.Rugged construction
4.Heat resistance
5.Competitive price
6.Green:No waste paper emission
7.Stable final product quality(Good&strong look, same weight and size)
8.Space saving & low investment
9.Best pre-sale, in-sale and after-sale service.
Production flow chart
Application
The tray of eggs, paper pulp egg holder, quail egg boxes, eggs in a box, egg crate, egg tray, egg container, egg cartons for
sale, chicken egg holder etc.
| Egg tray | 20, 30, 40 packed egg tray… quail egg tray |
| Egg carton | 4, 6, 9, 10, 12, 15, 18, 24 packed egg carton… |
| Agricultural products | Fruit tray, seeding cup |
| Cup salver | 2, 4 cup salver |
| Disposable Medical Care Products | Bedpan, sick pad, female urinal… |
| Packages | Shoe tree, industrial package… |
