Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Voltage: | 220V/380V |
---|---|---|---|
Condition: | New | Product Type: | Egg Tray Machine |
Finished Products: | Egg Tray Egg Carton,fruit Tray,bottle Tray,shoe Tray,wine Tray | Type: | Rotaty Drum |
Highlight: | egg carton making machine,egg carton production line |
Automatic Paper Pulp Egg Carton Tray Making Machine 2000 - 2200PCS / H
1. Description
Egg carton machine mainly uses waste paper, waste carton as raw materials. By smash pulp, vibrating pulp, grinding pulp and forming pulp, the forming machine adsorbs the pulp by vacuum type with some necessary chemicals. The equipment also can produce the followings: package for glass and ceramics, crafts, small machinery, electric products, toys and so on. The paper carton can replace the plastic bag and corrugated paper. And they not only have the protection, cushion performance, make less damage, improve the package figure, but also can saving cost, protect the environment and can be recycled use. They are the typical product in the green package storm.
2. Features
01 Full automatic running according to setting
02 The global famous brand of electric parts make stable running
03 Optimized design with new technology, leading to high efficiency
04 Perfect malfunction checkout system and motor protecting system guarantee safe running.
3. Finished products
4. Knowledge Note of Egg carton machine
Item of Egg carton machine | Introduce of Egg carton machine |
Pulping system | Pulper, Grinding Machine, Mixer, Stuff Pump, Water Pump, Control Cabinet, etc. |

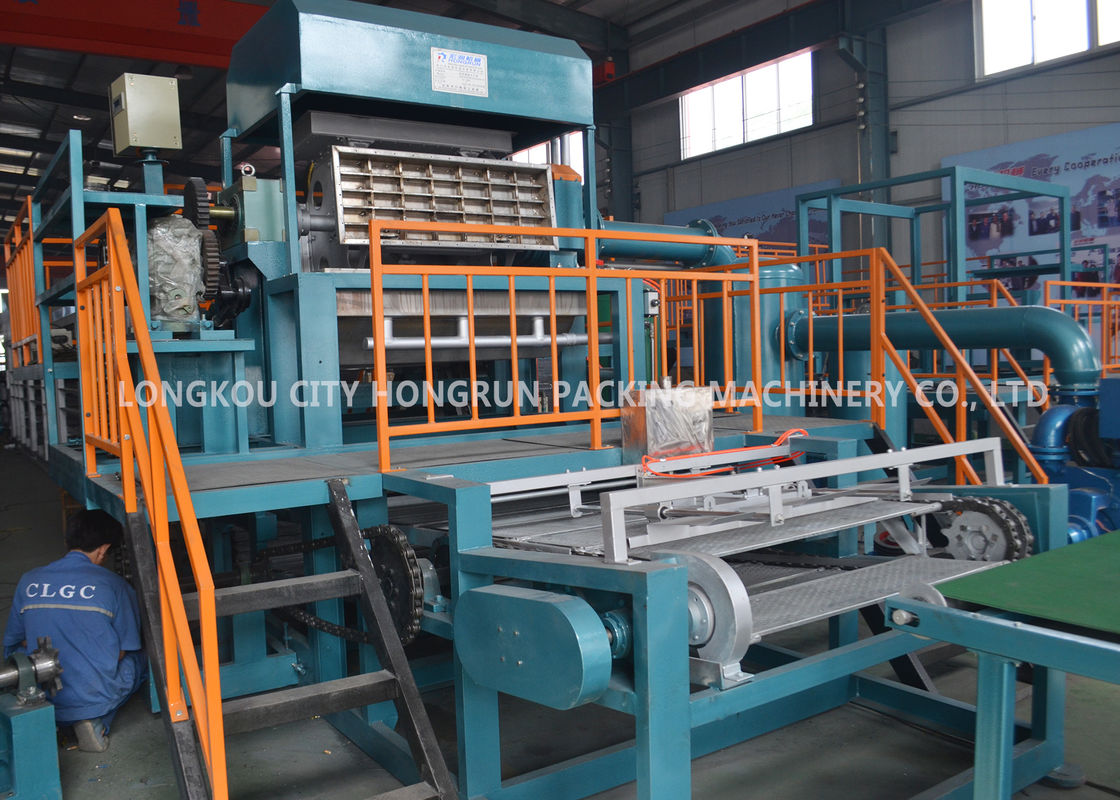

Forming System |
This equipment consists of 8 forming pattern plates and 1 transfer plate. The size of each plate is 1470mm×470mm and each plate can carry 4 sets of 30pcs egg tray mold, totally 32 sets. The molding efficiency is 13-15 plates/minutes. It is equipped with the automatic vacuum drainage system, automatic plate washing system, pre-drying system, and automatic control cabinet.
|

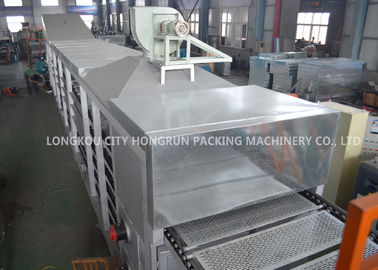

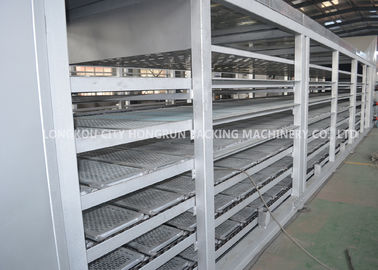

Drying System | There are 2 kinds of the drying system. One is metal, the other is civil engineering. The conveyor plate can be one layer and multi-layer, direct combustion hot air circulation. Using the imported or joint venture brand burner |
5. Technical data
Item | Information | Notes |
Output Range | 2000pcs/h | 30 packed egg tray(60~80g) |
Workshop recommendation | ≥480m2 |
Length≥32m;Width≥15m;Height≥6m; (It could be adjusted according to the user's existing workshop) |
Type of Material | Waste paper |
Newspaper/Carton /Paper box/Books/ Corrugated paper etc. |
Material consumption | 120~160kg/h | 30 packed egg tray(60~80g) |
Water consumption | 265-350kg/h | 30 packed egg tray(60~80g) |
Electricity consumption | 70-90kw | Full throttle operation |
Fuel consumption (approximately) |
LPG 30~40 kg/h | Choose one from the three types of fuel |
Natural gas 35~50 m3/h | ||
Diesel 30~40 kg/h | ||
Operator Required | 4~6 people/shift | 24hours, 3shift |
Container requirement for Transport |
2 of 40’HQ container + 1 of 20’GP container |

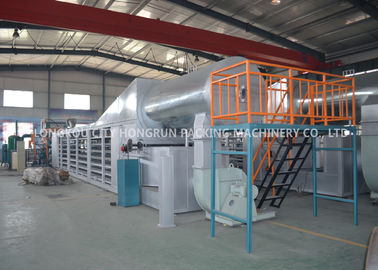

Whole production line |
