Automated Pulp Molding Machine For Egg Carton / Apple Tray Making

China Longkou City Hongrun Packing Machinery Co., Ltd. certification
China Longkou City Hongrun Packing Machinery Co., Ltd. certification
We hope Hongrun company could have a good beginning in business, and we will keep a long-term cooperation with your company.

—— Sukhraj

Your goods are superior in quality compared with those of other manufacturers. We always have faith in the quality of your products.

—— REMESH

I'm Online Chat Now

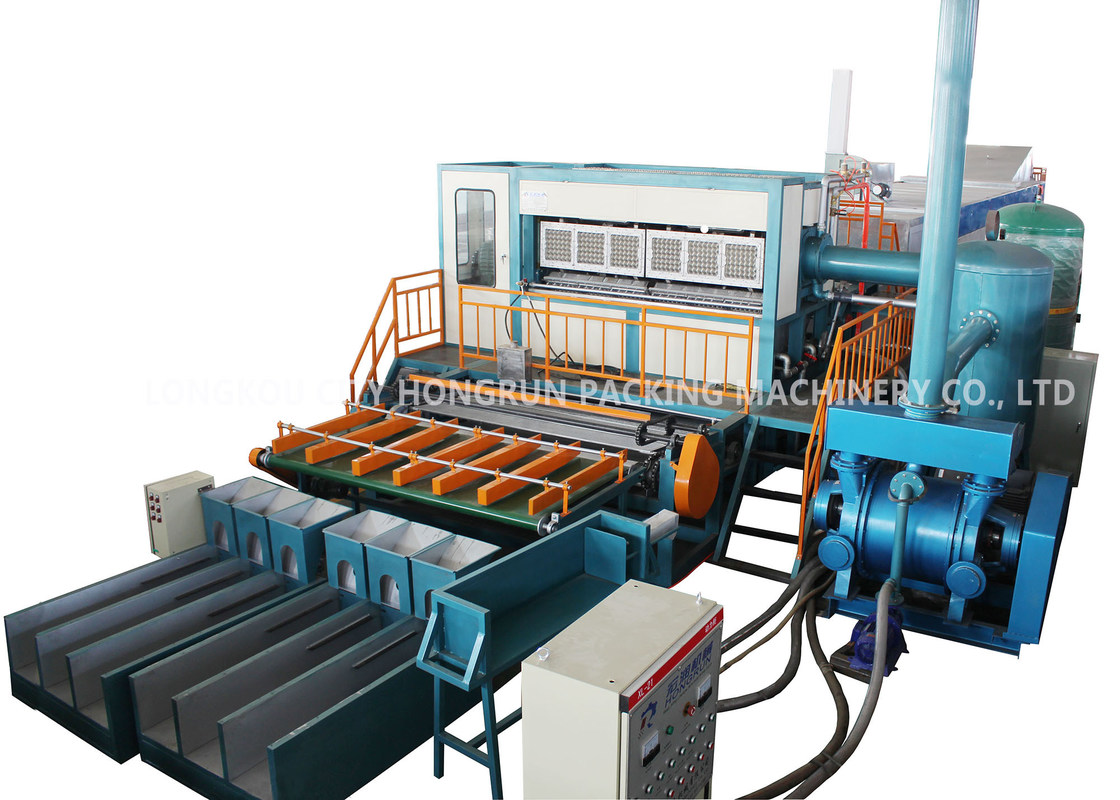

Automated Pulp Molding Machine For Egg Carton / Apple Tray Making

Automated Pulp Molding Machine For Egg Carton / Apple Tray Making
Automated Pulp Molding Machine For Egg Carton / Apple Tray Making Automated Pulp Molding Machine For Egg Carton / Apple Tray Making Automated Pulp Molding Machine For Egg Carton / Apple Tray Making

Large Image :  Automated Pulp Molding Machine For Egg Carton / Apple Tray Making

Product Details:

Place of Origin: CHINA
Brand Name: HONGRUN
Certification: ISO9001, CE, SGS, BV, TUV
Model Number: HRZ-6000M
Voltage: 220V/380V
Product type: Product type
After-sales service provided: Engineers available to service machinery overseas
Type: automatic
Dryer length: 23.7m

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Standard Export Packaging
Delivery Time: 80 days
Payment Terms: T/T, L/C
Supply Ability: 100SETS PER YEAR
Detailed Product Description
Condition: New Weight: 45T
Warranty: 1 Year Processing Type: Pulp Molding Machine
Power(w): 163KW Color: Customized Color
Name: Automatic Pulp Molding Machine Make Egg Tray / Carton Apple Tray Finished Products: Egg Tray Egg Carton,Paper Egg Tray Etc,cup Carrier,egg Carton Box,fruit Tray
Function: Making Paper Egg Tray
High Light:

apple tray making machine

,

egg tray manufacturing machine

Automatic Pulp Molding Machine Make Egg tray / Carton Apple Tray



Machine for make paper egg tray, egg tray making machine, egg tray machine, paper tray machine.pulp molding machine

The quality of our egg tray making machines is superior to that of other suppliers, and our prices are lower than theirs.



Egg tray forming machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mold by vacuum to get various shape and ratio of wet and dry by regulating time. After such a working procedure as transferring molds, releasing moulds to complete paper tray production. Our forming machines adopt advanced PLC programmable controller; selecting high-quality electronic devices and pneumatic components; using stainless steel pulp barrels with high performance and long service life.



Our egg tray machine has four parts:Pulping system,forming system,drying line and packing part

(1)Pulping system:

Pulping system is mainly comprised of hydrapulpter, pulp pump, multi-function refiner machine, blender, control cabinert,ect.

It can make the pulp by the waste paper. And it is the first step in making process!



(2)Forming system:

This part mainly is the egg tray forming machine.We could produce the forming mould and transfering mould based on our customers request.The material of the mould could be Alumminum,Resin,Plastic.



(3)Drying line

This is the very important in the all of line. When the egg tray be made over by the forming machine, the egg tray will be put on the drying line,they will across the drying channel, then you can get the dry tray!



(4)Packing machine

This is the last step, when we get the finished tray from the drying line, we can packing them.



If you want to buy the best egg tray machine or pulp molding machine, please contact with me!I can help you!



Flow chart

Automated Pulp Molding Machine For Egg Carton / Apple Tray Making 0



Automated Pulp Molding Machine For Egg Carton / Apple Tray Making 1

Characteristics of our machine:

1. Automation equipment, reducing labor costs.
2.Environmental protection, low production cost.
3. Energy saving,Water saving.
4. Stable final product quality,same weight, same dimention,strong and good appearance.
5.The same equipment, replacement mold, can produce a variety of paper tray products,a multi-purpose machine, can meet different markets demand.

Technical data



Item Information Notes
Output Range 6000pcs/h 30 packed egg tray(60~80g)
Workshop recommendation ≥600m2

Length≥40m;Width≥15m;Height≥6m;

(It could be adjusted according to the user's existing workshop)

Type of Material Waste paper

Newspaper/Carton /Paper box/Books/

Corrugated paper/Kraft paper etc.

Material consumption 360~480kg/h 30 packed egg tray(60~80g)
Water consumption 800-1050kg/h 30 packed egg tray(60~80g)
Electricity consumption 140-175kw/h Full throttle operation

Fuel consumption

(approximately)

LPG 55~70 kg/h

30 packed egg tray(60~80g)

Choose one from these types of fuel

Natural gas 85~100 m3/h
Diesel 65~80kg/h
Operator Required 5~8 person/shift 24hours, 3shift
Container requirement for Transport 5 of 40 HQ container + 1 of 20’GP container Whole production line



FAQ

Q:How to choose a suitable egg tray making machine and production lines?
A:Just need tell us your requirement.We will make a good production plan according to your requirements.
Q:Do you provide sample service?
A:We can send you paper samples, which is produced by our machine.
You also can send us the paper sample that you want to produce by DHL, etc.We will design according to your paper samples.
Q:What is the raw material of egg tray making machine?
A:Waste paper,Cardboard,Magazine,Newspaper,ect.
Q:Can you offer technician aboard for training workers?
A:Yes, we have team for installation guidance aboard, technicians will be sent for installation guidance and training workers.
Q: What's the guarantee for the egg tray machine and equipment?
A: Usually the forming machine guarantee is one year, and motors guarantee is half of an year.
