CE Approved Fast Food Box Machine / Automatic PS Foam Box Forming Machine

China Longkou City Hongrun Packing Machinery Co., Ltd. certification
China Longkou City Hongrun Packing Machinery Co., Ltd. certification
We hope Hongrun company could have a good beginning in business, and we will keep a long-term cooperation with your company.

—— Sukhraj

Your goods are superior in quality compared with those of other manufacturers. We always have faith in the quality of your products.

—— REMESH

I'm Online Chat Now

CE Approved Fast Food Box Machine / Automatic PS Foam Box Forming Machine

CE Approved Fast Food Box Machine / Automatic PS Foam Box Forming Machine
CE Approved Fast Food Box Machine / Automatic PS Foam Box Forming Machine CE Approved Fast Food Box Machine / Automatic PS Foam Box Forming Machine CE Approved Fast Food Box Machine / Automatic PS Foam Box Forming Machine CE Approved Fast Food Box Machine / Automatic PS Foam Box Forming Machine CE Approved Fast Food Box Machine / Automatic PS Foam Box Forming Machine

Large Image :  CE Approved Fast Food Box Machine / Automatic PS Foam Box Forming Machine

Product Details:

Place of Origin: CHINA
Brand Name: HONGRUN
Certification: ISO9001, CE, SGS, BV, TUV
Model Number: HR-L1080
Plastic Processed: PS
Automatic Grade: Automatic
Screw Design: Double-screw
Power: 145KW
Dimension: 23*2.3*2.2M

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Standard Export Packaging
Delivery Time: About 90 days
Payment Terms: T/T, L/C
Supply Ability: 100SETS PER YEAR
Detailed Product Description
Forming Area: 1000*1250 Max. Forming Depth: 80mm
Output: 150-200kg/h Width Of Sheet: 1080mm
Thickness Of Product: 1.0-4.0mm Cooling Mode: Cooling By Wind And Water
Screw Diameter: Φ105/120mm Production Efficiency: 14-17cycles/min
Highlight:

disposable food container making machine

,

disposable lunch box making machine

CE Approved Automatic Foam Box Forming Machine PS Food Box Production Line



Product Application

PS disposable take away food box making machine , which can form lunch box from raw material. The material is recycled. The work flow is as follows: raw material---(PS foam sheet extrusion line)---foam sheet---(lunch box forming machine and cutting machine)---lunch box---(plastic recycle machine)---plastic granulars( this part can be used as raw material)----foam sheet.

CE Approved Fast Food Box Machine / Automatic PS Foam Box Forming Machine 0

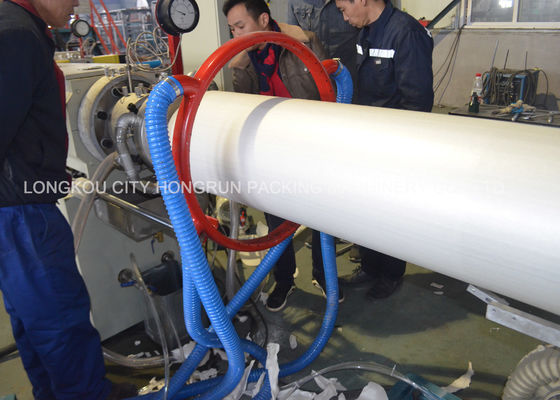

1. PS foam sheet extruder machine

CE Approved Fast Food Box Machine / Automatic PS Foam Box Forming Machine 1

PS foam sheet extruder machine uses a tandem screw technology to produce fine-block cell-structured extruded polystyrene foam sheet with high strength and a pearl and even surface, in a continuous roll, from polystyrene injection an eco-friendly blowing gas and additives. It has a user friendly operating system with inverter controlled driving, digital temperature control and so on. It produce PS foam sheet, which is a kind of new-type packing with the features of shock proofing, sound insulating, heat preservation, damp proof, safety, and good plasticity. It is used widely in the packing of food, fruit, electronic product, daily necessities, hardware product, advertisement plate, etc.



Technical data

Item Unit Parameter
Model   105/120
Applicable materials   GPPS granule(123P/525)
Thickness of sheet mm 1-3.5
Width of sheet mm 540~1080
Foaming rate   12-20
Weight of product kg/m³ 50~83
Output kg/h 150~200
Rated power(approximately) KW 180
Power supply   Three phase 380V/50Hz
External dimension mm 24000×4100×2800
Complete weight Ton About12



2.Fully Automatic Robot Arm Vacuum Forming Cutting And Stacking Machine.

CE Approved Fast Food Box Machine / Automatic PS Foam Box Forming Machine 2

PS disposable foam food container/plate/dish/tray/bowl/box making machine makes different kinds type of fast food box, foam tray, foam plate, foam container and so on. If so, you need many moulds.
This type of developed by combining the domestic equipment and advantages, is a set of hydraulic pneumatic servo drive for an automatic forming cutting seek. Mainly by electrical components, Japan and Germany pump, ensure the reliability of the equipment operation, and can be used for hot forming process many kinds of plastic material, it can produce PS packaging products, materials used in food, medical supplies, electrical components, tourism products, toys, textile, etc.
The biggest advantage is forming cutting integration, reduce work link, produce the product directly, it can be collected in stacking area of work to save time, save the production base and greatly reduces the working intensity save artificially



Technical data



Item Unit Parameter
Model   HR-L1080
Power supply   Three phase 380V/50Hz
Production efficiency s/mold 2.8-5
Installed power (approximately) KW 250
Total weight (approximately) Ton 18
Mounting size m 14.2×5.8×3.14
Compressed air capacity m3/min 0.4~0.7
Compressed air pressure Mpa 0.7
Cooling water T/h 1

CE Approved Fast Food Box Machine / Automatic PS Foam Box Forming Machine 3

3. PS scrap recycling and pelletizing machine.

This recycling and pelletizing machine is designed to reclaim the foamed polystyrene andpolyethylene materials almost identically to new ones with its own superior filtering performance.
