After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Production Efficiency: | 2.8-5s/mould |
---|---|---|---|
Cooling Water: | 1t/hr | Compressed Air Capacity: | 0.4~0.7m3/mim |
Forming Area: | 1000*1100mm | Max. Forming Depth: | 80mm |
Product Type: | Fast Food Box | ||
High Light: | disposable food container making machine,disposable lunch box making machine |
Full Auotmatic PS Foam Container Making Machine / PS Fast Food Box Machine
PS Fast Food Box Machine including three main parts:

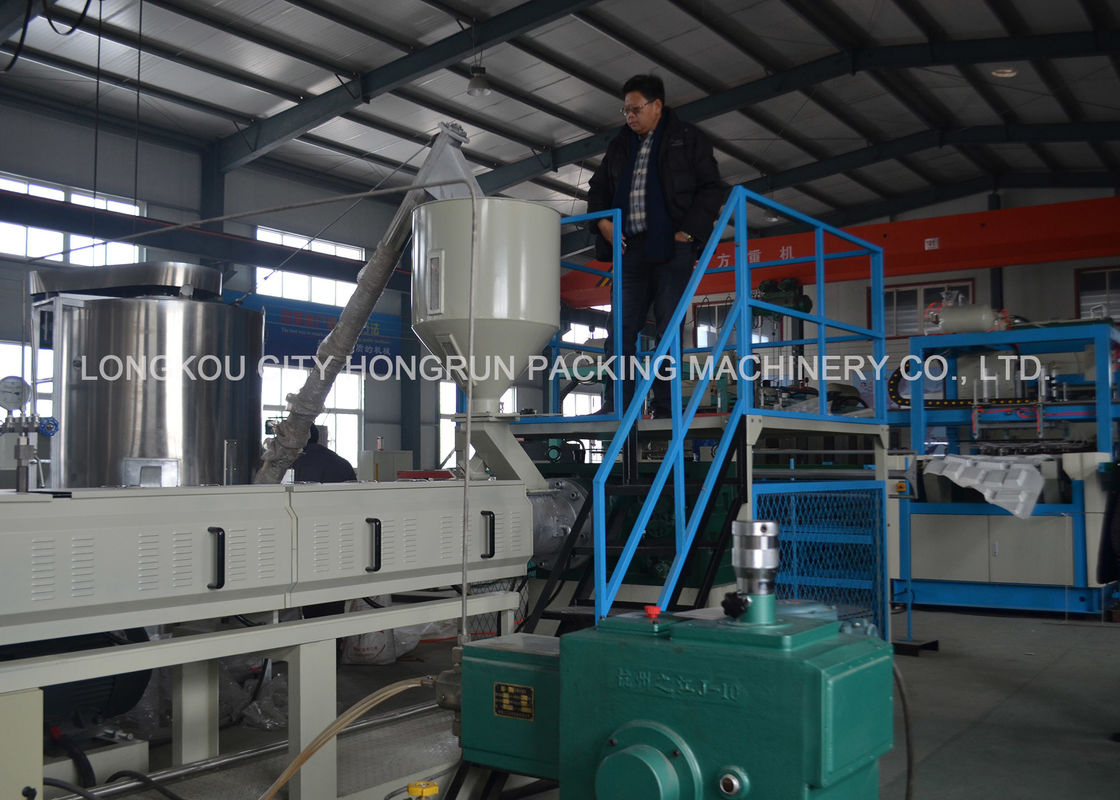

1. PS foam sheet extrusion line
This production line adopts double-screw foam sheet extrusion technology. PS foam sheet is a kind of new-type packing material with the features of heat preservation, safety, sanitation and good plasticity. It’s mainly used to make various types of food containers, such as lunch box, dinner trays, bowls etc. by thermoforming. It’s also can be used to make advertisement board, industrial products packing and so on. It has stable performance, big capacity, high automation and yields quality products.
Type | Unit | HR-75/90 | HR-105/120 | HR-120/150 | HR-180/200 |
Screw Diameter | MM | Φ75/90 | Φ105/120 | Φ120/150 | Φ180/200 |
Foam Rate | 20-30 | 20-30 | 20-30 | 20-30 | |
Width of Product | MM | 640-1040 | 640-1040 | 640-1040 | 1000-1350 |
Thickness of Product | MM | 1.0-2.0 | 1.0-4.0 | 2.0-5.0 | 2.0-5.0 |
Output | KG/H | 50-100 | 150-200 | 230-320 | 450-650 |
Cutting Mode | Single Cutting | Single Cutting | Single Cutting or Double Cutting | Single Cutting or Double Cutting | |
Cooling Mode | Cooling by Wind and Water | ||||
Mounted Power | KW | 140 | 200 | 260 | 400 |
Overall Size | M | 22*4.0*2.8 | 25*4.1*2.8 | 28*4.2*3.2 | 28*5.2*3.2 |
Total Weight | T | 9 | 10 | 12 | 23 |

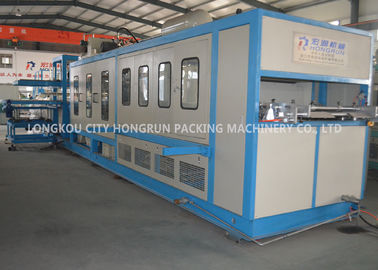

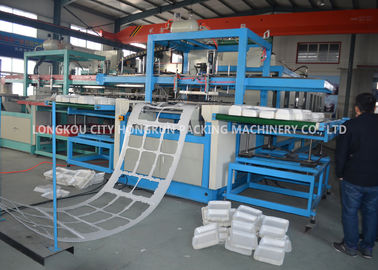

2. Automatic vacuum forming & cutting and stacking machine
This machine developed by combining the domestic and foreign equipment and advantages, is a set of hydraulic pneumatic servo drive for an automatic forming cutting stacking machine. The main electrical components, such as vacuum pump,PLC,made in Japan and Germany, ensure the reliability of the equipment operation, and can be used for hot forming process PS material which is used to produce different food container, such as lunch box, hamburger box, pizza box, bowl, plate, dish, etc. Forming, cutting, stacking is done in the same machine, saving labor, improving efficient, lowing labor intensity and reducing production cost.
Type | Unit | HR-S1080 | HR-M1080 | HR-L1080 | HR-X1080 |
Collection method | Slice/Stacking/Mechanical arm | ||||
Forming area | MM 2 |
750*1000
|
1000*1100 |
1100*1250
|
1100*1400 |
Max. forming depth | MM | 60 | 60 | 60 | 60 |
Production efficiency | mold/min | 14-17 | 14-17 | 14-17 | 14-17 |
Forming pressure | T | 80-90 | 80-90 | 80-90 | 80-90 |
Cutting pressure | T | 45-60 | 45-60 | 45-60 | 45-60 |
Installed power | KW | 170 | 170 | 200 | 200 |
Overall size | M | 17*9*2.5 | 20*10*2.5 | 20*10*2.5 | 20*10*2.5 |
Total weight | T | 11 | 12 | 13 | 15 |

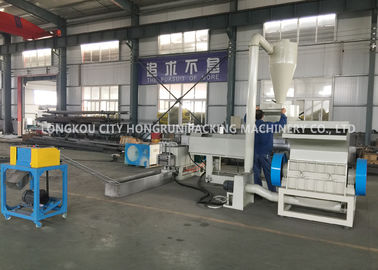

3. PS foam recycling and pelletizing machine
This machine is special for polystyrene. It adopts single screw, double stage plasticification, increasing compress ratio. The whole machine consists of crusher, main machine, cooling tank and granulator. It can recycle many foamed products, such as PS, XPS, and EPS etc.
Application
Packing & Delivery
